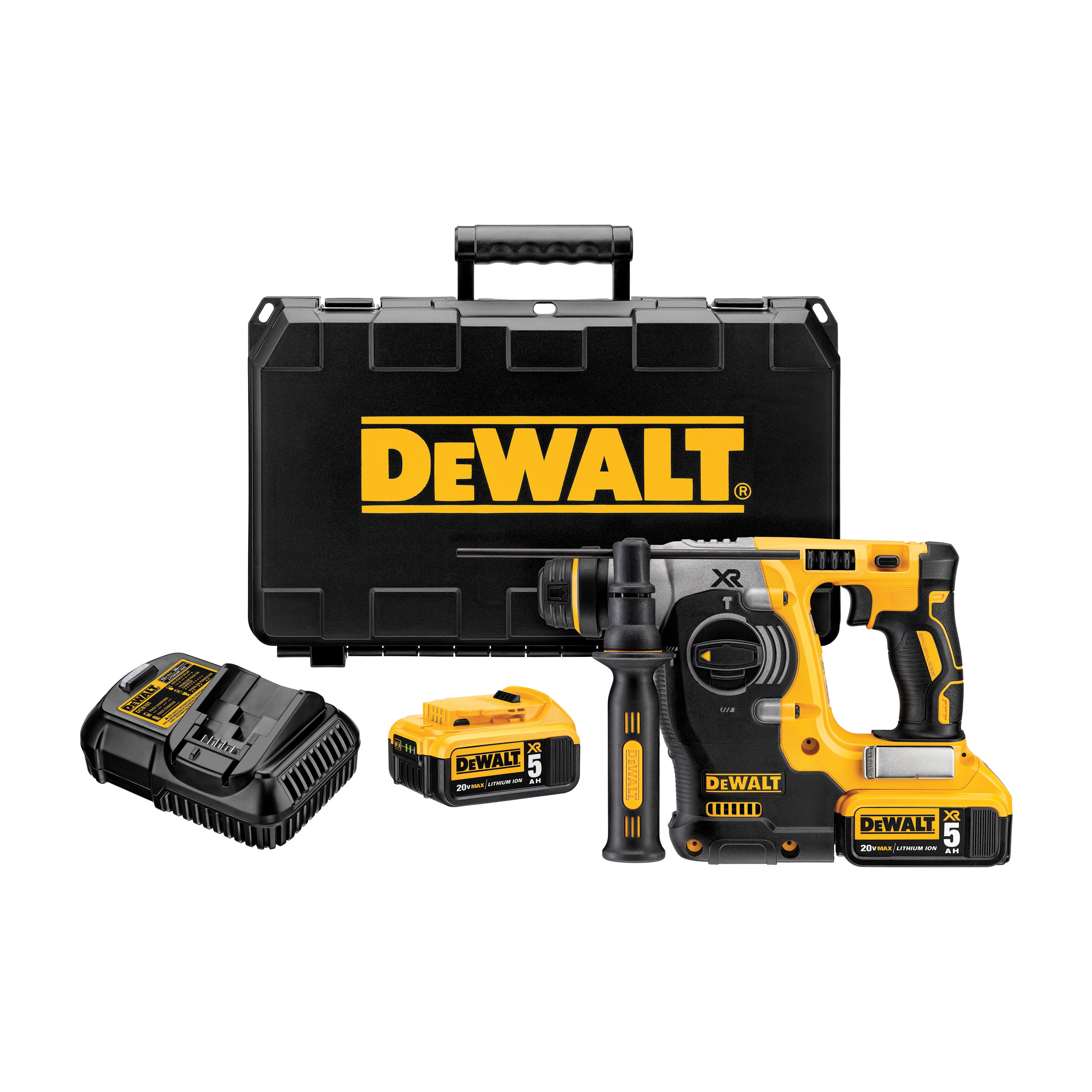

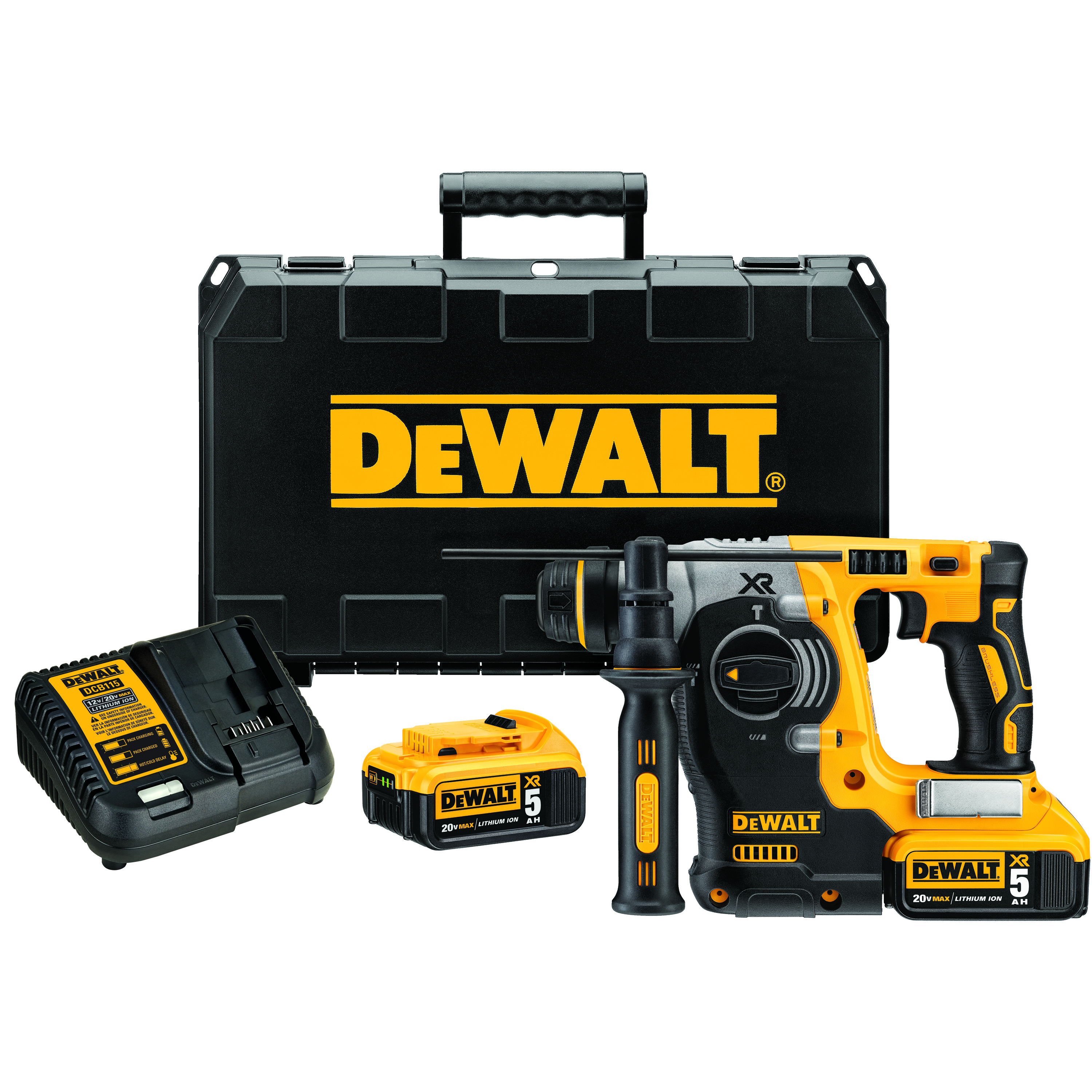

Black&Decker 20-VOLT 1" SDS-PLUS ROTOHAMMER KIT BD- DC-H-273-P-2

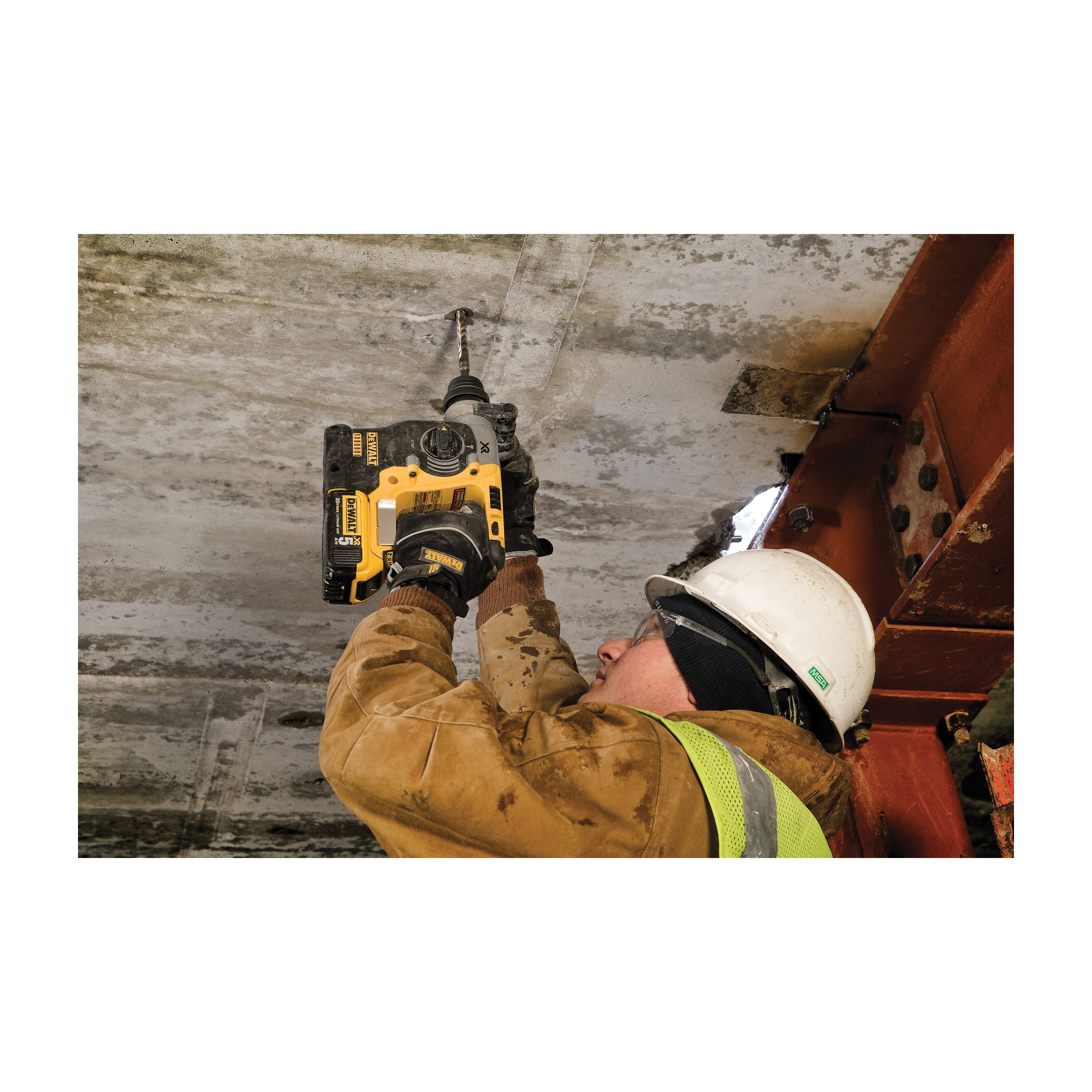

The DCH273P2 20V MAX XR® brushless 1 in rotary hammer is a high performance drill that is powered by a DeWALT® brushless motor and a durable German engineered mechanism that delivers 2.1 J of impact energy. Coupled with its lightweight design and SHOCKS® Active Vibration Control® technology, this hammer is ideal when used in overhead applications. The DCH273P2 is dust extraction ready for the D25303DH.
-
BrandDeWALT®
-
UPC885911396493
-
Manufacturer Part NumberDCH273P2
-
CountryUSA|Canada
-
Chuck Size1 in
-
Chuck TypeSDS Plus®
-
TypeHigh Performance
-
Handle TypeL-Handle
-
Voltage Rating20 V AC
-
Control TypeSHOCKS® Active Vibration
-
No-Load Speed0 to 1100 rpm
-
SeriesXR™
-
Housing MaterialPlastic
-
Impact Energy2.1 J
-
Bare Tool/KitKit
-
Battery Capacity5 Ah
-
Battery IncludedYes
-
Battery TypeLi-Ion
-
Dimensions13 in
-
Number of Speeds3
-
Blows per Minute0 to 4600 bpm
- Brushless motor for extended runtime and durability
- Retractable utility hook for convenient hanging
- SHOCKS™ - Active vibration Control® reduces vibration felt by the user at the handles
- Optimized ergonomic design provides exceptional overhead drilling experience
- Outstanding power-to-weight ratio, results in superior productivity
- 2.1 joules impact energy provides corded power without the cord
- Factory set clutch reduces sudden, high torque reactions if bit jams
- 5/32 in to 1/2 in concrete optimum

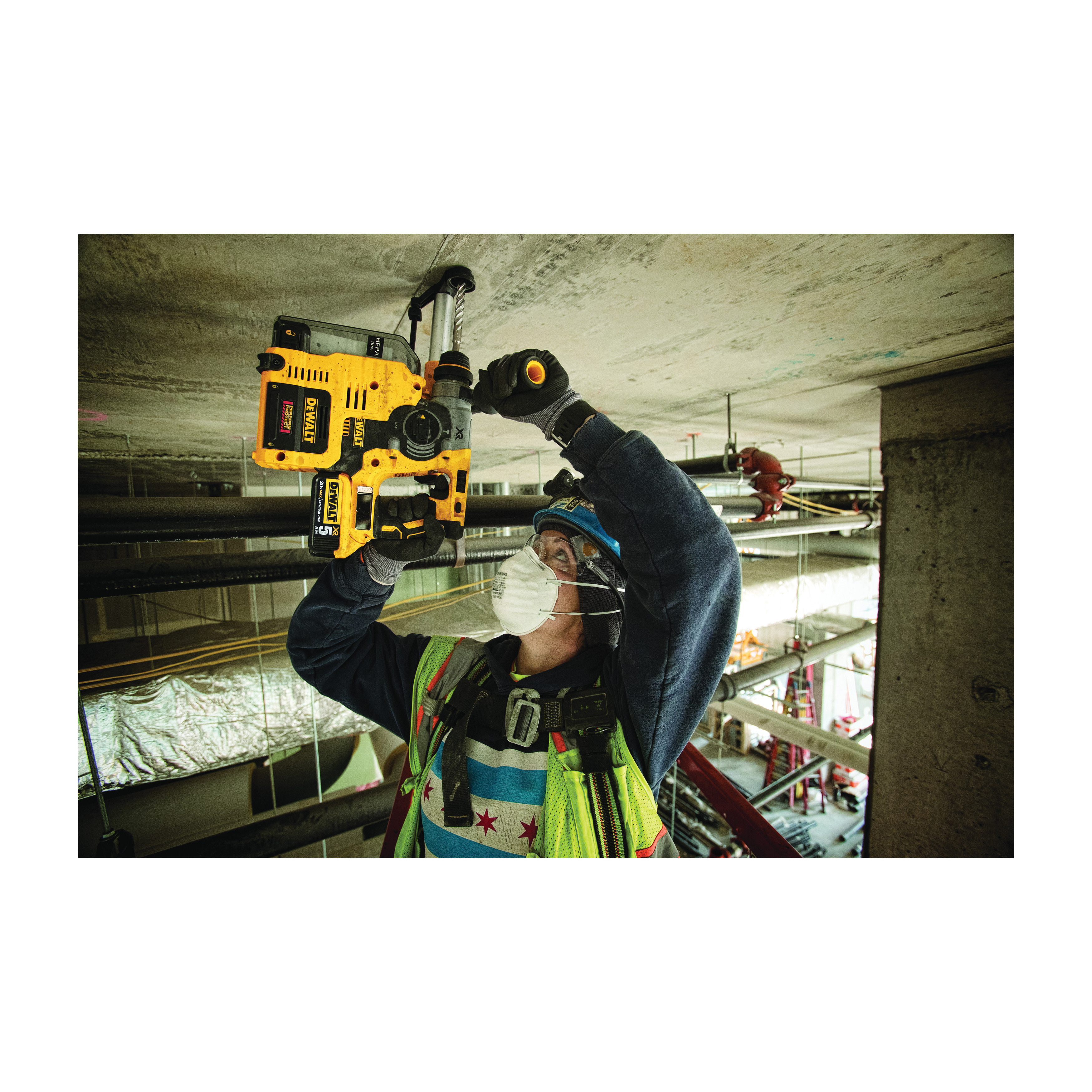

- Use with D25303DH dust extractor ready
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 44YX78 |
-
UNSPSC27112705
-
Package DescriptionEACH
-
Warranty3 Years Limited
