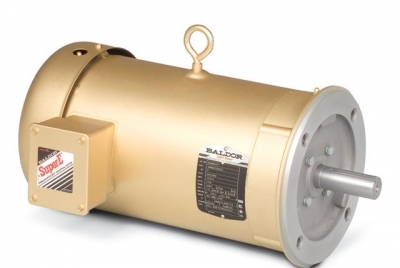

VM-3554-T BALDOR ELECTRIC
1-1/2HP, 3-PH 145-TC 1725-RPM MOTOR-BLDVM3554T>
Recently Viewed
1-1/2HP, 3-PH 145-TC 1725-RPM MOTOR-BLDVM3554T>
Browning® 1228832 Finished Bore Straight Miter Gear With Hardened Teeth, Keyway and Setscrew, 3/4 in Dia Bore
Bevel and miter gearing is a form of gearing in which the tooth-bearing surfaces are the faces of the gears rather than the edges. In bevel and miter gearing, the gears are cone shaped. This allows the edges of the mating gears to mesh and transmit torque. The geometry of the mesh creates a 90 deg angle. As a result, this type of gearing is suitable for applications where a change of direction is required. Other designs exist to create other angles however 90 deg serves the majority of applications. In bevel and miter gearing the input and output shaft are intersecting. It is typical for bevel and miter gear reducers to have lower reduction ratios. For example, 5:1 and lower are typical and they are different than other types of gearing. Two types of bevel and miter gearing are typical. These are straight and spiral. As the name implies, the teeth of straight bevel gears are cut straight. This means that the teeth are oriented perpendicular to the outside edge of the gear. The teeth on spiral bevel gears are cut at an angle to the outside edge of the gear. This type of gearing is said to have "helical" teeth and the angle is called the "helix" angle. Bevel and miter gearing have proven reliable for many years. The use of this type of gearing extends across many industries. Some of these include food processing, woodworking, paper and textile.
JAS6105M15>
SYNTHETIC RUBBER TIMING BELT. COMFORMS TO RMA ENGINEERING STANDARD. TIMING BELTS ARE MEASURED BY LENGTH, TOOTH PITCH, THEN WIDTH. THE FIRST NUMBER IS THE LENGTH, THE LETTER AND SOMETIME NUMBER REFER TO THE TOOTH AND THE FINAL NUMBER IS THE WIDTH. STANDARD TIMING TOOTH PROFILE, H; FIBERGLASS TENSIILE MATERIAL; RUBBER OUTER MATERIAL
JAS300H200 >
Drillco 350E002 3500E Imperial Plain Combined Drill and Countersink, 5/64 in Drill - Fraction, 0.0781 in Drill - Decimal Inch, 60 deg Included Angle, 60 deg Point Angle, HSS, Uncoated
When metal parts are machined on centers, as in turning or cylindrical grinding, it is always necessary to drill and countersink the center holes to serve as seats or bearings in the machine centers.
7/8" SEALED HEX CAM FOLLOWERS-INACF14PPSK>
