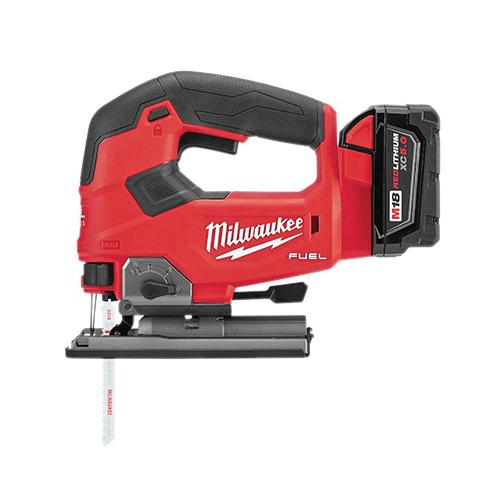

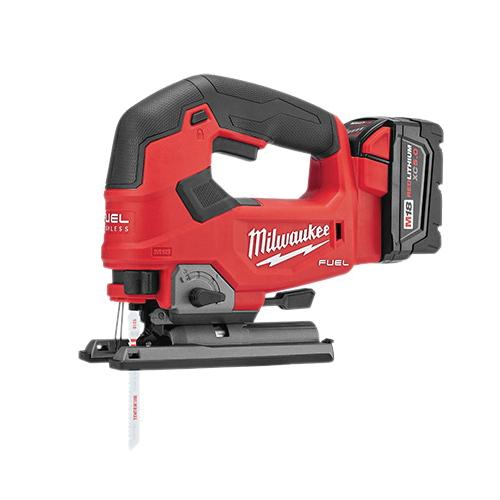

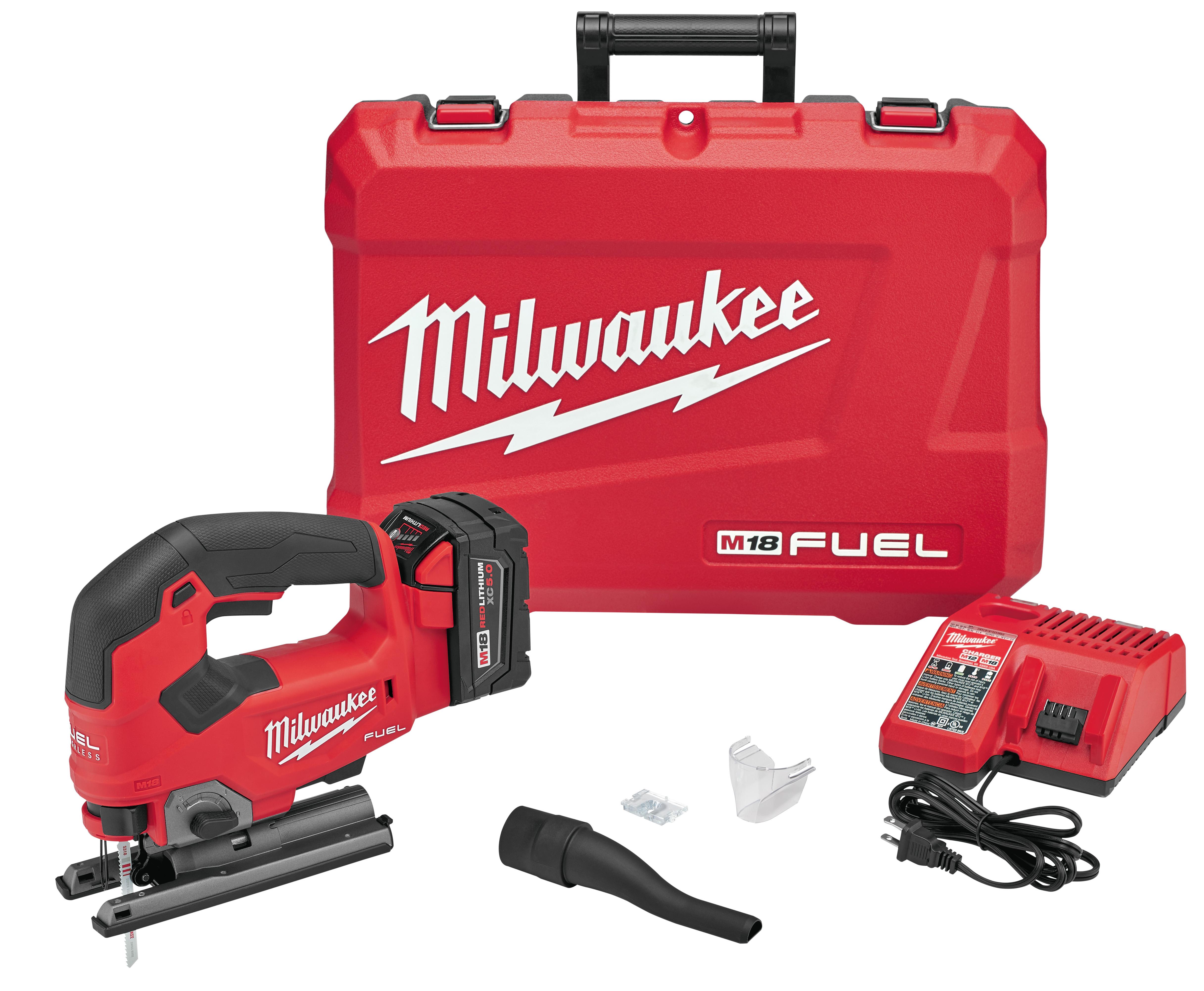

Milwaukee 18-VOLT D-HANDLED JIGSAW KIT MWK 2737-21
The M18™ FUEL™ D-handle jig saw combines power, blade speed and precision, to deliver quality cuts in a wide variety of materials and applications. Equipped with Milwaukee® POWERSTATE™ brushless Motor and REDLINK™ PLUS Intelligence, the M18™ FUEL™ D-handle Jig Saw provides higher blade speed than corded jig saws at 3500 strokes per minute, minimizing chipping or bucking for clean controlled cuts. With the M18™ REDLITHIUM™ XC5.0 battery, the saw is capable of cutting upto 105 linear feet of 3/4 in laminated particle board, delivering all-day productivity with less trips to the charger. The M18™ FUEL™ D-handle Jig Saw features a variable speed two finger trigger, toolless blade change and bevel adjust and an integrated LED light with on/off blower to maximize cutline visibility.
-
BrandMilwaukee®
-
UPC045242515226
-
Manufacturer Part Number2737-21
-
CountryUSA
-
For Blade Shank TypeT-Shank
-
ColorBlack/Red
-
Handle TypeD-Handle
-
Voltage Rating18 V DC
-
Control TypeElectronic Variable Speed
-
Cutting Capacity5-1/2 in
-
Housing MaterialGlass Filled Nylon
-
Bare Tool/KitKit
-
Battery Capacity5 Ah
-
Battery IncludedYes
-
Battery TypeLi-Ion
-
Dimensions3.2 in W x 8.6 in H
-
Bevel Capacity45 deg
-
Stroke Length1 in
-
Strokes per Minute0 to 3500 spm
-
Overall Length9.13 in
- Higher blade speed than corded jig saws for clean controlled cuts
- Power to cut hard materials including hardwoods and metals
- Part of the M18™ system, featuring over 150 plus tools
- POWERSTATE™ brushless motor - increased SPM and the power to cut hard materials, including hardwoods and metals
- REDLINK PLUS™ intelligence the most advanced system of cordless power tool electronics provides optimized performance and overload protection using total system communication between tool, battery and charger
- REDLITHIUM™ battery technology superior pack construction, electronics and performance deliver more work per charge and more work over pack life than nay battery on the market
- 4-position orbital cutting provides versatility for application specific cutting
- Tool free shoe bevel with positive stops allows for quick and accurate shoe adjustment with pin-detents at 0, 15, 30 and 45 deg
- Variable speed trigger between 0 and 3500 strokes per minute, providing precise control for clean cuts with less chipping
- On/off cut line blower keeps the cut line clear of debris and allows user to turn off blower when using dust extraction
- Accepts T-shank jig saw blades
- Toolless shoe bevel with positive stops allows for quick and accurate shoe adjustment with detents at 0, 15, 30 and 45 deg
- LED light illuminates the cut line
- Includes non-marring shoe cover for protection of finished surfaces
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 489P14 |
-
Alternative Part Number14280303
-
UNSPSC27112734
-
IDEA Index ID14280303
-
Package Description1/PK
-
Owners/User Manual
-
SDS
