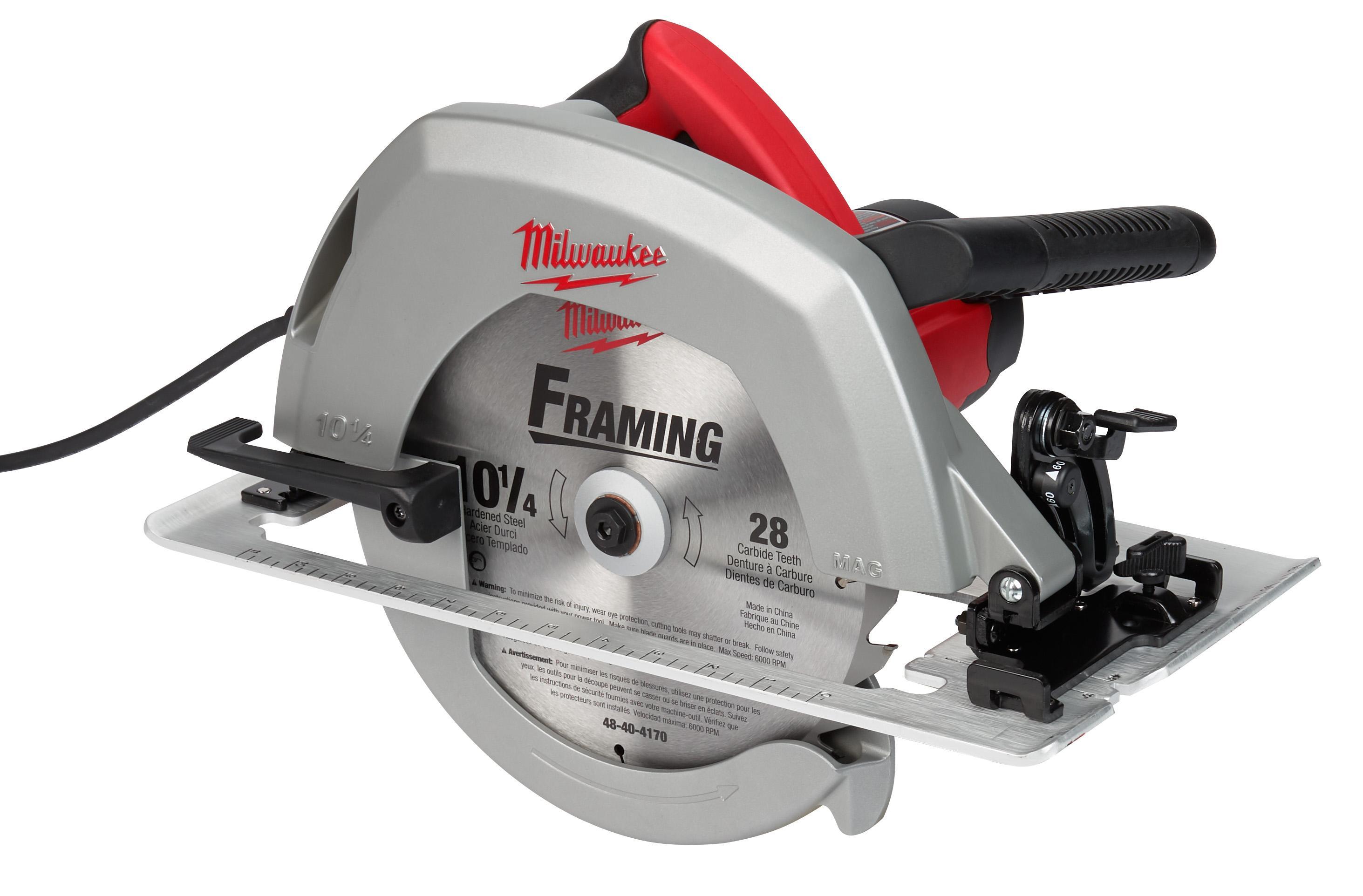

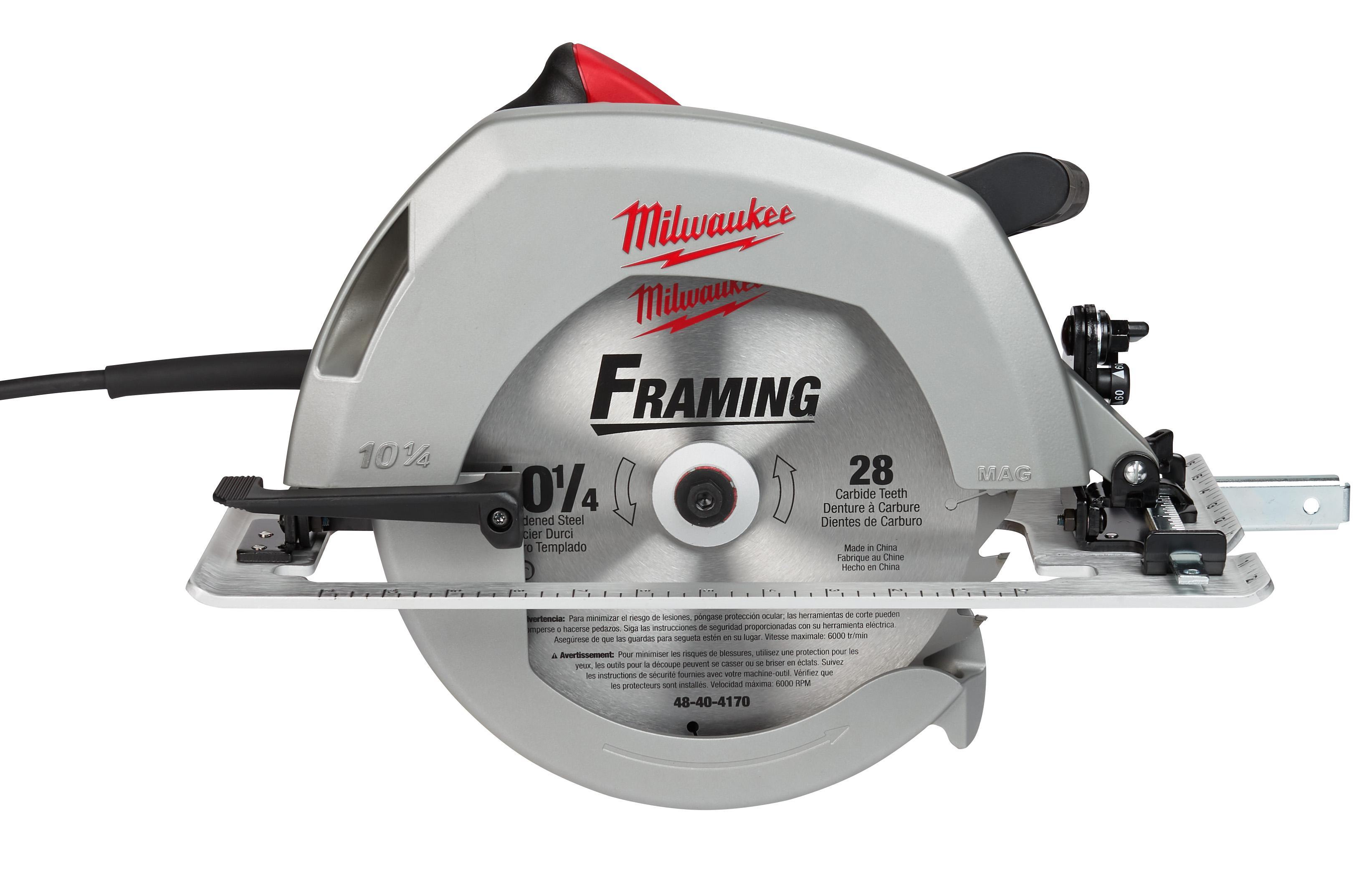

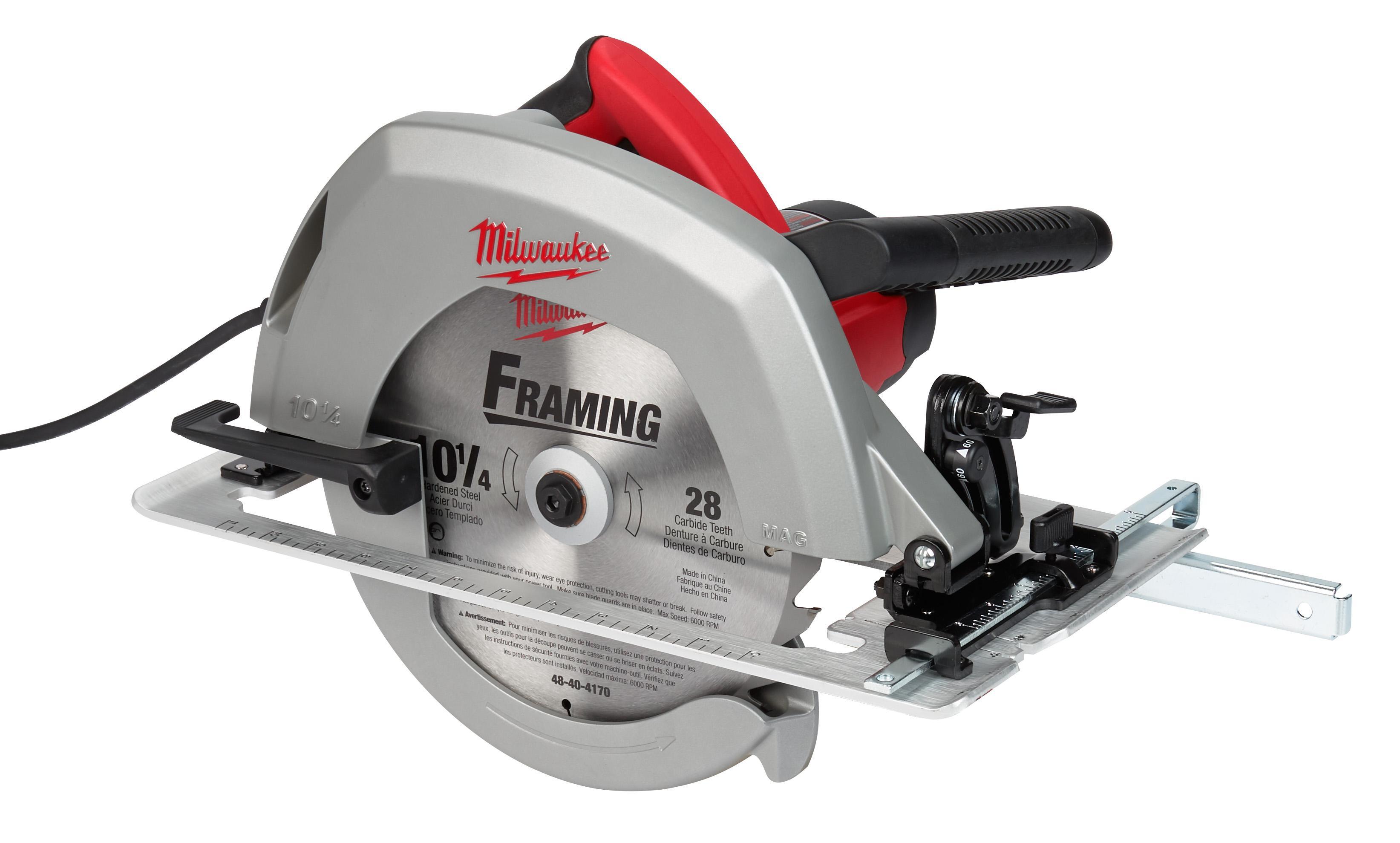

Milwaukee 120-V 10-1/4" 15-AMP CIRCULAR SAWS MWK 6470-21
The 6470-21, 10-1/4 in. circular saw is built with the power and capacity to handle the most extreme cutting applications. The powerful 15 amp, 5,200 RPM motor delivers maximum power for high performance cutting without bogging down under load. An aircraft aluminum shoe will not bend or warp in extreme cutting applications. The electric brake increases productivity by stopping the blade in seconds. These heavy duty features combined with the 3-13/16 in. depth of cut capacity and 60° bevel capacity make the 6470-21 the most popular 10-1/4 in. circular saw in the industry.
-
BrandMilwaukee®
-
UPC045242157433
-
Manufacturer Part Number6470-21
-
CountryUSA|Canada
-
Tool/KitKit
-
Handle TypeSoft Barrel Grip
-
Voltage Rating120 VAC
-
Cord Type2-Wire
-
Amperage Rating15 A
-
Arbor/Shank Size5/8 in
-
Horsepower3.1 hp
-
Cutting Angle45/60/90 deg
-
Cutting Capacity2-3/4 in at 45 deg, 1-3/4 in at 60 deg, 3-13/16 in at 90 deg
-
Housing MaterialPlastic
-
Shoe MaterialAluminum
-
Dimensions17-1/2 in L
-
Bevel Capacity60 deg
-
Speed5200 rpm
-
Blade SideRight
-
Blade Size10-1/4 in Dia
- 3-13/16 in depth of cut capacity - provides enough capacity to cut 4 in material in a single pass
- 60 Deg bevel capacity - provides maximum bevel capacity for cutting roof rafters, trusses and joists
- Electric brake - increases productivity by stopping the blade in seconds
- Aircraft aluminum shoe - will not bend or warp in extreme cutting applications
- Powerful 15 A, 5,200 RPM motor - delivers maximum power for cutting without bogging down under load
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 2XKZ5 |
-
Alternative Part Number10811040
-
UNSPSC27112709
-
IDEA Index ID10811040
-
Package DescriptionEACH
-
Standards/ApprovalsUL Listed
-
Warranty5 years
