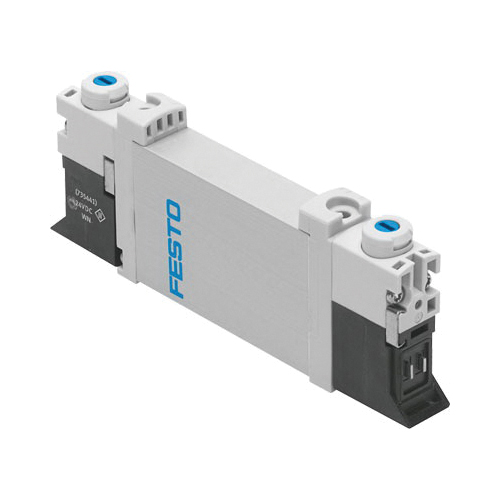

Festo 566499 VUVG Standard Solenoid Valve, G1/8 Port, 2.5 to 8 bar Pressure, 700 to 780 Lpm Flow Rate, 5 Ways, 2 Positions
Festo 566499 VUVG Standard Solenoid Valve, G1/8 Port, 2.5 to 8 bar Pressure, 700 to 780 Lpm Flow Rate, 5 Ways, 2 Positions
-
BrandFesto
-
Manufacturer Part Number566499
-
CountryUSA
-
Temperature Rating-5 to 60 deg C
-
Port SizeG1/8
-
Pressure Rating2.5 to 8 bar
-
Flow Rate700 to 780 Lpm
-
MediaCompressed Air
-
Actuator TypeElectrical
-
Nominal Size5.6 mm
-
SeriesVUVG
-
Number of Positions2
-
Dimensions14.4 mm W x 34.8 mm H
-
Softgoods MaterialHNBR/NBR
-
Number of Ways5
-
Body MaterialWrought Aluminum Alloy
- Compact universal valve
- Connection technology via e-box
- High flow rate relative to its size
- In-line valves can be used as individual valves or manifold valves
- T: Non detenting, detenting manual override
- 1 to 24 VDC nominal operating voltage
-
Alternative Part NumberVUVG-L14-M52-AT-G18-1P3
-
UNSPSC40141605
-
Standards/ApprovalsCSA Certified|cULus Listed|RCM Marked|RoHS Compliant
-
Specification Sheet
-
Catalog
