Numatics® L23BA452O000030 L23 Single Solenoid Pilot Valve With Flush Locking Override, 3/4 in Port, 28 in Hg to 150 psig Pressure, 79 scfm Flow Rate, 4 Ways, 26 mm Positions

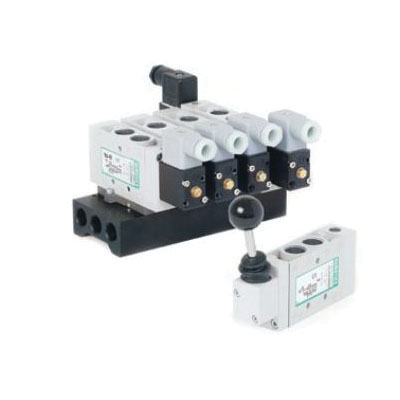

The L2 Series air valves offer speed and high flow capacity in a compact design. They are available either with solenoid pilot, air pilot, or hand lever actuation. The L2's slim design (1 in body width) is ideal for inline mounting. The L2 may be mounted on one piece extruded manifolds from 2 to 12 stations, either as common supply with common exhaust or common supply with individual exhaust.
-
BrandNumatics®
-
Manufacturer Part NumberL23BA452O000030
-
CountryUSA
-
Temperature Rating-10 to 115 deg F
-
Port Size3/4 in
-
Port TypeNPTF
-
Pressure Rating28 in Hg to 150 psig
-
Flow Rate79 scfm
-
TypeSingle
-
Actuator TypeSpring Return
-
SeriesL23
-
Number of Positions26 mm
-
Dimensions5.99 in H x 2.89 in W x 2 in D
-
Number of Ways4
- Repeatable and reliable performance in harsh environments
- Industry leading life performance
- Ideal for high cycle rate machine applications
- Optimize machine cycle rate via speed controls
-
UNSPSC40141605
-
Standards/ApprovalsCE Marked|CSA Certified
-
