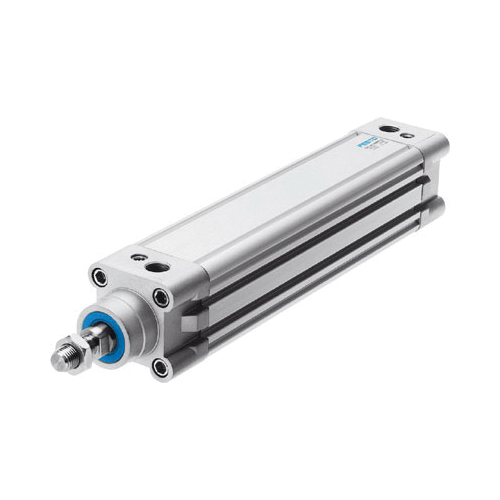

Festo 163444 DNC Standard Cylinder With Position Sensing, 80 mm Cylinder Bore, 500 mm L Stroke, 3016 N Advance/2721 N Return Max Force, Double Acting Cylinder Action
Festo 163444 DNC Standard Cylinder With Position Sensing, 80 mm Cylinder Bore, 500 mm L Stroke, 3016 N Advance/2721 N Return Max Force, Double Acting Cylinder Action
-
BrandFesto
-
Manufacturer Part Number163444
-
CountryUSA
-
Temperature Rating-20 to 80 deg C
-
FinishSmooth Anodized
-
Port SizeG3/8
-
MaterialHigh Alloy Steel Piston Rod/Wrought Aluminum Alloy Cylinder Barrel
-
Pressure Rating0.6 to 12 bar
-
Maximum Force3016 N Advance/2721 N Return
-
Maximum Load1131 lb Moving Load at 0 in Stroke/38 lb Additional Load Per 1 in Stroke
-
Rod DiameterM20
-
Rod Thread SizeM20 x 1.5
-
SeriesDNC
-
Cushion TypePneumatic
-
Cylinder ActionDouble Acting
-
Cylinder Bore Size80 mm
-
Dimensions718 mm L x 93 mm W x 93 mm H
-
Stroke Length500 mm
- Pneumatic cushioning, adjustable at both ends
- Proximity sensor
-
Alternative Part NumberDNC-80-500-PPV-A
-
UNSPSC27131701
-
Standards/ApprovalsRoHS Compliant
-
