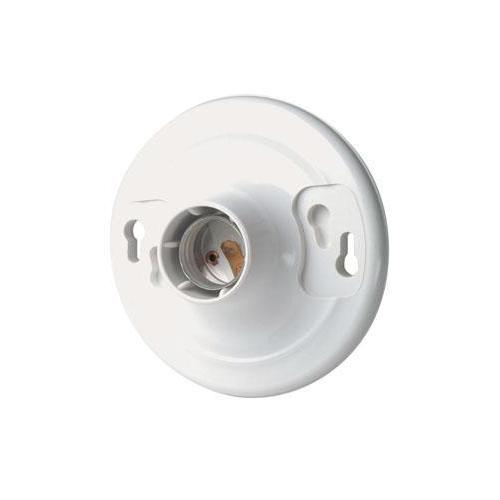

Leviton® 8829-CW4 1-Circuit 1-Piece Keyless Ceiling Receptacle Lampholder, 660 W Lamp, 600 V AC, E26 Lamp
Leviton® produces lamp holders for virtually every light source equipped with incandescent, fluorescent or CFL lamps. Lamp holders include incandescent medium base and specialty sizes and fluorescent lamp holders, in addition to a large line of porcelain lamp holders including pulse rated mogul base products and an extensive selection of devices for high intensity lamps.
-
BrandLeviton®
-
UPC078477103180
-
Manufacturer Part Number8829-CW4
-
CountryUSA
-
Terminal TypeScrew
-
MaterialUrea
-
ColorWhite
-
Type1-Circuit 1-Piece Keyless Ceiling Receptacle
-
Connection TypeTop Wired
-
Mounting TypeTwist-Lock
-
Voltage Rating600 V AC
-
Dimensions4.5 in Dia x 2.01 in H
-
Lamp Base TypeE26
-
Lamp TypeIncandescent
-
Lamp Wattage660 W
- ON-OFF sequence
- Single circuit lampholder
- Aluminum screw shell
- Fits 3-1/4 in or 4 in outlet box mount
- 1-piece construction
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 25LV09 |
-
Alternative Part Number7341860
-
UNSPSC39111803
-
IDEA Index ID7341860
-
Package DescriptionEACH
-
Standards/ApprovalsUL File No. E5833|E3810|CSA File No. LR5863
-
Warranty1 Year Limited
-
Specification Sheet
-
Instruction/Installation Manual
