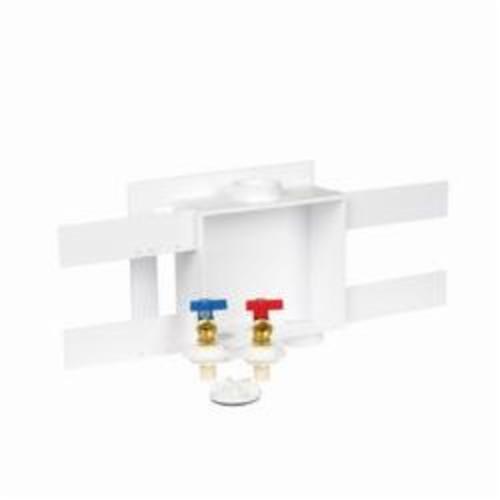

Oatey® 38531 Quadtro® Outlet Box Without Hammer, For Use With Washing Machine, Polystyrene

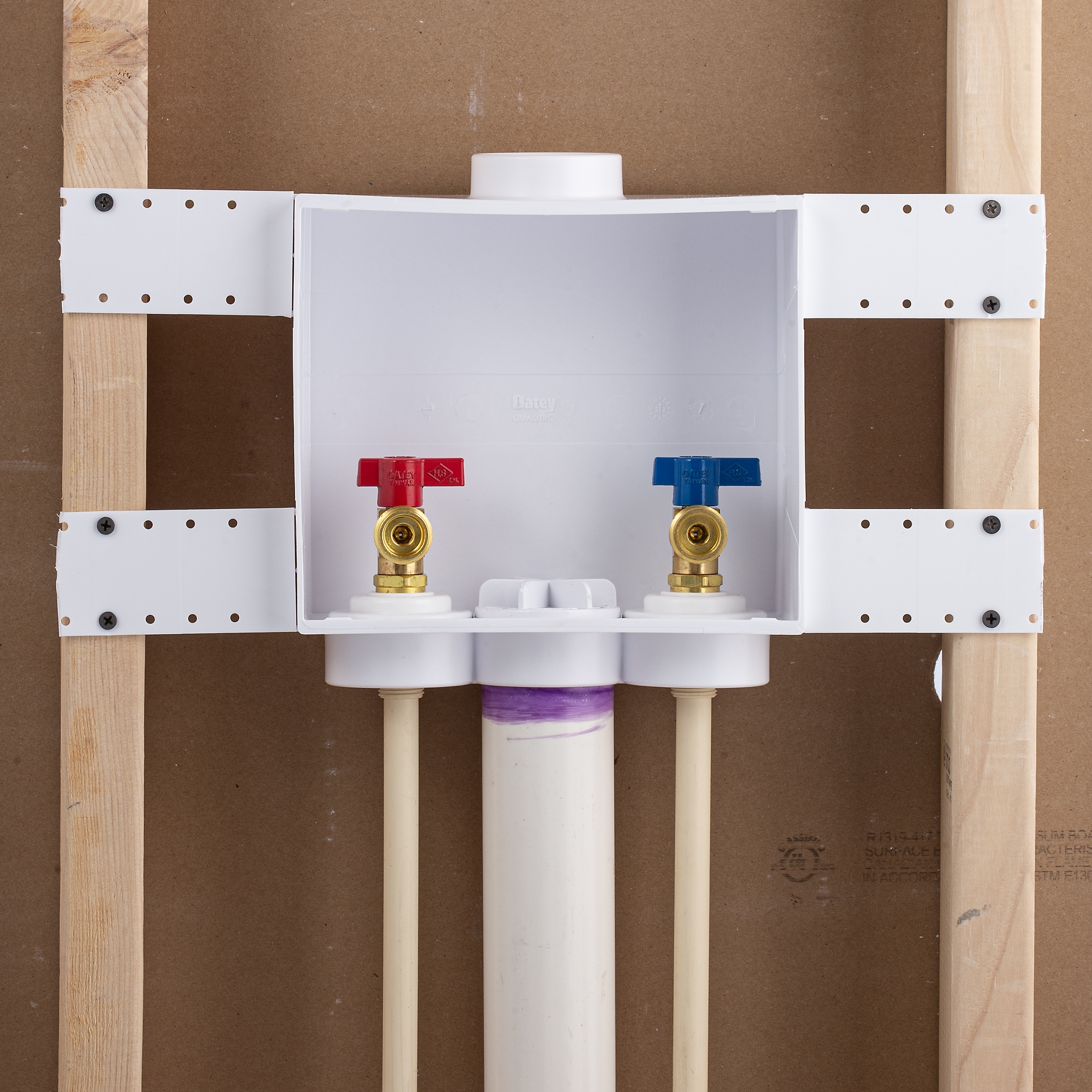

The Oatey® Quadtro® Washing Machine Outlet Box is made for commercial or residential applications where supply valves and waste drains are recessed into the wall. The proprietary lock and load valves enable left, right or center positioning of the drain pipe. This easy-to-install box includes all necessary support brackets to mount the water supply valves from the top or bottom. Oatey products have earned the trust of plumbing professionals for over 100 years.
-
BrandOatey®
-
UPC038753385310
-
Manufacturer Part Number38531
-
CountryUSA|Canada
-
MaterialPolystyrene
-
SeriesQuadtro®
-

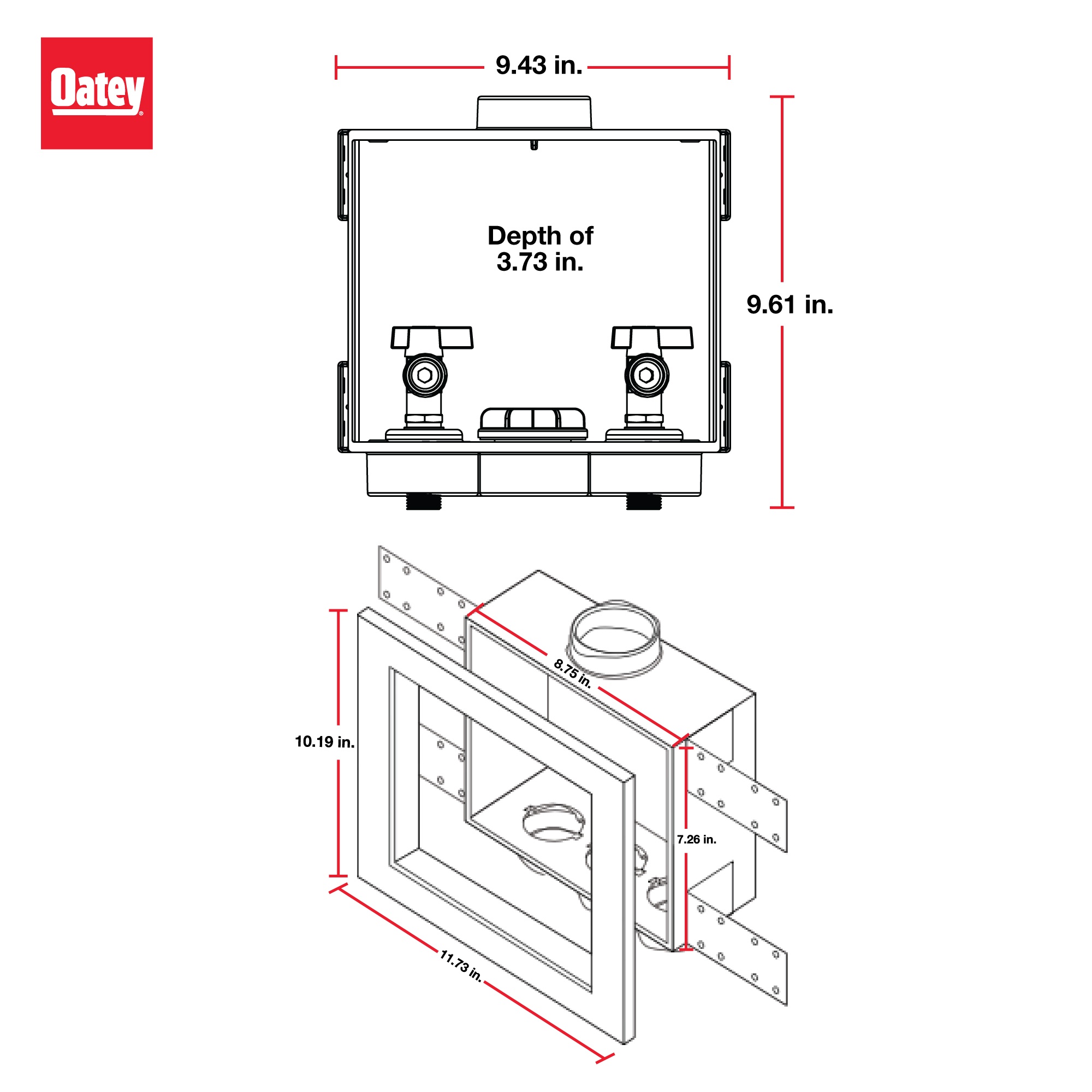

Dimensions8-3/4 in W x 7-1/2 in H x 3-5/8 in D
-
Suitable For Use WithWashing Machine
- Easy-to-remove, tool-free 1/4-turn knockout
- Snap-on faceplate frame accommodates up to 1 in drywall
- Box made of high impact polystyrene stands up to the roughest job site abuse
- Connects to CPVC supply line with solvent weld connection

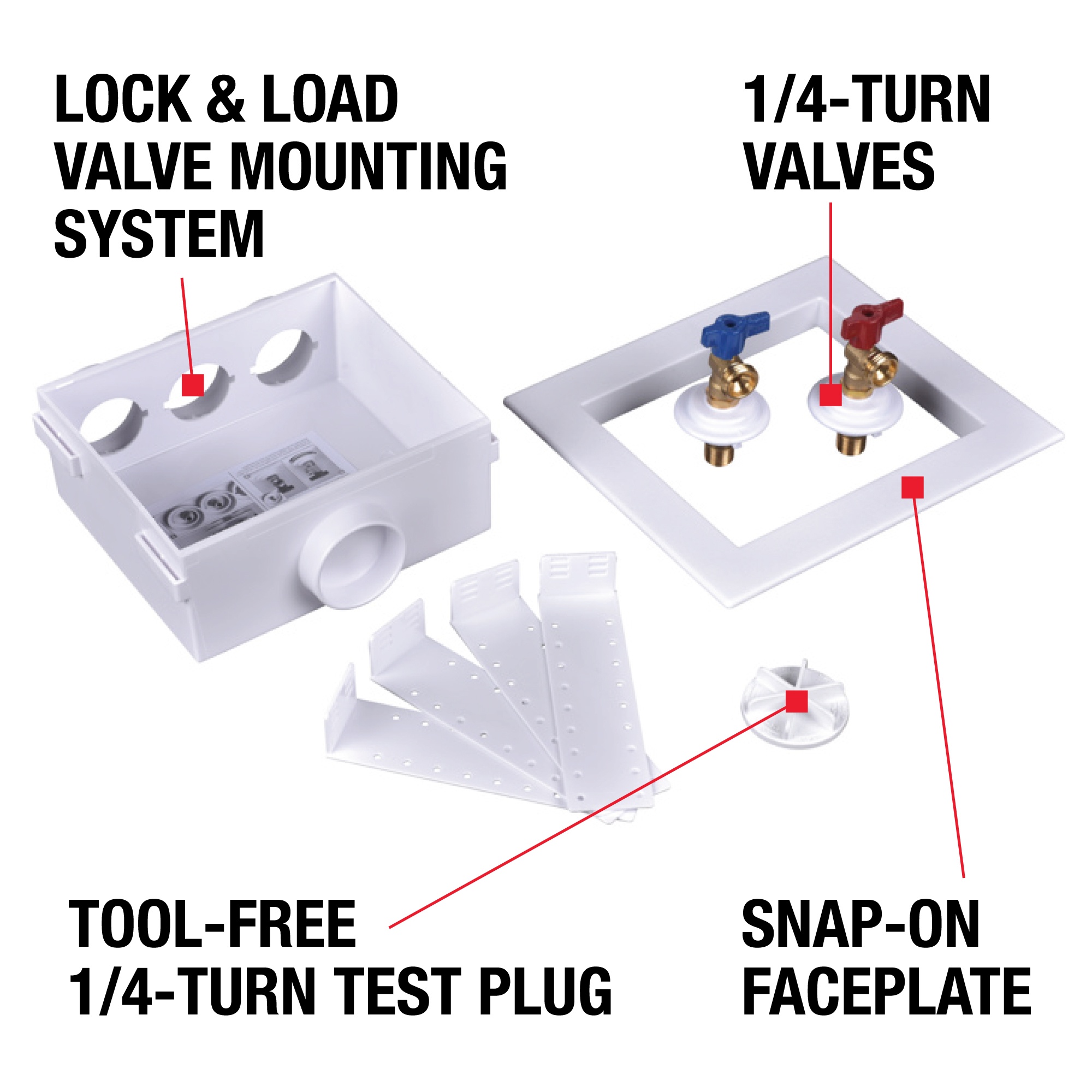

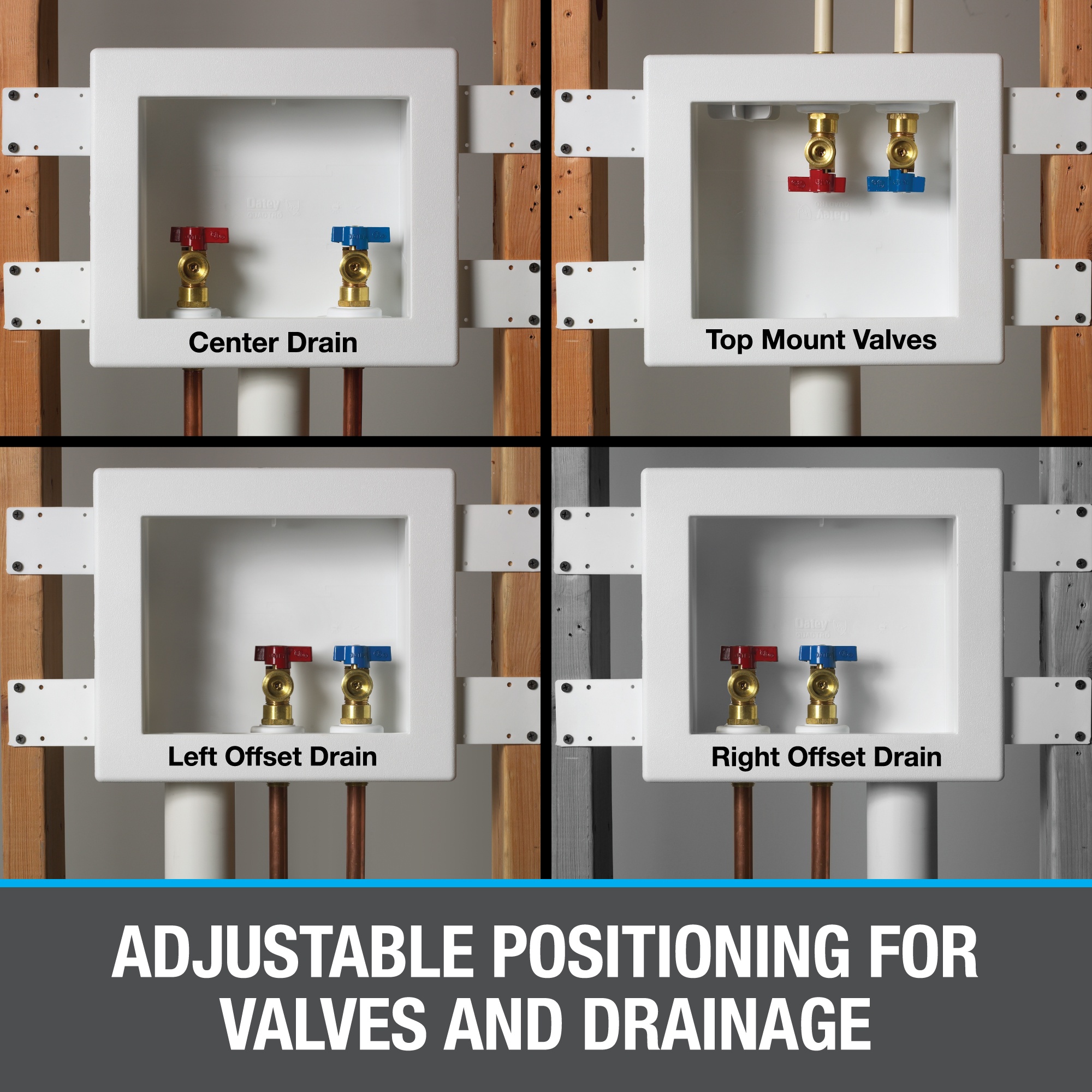

- Two proprietary lock and load 1/4-turn valves enable left, right or center positioning of the drain pipe
- Four openings accommodate - A hot water PEX-compatible valve, a cold water PEX-compatible valve, PVC or ABS Schedule 40 drain pipe for connection to your DWV system, and the option for top-down supply line installation
- Easy installation lock and load valve mounting system for quick and easy positioning
- Variety boxes available in various tailpiece configurations, giving you the specific product your customers need, including water hammer Arrester SKUs
- 11-3/4 in width x 10-1/8 in height faceplate
| Competitor Name | Competitor Part Number |
|---|---|
| Ferguson | O38531 |
-
UNSPSC40141700
-

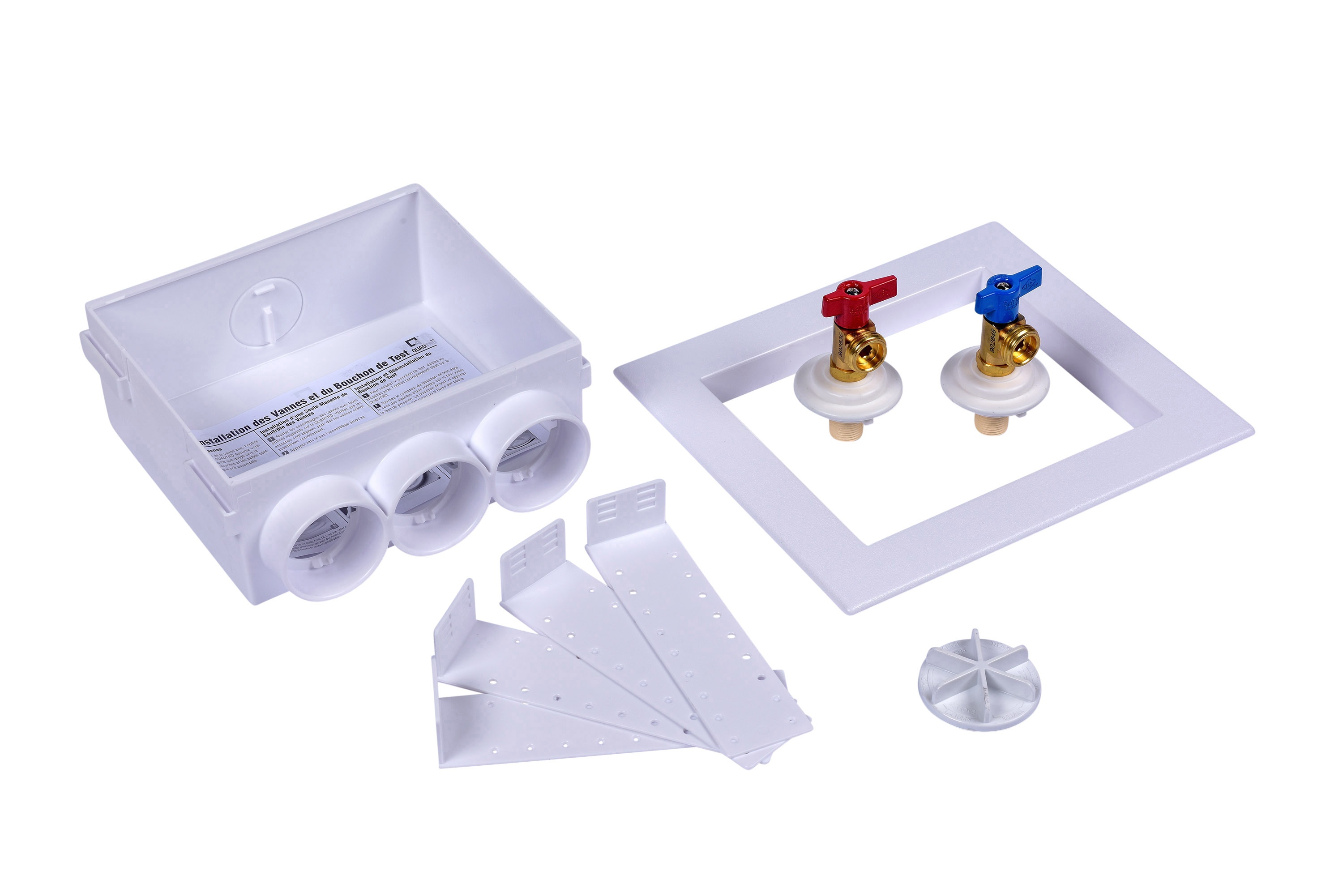

Includes1/4 Turn Unassembled Brass Ball Valve, CPVC Tail Piece and (4) Support Brackets
-
Package DescriptionBOX
-
Standards/ApprovalsISO 9001 Certified|PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
-
Catalog
-
Specification Sheet
