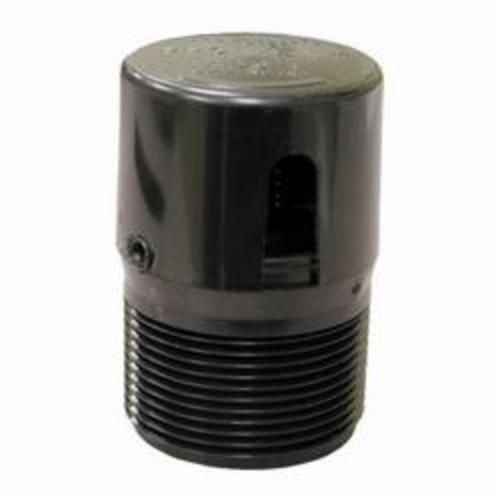

Jones Stephens™ P21150 Provent, 1-1/2 in MNPT, ABS
Jones Stephens™ P21150 Provent, 1-1/2 in MNPT, ABS
-
BrandJones Stephens™
-
UPC717510211504
-
Manufacturer Part NumberP21150
-
CountryUSA
-
MaterialABS
-
Dimensions2-7/8 in L x 2 in OD x 1-1/8 in Thread Length
-
Specifications1-1/2 in MNPT
- Manufactured housing and RVs only
- Automatic anti-siphon trap vent used as secondary venting
- Must be located at least 60 in above trap arm
- Two individually protected fixtures may be connected to same 1 1/2 in drain
- Three or more fixtures must be drained by 2 in line
- Simply hand tighten, no thread seal needed
- Water closet must have main stack to outside
- Must be installed in accessible location with free flow air
- Do not install in sealed wall cavity
-
UNSPSC40141700
-
Package Description1/CT
-
Specification Sheet
-
Full Engineering Drawing
