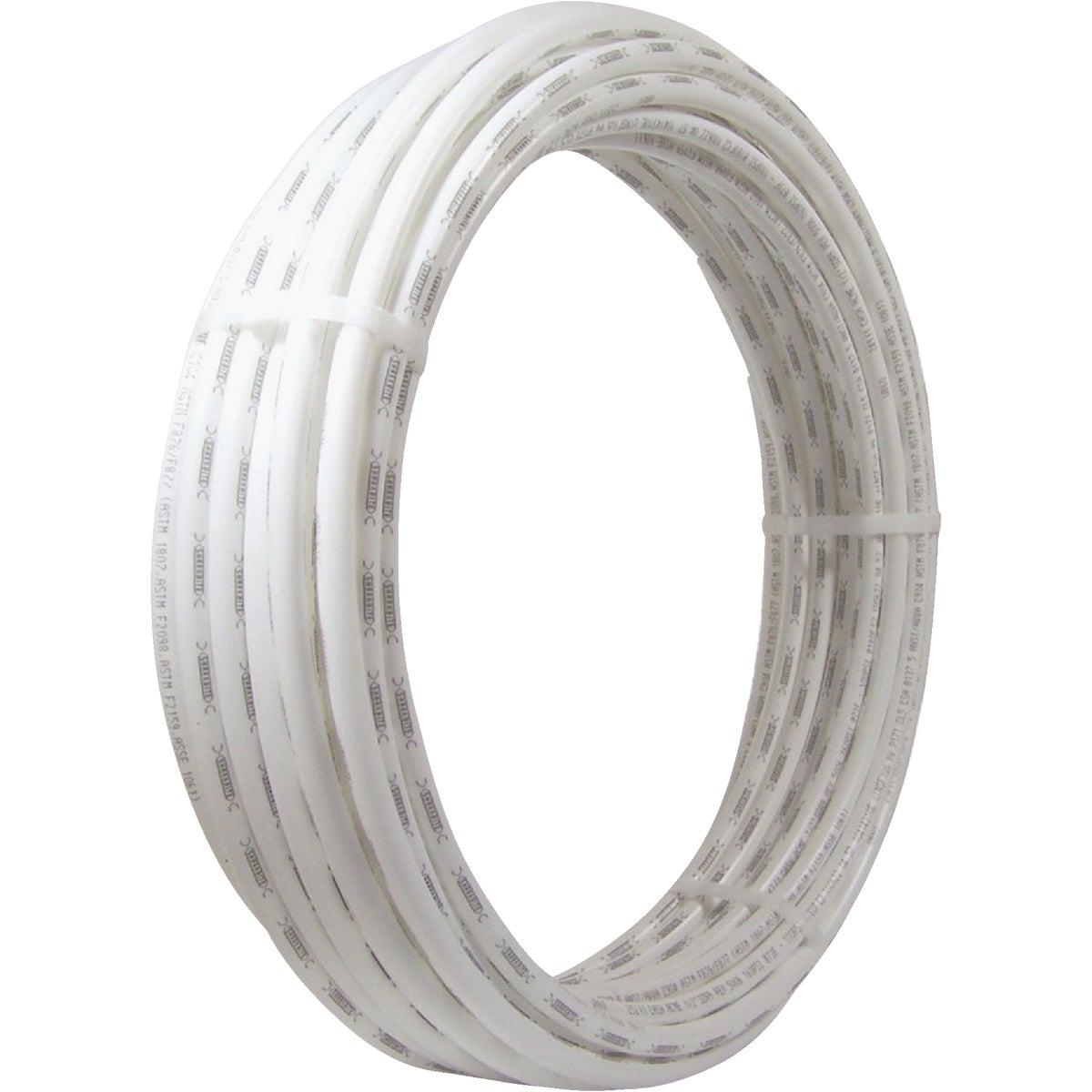

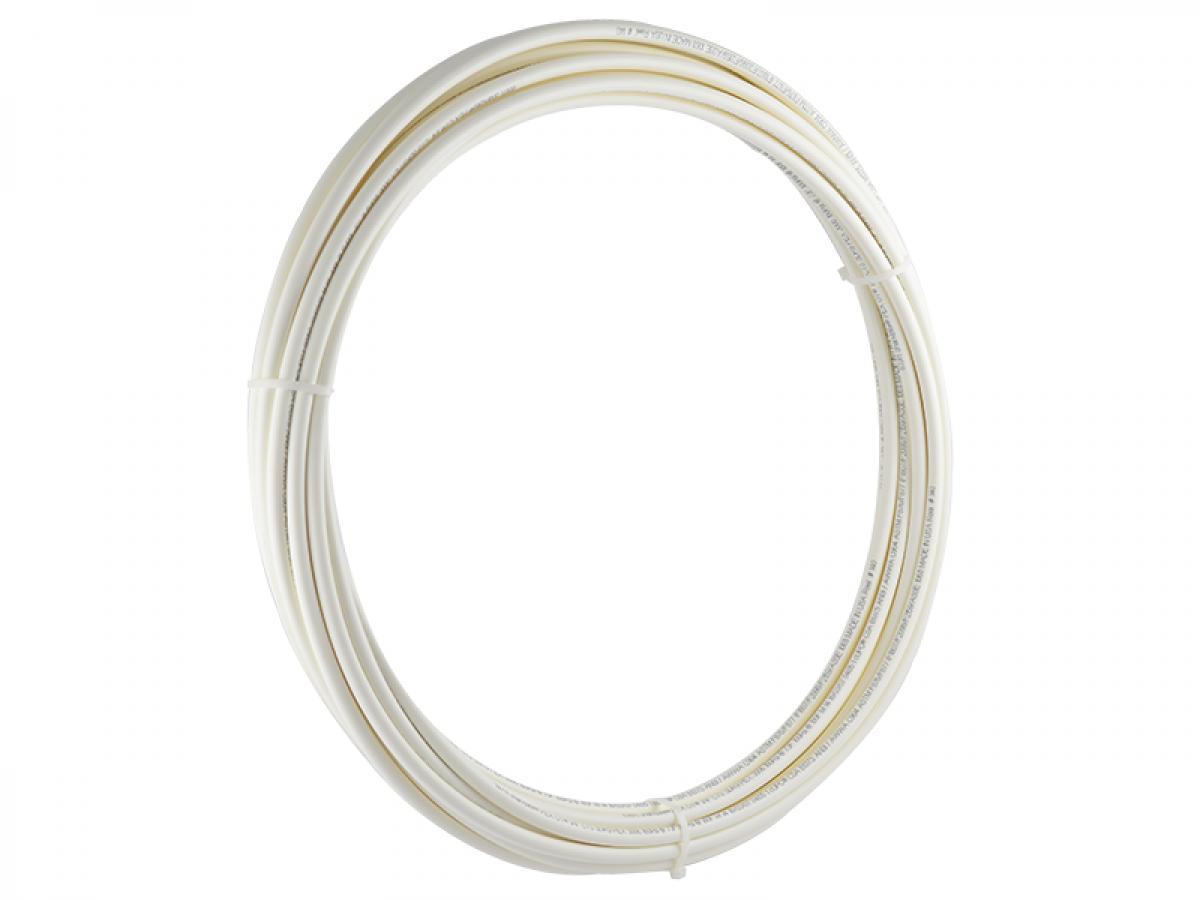

Sharkbite® U850W50 Pipe, 1/4 in Nominal, PEX-B Dia Inside, Polyethylene
SharkBite PEX tubing is cross-linked polyethylene tubing for a wide range of residential and commercial plumbing applications. PEX Pipe is durable, flexible and corrosion resistant. Manufactured without an oxygen barrier for potable water systems (available in white, blue, and red). A repeating SharkBite imprint patterns provides a visual aid to determine if the tube has been inserted all the way into the SharkBite Push-to-Connect Fitting. This feature only works if the tubing is cut between the SharkBite imprint patterns. In addition to Potable Water Supply SharkBite PEX meets UL Standard for Plastic Piping in Fire Systems.
-
BrandSharkbite®
-
UPC697285105607
-
Manufacturer Part NumberU850W50
-
CountryUSA
-
Temperature Rating33 to 200 deg F
-
FinishWhite
-
MaterialPolyethylene
-
ColorWhite
-
Nominal Size1/4 in
-
Working Pressure80 to 160 psi
-
Inside DiameterPEX-B
-
End StylePEX-B
- PEX-B offers the highest-rated chlorine resistance and six-month UV resistance
- Approved for water service lines and burial applications including being buried under concrete
- Approved for use with SharkBite EvoPEX, SharkBite Universal push-to-connect (ASSE 1061), plastic barb (ASTM F2159) and brass barb (ASTM F1807) fittings
| Cross-Reference Number |
|---|
| 405083 |
-
Standards/ApprovalsASTM F2159|ASTM F2023|ASTM F1807|ASTM F2023 oxidative-resistance requirements for continuous hot water recirculation
-
Warranty Information
-
Catalog
-
Specification Sheet
-
Instruction/Installation Manual
-
Owners/User Manual
