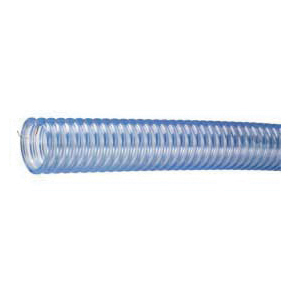

Tigerflex™ WE150x100 WE™ Series Hose With Grounding Wire, 1-1/2 in Nominal, 100 ft L, 50 psi Working, PVC, Domestic
Tigerflex™ WE150x100 WE™ Series Hose With Grounding Wire, 1-1/2 in Nominal, 100 ft L, 50 psi Working, PVC, Domestic
-
BrandTigerflex™
-
Manufacturer Part NumberWE150x100
-
CountryUSA
-
Temperature Rating-4 to 150 deg F
-
MaterialPVC
-
ColorTransparent
-
Nominal Size1-1/2 in
-
SeriesWE™ Series
-
Working Pressure50 psi
-
Bend Radius3 in
-
Domestic/ImportDomestic
-
Outside Diameter1.93 in
-
Length100 ft
- Superior product design - Tigerflex™ WE™ series hoses are an industry standard for pneumatic material handling, due to our specially engineered compound, innovative design and uncompromising quality control
- Provides the ideal combination of light weight, flexibility and durability
- Food grade materials - hose complies with applicable FDA requirements, hose approved by USDA for use in meat and poultry plants
- Grounding wire - multi-strand wire helps prevent the build-up of static electricity for added safety and to help keep material flowing smoothly
- It's embedded within the rigid helix to prevent contamination of transferred materials
- Transparent construction - "See-the-flow" allows for visual confirmation of material flow
- Convoluted outer cover - provides increased hose flexibility
- Phthalate free
- 50 psi at 68 deg F/25 psi at 104 deg F
-
UNSPSC40142000
-
Standards/ApprovalsBSE/TSE|FDA Approved|RoHS Compliant|USDA Complies
-
Specification Sheet
-
Catalog
