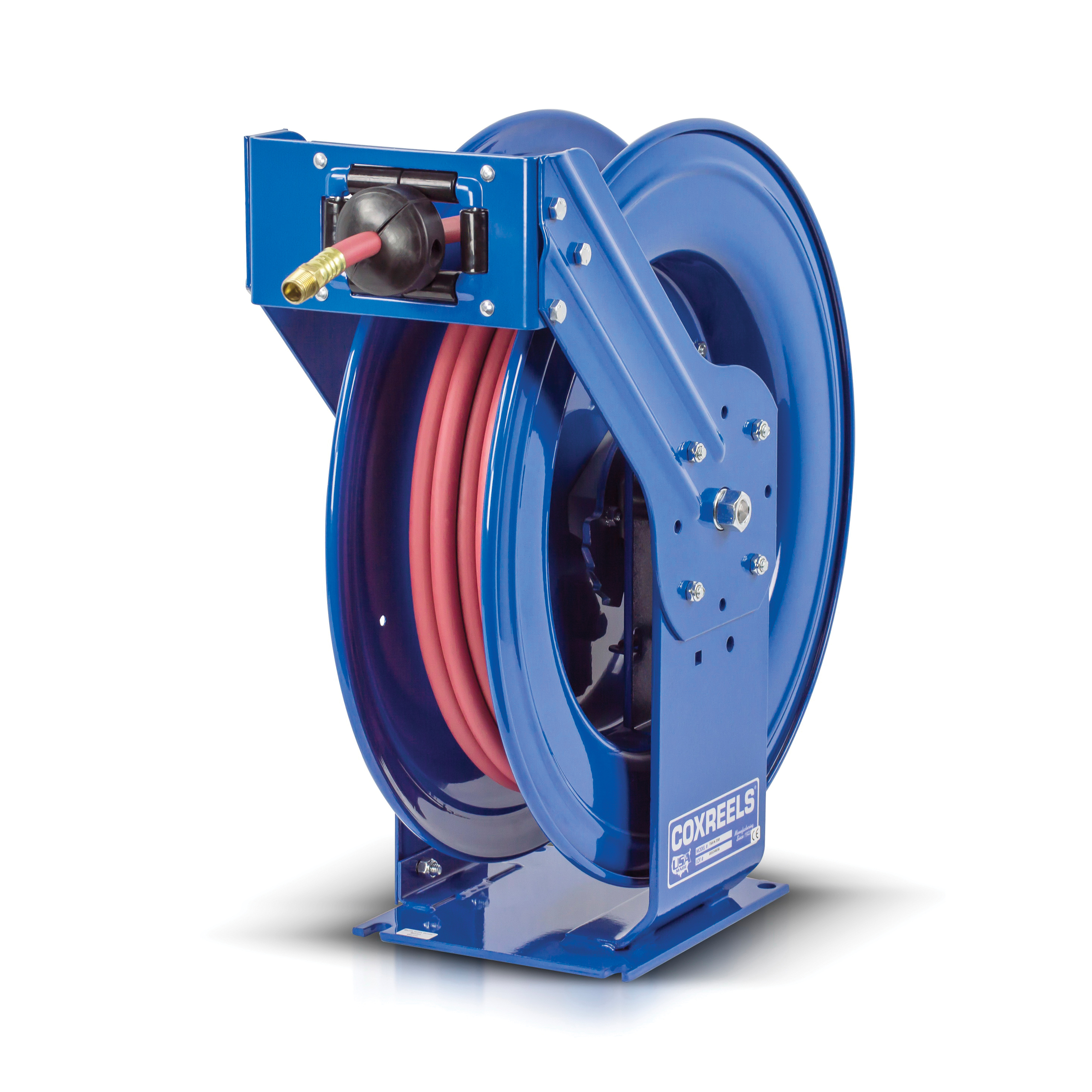

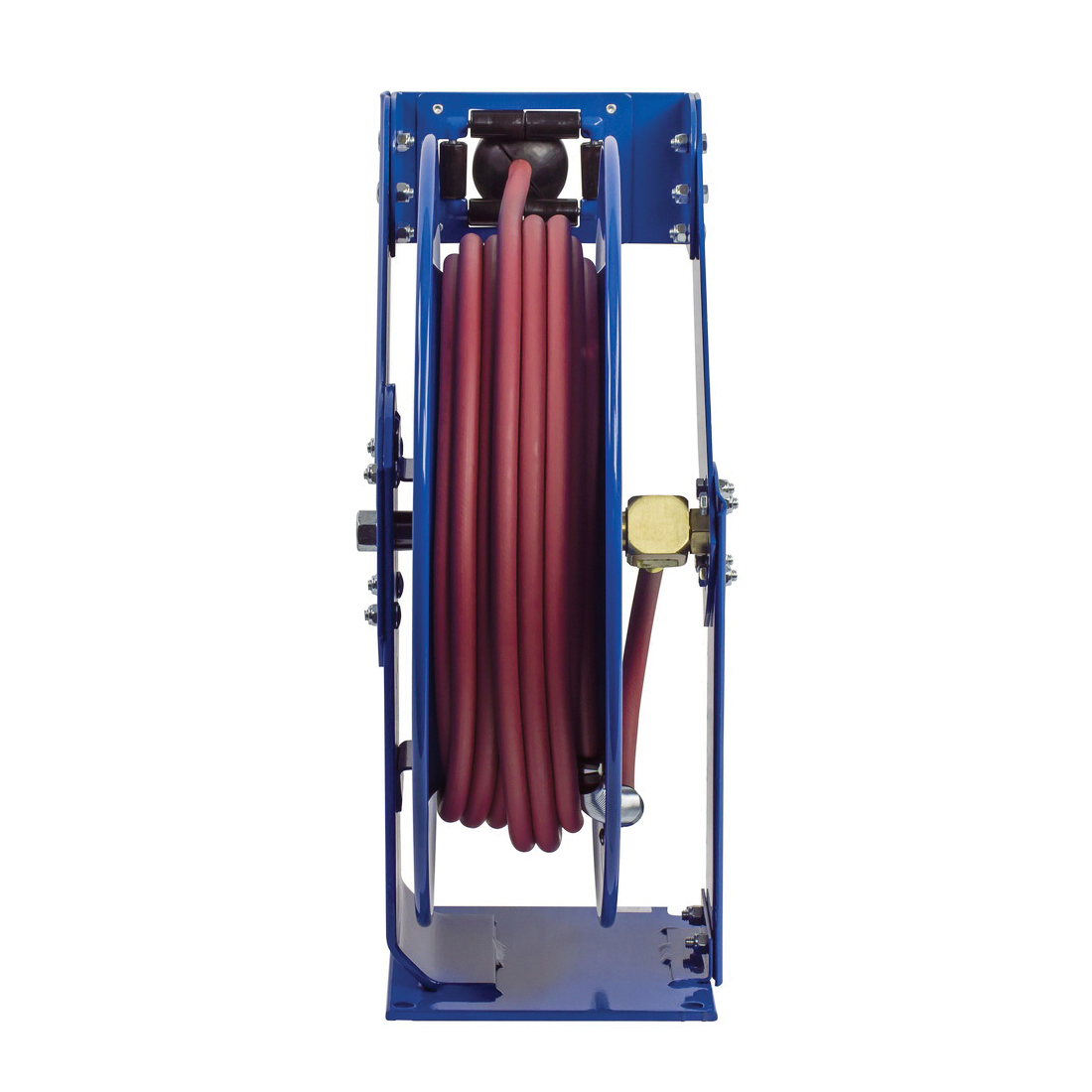

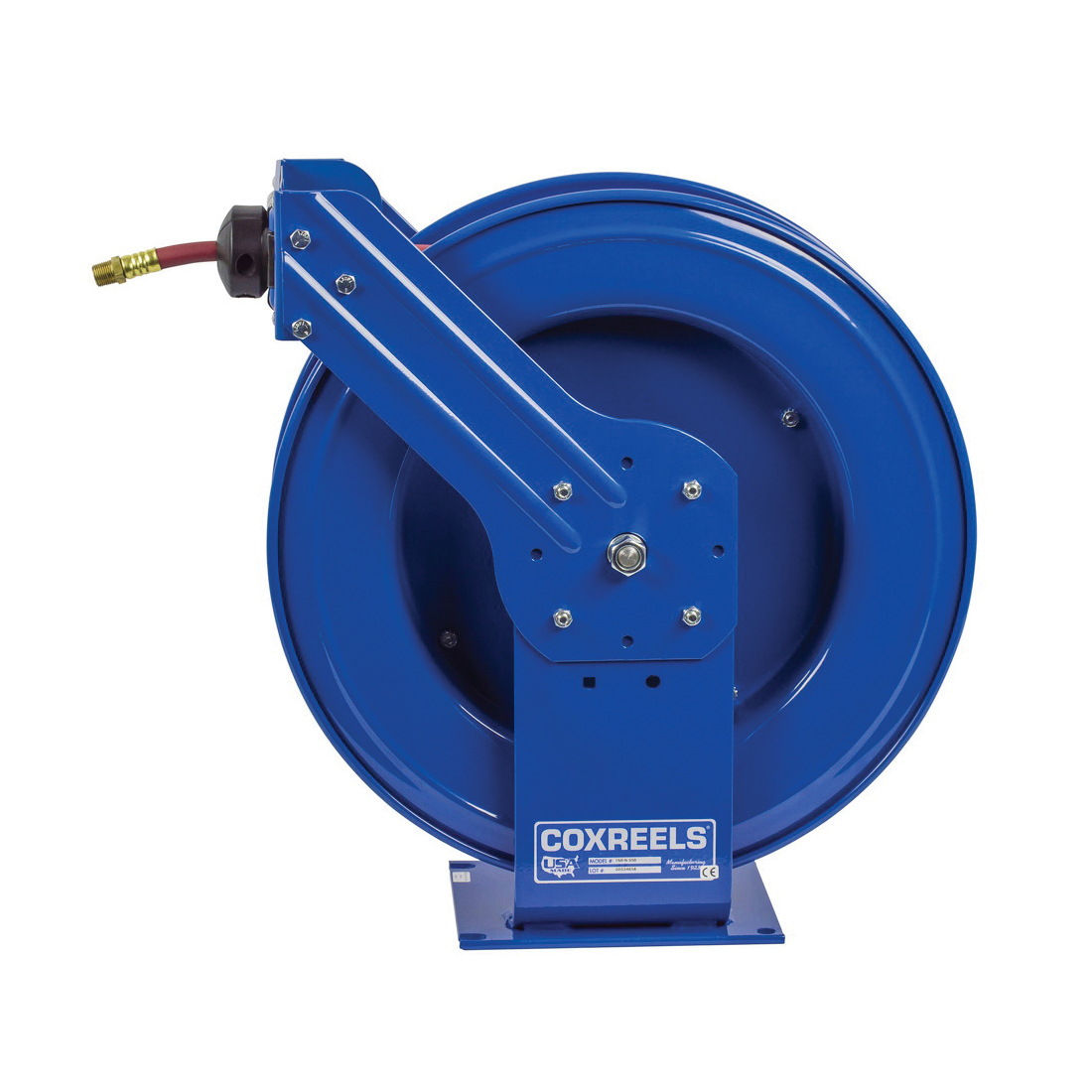

COXREELS® TSH-N-350 2-Pedestal Low Pressure Supreme Duty Spring Driven Hose Reel, 3/8 in ID x 5/8 in OD x 50 ft L Hose, 300 psi Pressure, Import

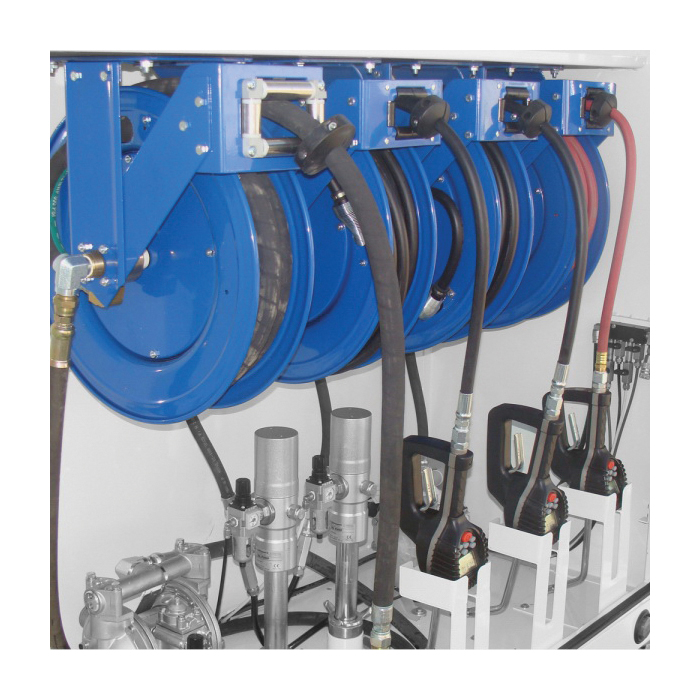

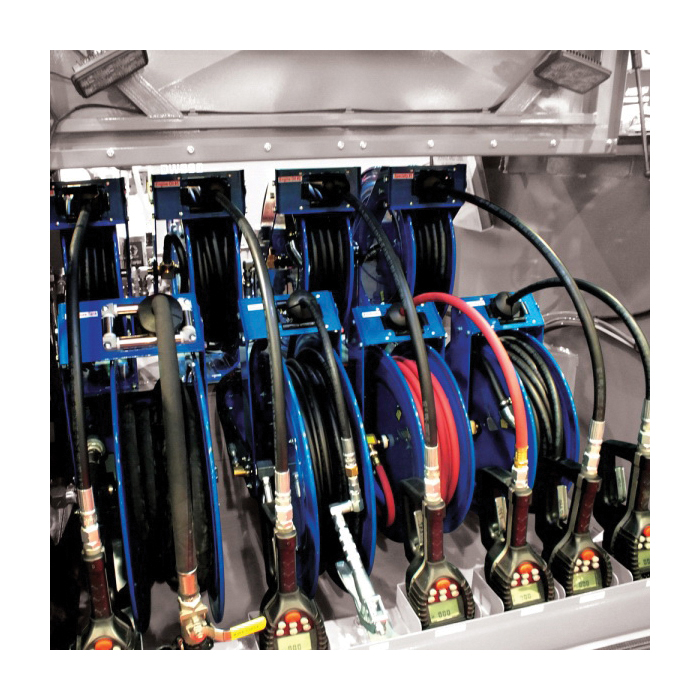

COXREELS® T Series truck mount Spring Driven Hose Reels are the toughest hose reels in the spring driven line. The extra large chassis with dual pedestal style arms and COXREELS® Super Hub™ provides triple axle support while reducing vibration and strengthening the structural integrity of the reel. Making it perfect for off road applications that demand reliability in the most abusive and demanding environments.
-
BrandCOXREELS®
-
Manufacturer Part NumberTSH-N-350
-
CountryCanada
-
FinishCPC™ Powder Coated
-
MaterialSteel
-
Pressure Rating300 psi
-
ColorBlue
-
Type2-Pedestal Low Pressure Supreme Duty
-
Mounting TypeBench/Ceiling/Floor/Vehicle
-
Seal TypeNitrile
-
SeriesT Series
-
Hose Capacity3/8 in ID x 5/8 in OD x 50 ft L
-
Dimensions19-1/2 in L x 9-3/8 in W x 21-1/4 in H
-
Domestic/ImportImport
-
Drive TypeCartridge Style Spring Motor
-
Swivel MaterialBrass
- Swivel - machined from solid brass 90 deg full flow NPT swivel for simple seal maintenance and fast and easy hose installation
- No need to remove the reel from its mount
- Cartridge motor - lubricated and enclosed cartridge style motor is easily removable for safe and convenient maintenance
- CNC spun disc - heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety
- 1/4 in steel base - sturdy dual pedestal design with solid one-piece steel base and support post, no weld, for maximum stability
- Equipped with COXREELS® exclusive Super Hub™ triple axle support
- Multi-position guide arm - versatile multi-position guide arm adjusts to wall, floor, ceiling and vehicle mounting positions
- Long-lasting, chip-resistant and rust inhibiting CPC™ powder coated finish, adjustable solid rubber hose stop and sturdy permanently lubricated precision bearing
-
Alternative Part NumberREL DP5650 OLP
-
UNSPSC40142022
-
Standards/ApprovalsREACH 1907/2016 of EU|RoHS 2011/65/EU|RoHS 2015/863/EU|CSA C22.2 File No. 308-14/21-14/E231674|CE Certified|PROP65: This product can expose you to chemicals including Nickel, which are known to the State of California to cause cancer, and chemicals including Chromium, which are known to the State of California to cause birth defects or other reproductive harm. For more information go to - www.p65warnings.ca.gov
-
Warranty2 years Limited
-
Instruction/Installation Manual
-
Catalog
-
Full Engineering Drawing
