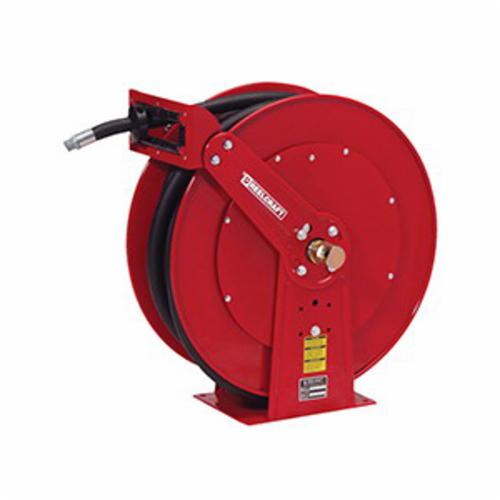

Reelcraft® F83050 OLP F80000 Low Pressure Hose Reel, 3/4 in ID x 1-47/250 in OD x 50 ft L Hose, 50 psi Pressure, 24 in Dia x 6 in W Reel, Domestic
The Reelcraft® fuel delivery reels are equipped with low temp Buna seals and incorporate metal forms to insure the greatest possible strength and are ideal for mobile and fixed mount applications. These rugged reels are corrosion-resistant and suitable for a wide range of fuels including E85, diesel and gasoline, to name a few.
-
BrandReelcraft®
-
UPC699567003311
-
Manufacturer Part NumberF83050 OLP
-
CountryUSA
-
FinishPowder Coated
-
MaterialReinforced Stainless Steel
-
Pressure Rating50 psi
-
Reel Diameter24 in
-
Reel Width6 in
-
ColorRed
-
TypeLow Pressure
-
Mounting TypeBench/Ceiling/Floor/Truck/Wall
-
Seal TypeFKM O-Ring
-
SeriesF80000
-
Hose Capacity3/4 in ID x 1-47/250 in OD x 50 ft L
-
Dimensions25-3/8 in H x 24 in W x 8-1/8 in D
-
Domestic/ImportDomestic
-
Drive TypeRetractable Spring
-
Swivel MaterialNickel Plated Steel
- Latch and ratchet are made of heavy duty cast aluminum with substantial surface area to light weight the opportunity for premature wear
- Full flow stress free swivel design - full flow swivel combines the highest grade seal design and materials with bearing areas to insure maximum service life
- Declutching arbor virtually eliminates possibility of spring damage due to reverse winding
- Only the highest quality spring steel is used and conditioned to insure there are no imperfections offering maximum service life
- Individually powder coated components offer the maximum protection from premature corrosion
- 150 deg F maximum temperature rating
- 3/4 in female NPTF inlet, 3/4 in male NPTF outlet
-
UNSPSC40142022
-
Package Description1/PK
-
Standards/ApprovalsPROP65: Cancer and Reproductive Harm www.P65Warnings.ca.gov
-
