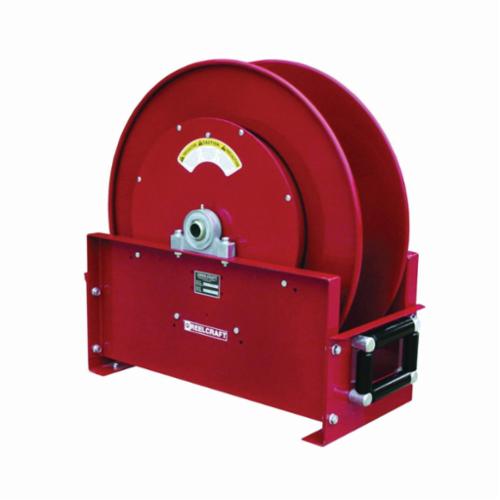

Reelcraft 3/4" X 100' W/O HOSE HOSE REELS REC D-9305-OLP-BW
The series 9000 mobile base reels offer the greatest amount of stability for high volume air, water, fuel and petroleum. Ideal for portable service trucks, permanent service or plant work areas. A durable baked on powder coat finish produces a rugged corrosion-resistant product suitable for a wide variety of heavy duty applications. Basic reels without hose will handle air, water, or oil, consult Reelcraft® for other applications.
-
BrandReelcraft®
-
UPC699567006640
-
Manufacturer Part NumberD9305 OLPBW
-
CountryUSA
-
FinishPowder Coated
-
MaterialSteel
-
Pressure Rating500 psi
-
ColorRed
-
TypeFull Flow Swivel
-
Mounting TypeTruck
-
Series9000
-
Hose Capacity3/4 in ID x 1.075 in OD x 100 ft L
-
Dimensions26.25 in L x 17.875 in W x 26.38 in H
-
Domestic/ImportDomestic
-
Drive TypeSpring
- Substantial base frame - full width frame has the greatest amount of mounting area and overall strength of reels within its class
- Full flow stress free swivel design - the full flow swivel combines the highest grade seal design and materials with bearing areas to insure maximum service life
- The hose is plumbed into the base to eliminate the risk of undue stress on the swivel
- Long life drive spring - declutching arbor virtually eliminates possibility of spring damage due to reverse winding
- Only the highest quality spring steel is used and conditioned to insure there are no imperfections offering maximum service life
- Robust latching mechanism - latch and ratchet are made of heavy duty cast aluminum with substantial surface area to limit the opportunity for premature wear
- 3/4 in female NPTF inlet
- 150 deg F maximum temperature rating
- Without hose
-
UNSPSC40142022
-
Package Description1/PK
-
Standards/ApprovalsPROP65: Cancer and Reproductive Harm www.P65Warnings.ca.gov
