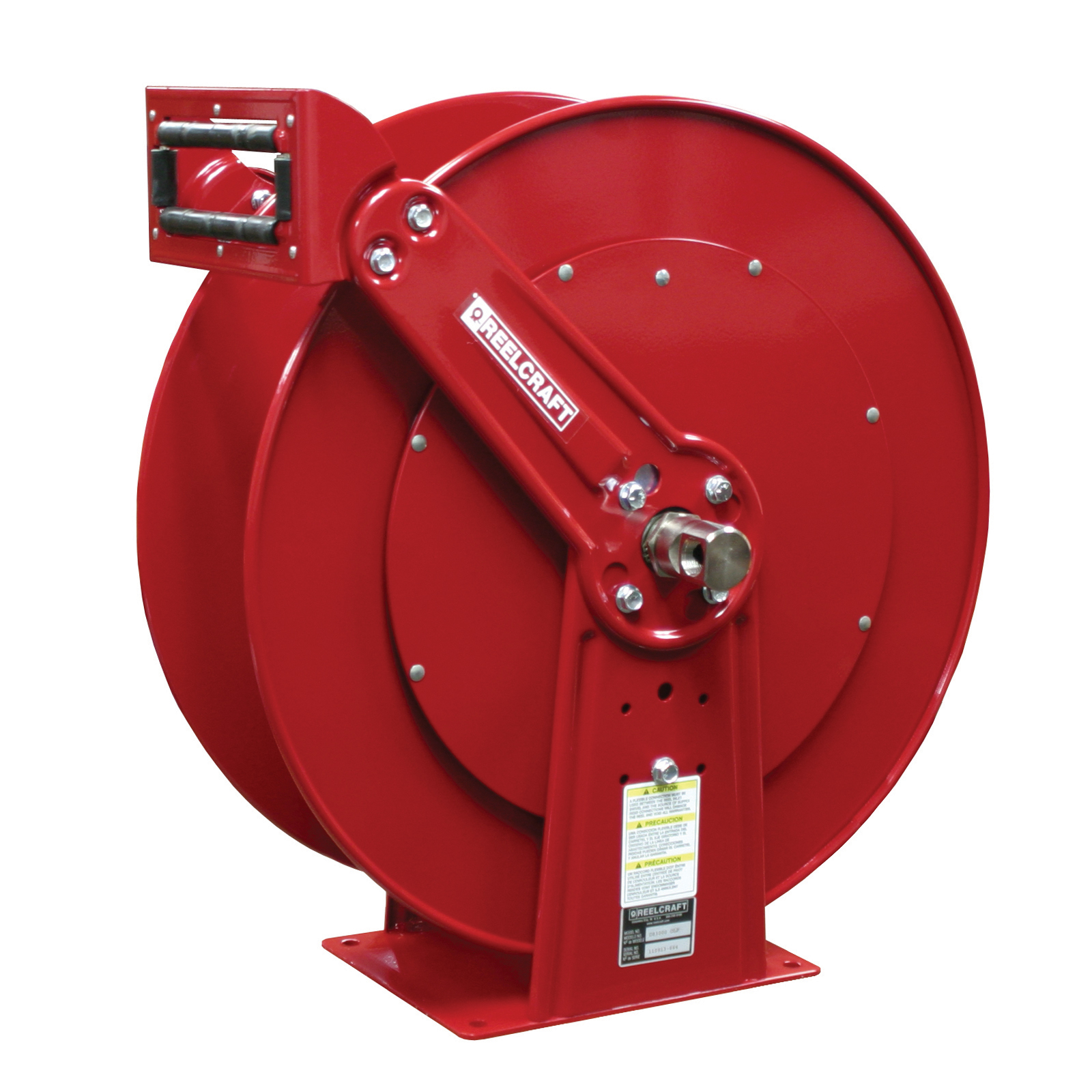

Reelcraft® FD84000 OLP F80000 Corrosion-Resistant Full Flow Swivel Hose Reel, 1 in ID x 1-1/2 in OD x 50 ft L Hose, 500 psi Pressure, Domestic
The Reelcraft® fuel delivery reels are equipped with low temp Buna seals and incorporate metal forms to insure the greatest possible strength and are ideal for mobile and fixed mount applications. These rugged reels are corrosion-resistant and suitable for a wide range of fuels including E85, diesel and gasoline, to name a few.
-
BrandReelcraft®
-
UPC699567003366
-
Manufacturer Part NumberFD84000 OLP
-
CountryUSA
-
FinishPowder Coated
-
MaterialCast Aluminum/Steel
-
Pressure Rating500 psi
-
ColorRed
-
TypeCorrosion-Resistant Full Flow Swivel
-
Mounting TypeFixed/Mobile
-
Wheel Diameter24 in
-
Seal TypeBuna-N
-
SeriesF80000
-
Hose Capacity1 in ID x 1-1/2 in OD x 50 ft L
-
Dimensions24 in L x 14-1/4 in W x 25-3/8 in H
-
Domestic/ImportDomestic
-
Drive TypeSpring
-
Swivel MaterialSteel
- Robust latching mechanism - latch and ratchet are made of heavy duty cast aluminum with substantial surface area to limit the opportunity for premature wear
- Full flow stress free swivel design - the full flow swivel combines the highest grade seal design and materials with bearing areas to insure maximum service life
- Long life drive spring - declutching arbor virtually eliminates possibility of spring damage due to reverse winding
- Only the highest quality spring steel is used and conditioned to insure there are no imperfections offering maximum service life
- Quality finish and corrosion-resistant - individually powder coated components offer the maximum protection from premature corrosion
- 1 in female NPTF inlet
- 150 deg F maximum temperature rating
- Without hose
-
UNSPSC40142022
-
Package Description1/PK
-
Standards/ApprovalsPROP65: Cancer and Reproductive Harm www.P65Warnings.ca.gov
