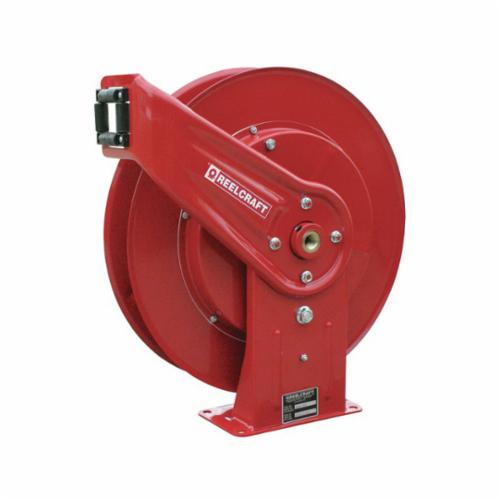

Reelcraft 1/2" W/O HOSE AIR/WATER HOSE REELS REC 7800-OLP
Reelcraft's series 7000 is very robust and ideal for the most demanding applications. The reel's base and guide arm are formed from high grade steel and engineered with structural forms and gussets to yield the greatest amount of strength. The standard low-pressure hose is for air or water service only. The basic reel without hose can be used for air, water or oil. Consult Reelcraft® for other products and hoses. Guide arm adjusts to 3 positions. .
-
BrandReelcraft®
-
UPC699567013051
-
Manufacturer Part Number7800 OLP
-
CountryUSA
-
FinishPowder Coated
-
MaterialReinforced Stainless Steel
-
Pressure Rating500 psi
-
Reel Diameter19-3/4 in
-
Reel Width3-7/8 in
-
ColorRed
-
TypeHeavy Duty Low Pressure
-
Mounting TypeBench/Ceiling/Floor/Truck/Wall
-
Seal TypeAflas®
-
Series7000
-
Hose Capacity1/2 in ID x 3/4 in OD x 50 ft L
-
Dimensions20-1/4 in H x 7 in W x 19-3/4 in D
-
Domestic/ImportDomestic
-
Drive TypeRetractable Spring
-
Swivel MaterialNickel Plated Steel
- Steel guide arm and base are stamped with ribs and gussets to insure maximum strength and lightest possible weight
- Full flow stress free swivel design - full flow swivel combines the highest grade seal design and materials with bearing areas to insure maximum service life, the hose is plumbed into the base to eliminate the risk of undue stress on the swivel
- Declutching arbor virtually eliminates possibility of spring damage due to reverse winding, only the highest quality spring steel is used and conditioned to insure there are no imperfections offering maximum service life
- Individually powder coated components offer the maximum protection from premature corrosion 1/2 in female NPTF inlet
- 1/2 in female NPTF outlet
-
UNSPSC40142022
-
Package Description1/PK
-
Standards/ApprovalsPROP65: Cancer and Reproductive Harm www.P65Warnings.ca.gov
-
