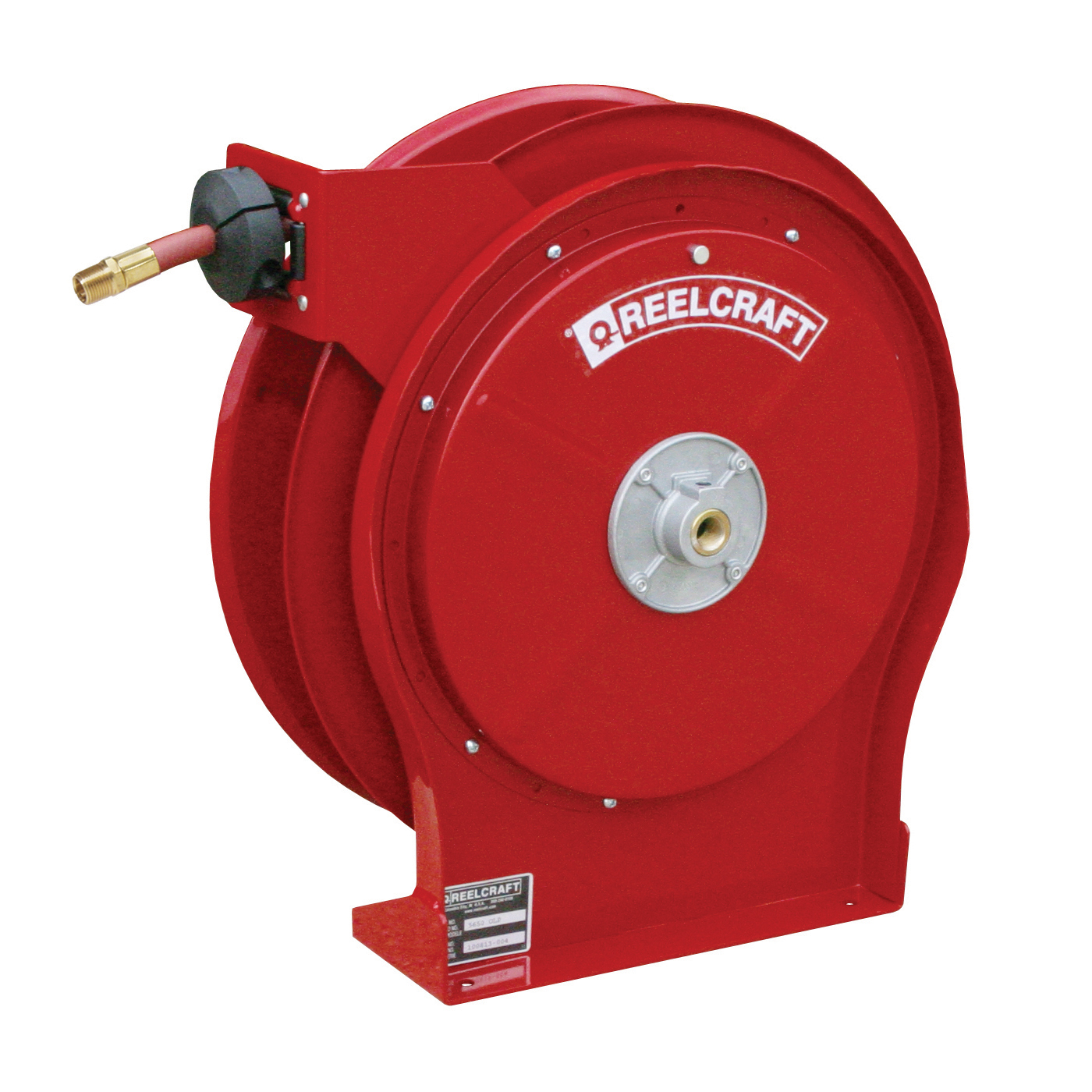

Reelcraft 1/2" X 25' AIR/WATER HOSE REELS REC 5825-OLP
Series 4000, 5000 and 5005 reels are all steel construction and compact for a wide range of applications with critical space requirements. A full flow shaft and swivel assures maximum product delivery. Guide arm adjusts to two positions.
-
BrandReelcraft®
-
UPC699567023319
-
Manufacturer Part NumberB5825 OLP
-
CountryUSA
-
FinishPowder Coated
-
MaterialReinforced Steel
-
Pressure Rating300 psi
-
ColorRed
-
TypeFull Flow Swivel Premium Duty
-
Seal TypeBuna-N
-
Series5000
-
Hose Capacity1/2 in ID x 3/4 in OD x 25 ft L
-

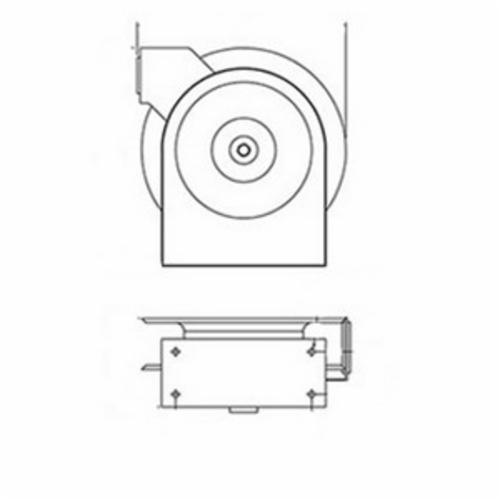

Dimensions13-1/2 in L x 6 in W x 14-1/2 in H
-
Domestic/ImportDomestic
-
Drive TypeSpring
-
Swivel MaterialSteel
-
Reel Diameter14 in
-
Reel Width2-1/2 in
-
Mounting TypeBench/Ceiling/Floor/Truck/Wall
- Reinforced steel - the robotically welded steel base offers maximum strength and consistent quality
- All steel components are powder coated for maximum corrosion resistance
- Full flow stress free swivel design - the full flow swivel combines the highest grade seal design and materials with bearing areas to insure maximum service life
- The hose is plumbed into the base to eliminate the risk of undue stress on the swivel
- Long life drive spring - declutching arbor virtually eliminates possibility of spring damage due to reverse winding
- Only the highest quality spring steel is used and conditioned to insure there are no imperfections offering maximum service life
- Ratchet latch - the latch is the traditional style with torsion spring
- 3/8 in female NPTF inlet
- 1/2 in male NPTF outlet
- 150 deg F maximum temperature rating
-
UNSPSC40142022
-
Package Description1/PK
-
Standards/ApprovalsPROP65: Cancer and Reproductive Harm www.P65Warnings.ca.gov
-
