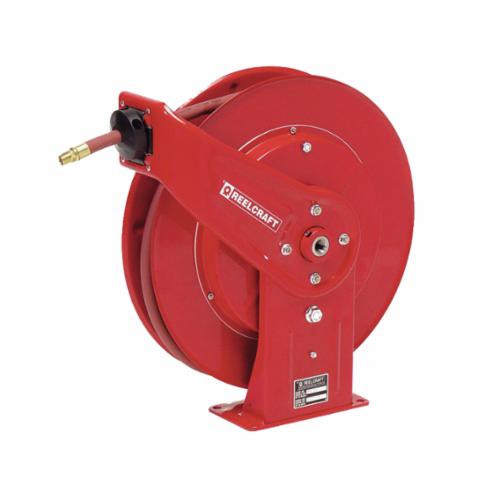

Reelcraft 1/2" X 50' AIR/WATER HOSE REELS REC 7850-OLP
Series 7000 is very robust and ideal for the most demanding applications. The reel's base and guide arm are formed from high grade steel engineered with structural forms and gussets to yield the greatest amount of strength. The standard low pressure hose is for air or water service only. The basic reel without hose can be used for air, water or oil. Guide arm adjusts to three positions.
-
BrandReelcraft®
-
UPC699567000228
-
Manufacturer Part Number7850 OLP
-
CountryUSA
-
FinishPowder Coated
-
MaterialReinforced Stainless Steel
-
Pressure Rating300 psi
-
Reel Diameter19-3/4 in
-
Reel Width3-7/8 in
-
ColorRed
-
TypeHeavy Duty Low Pressure
-
Mounting TypeBench/Ceiling/Floor/Truck/Wall
-
Seal TypeBuna-N
-
Series7000
-
Hose Capacity1/2 in ID x 3/4 in OD x 50 ft L
-
Dimensions20-1/4 in H x 19-3/4 in W x 7 in D
-
Domestic/ImportDomestic
-
Drive TypeRetractable Spring
-
Swivel MaterialSteel
- Steel guide arm and base are stamped with ribs and gussets to insure maximum strength and lightest possible weight
- Full flow stress free swivel design - full flow swivel combines the highest grade seal design and materials with bearing areas to insure maximum service life, the hose is plumbed into the base to eliminate the risk of undue stress on the swivel
- Declutching arbor virtually eliminates possibility of spring damage due to reverse winding, only the highest quality spring steel is used and conditioned to insure there are no imperfections offering maximum service life
- Individually powder coated components offer the maximum protection from premature corrosion 1/2 in female NPTF inlet
- 1/4 in male NPTF outlet
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 38L509 |
-
UNSPSC40142022
-
Package Description1/PK
-
Standards/ApprovalsPROP65: Cancer and Reproductive Harm www.P65Warnings.ca.gov
-
