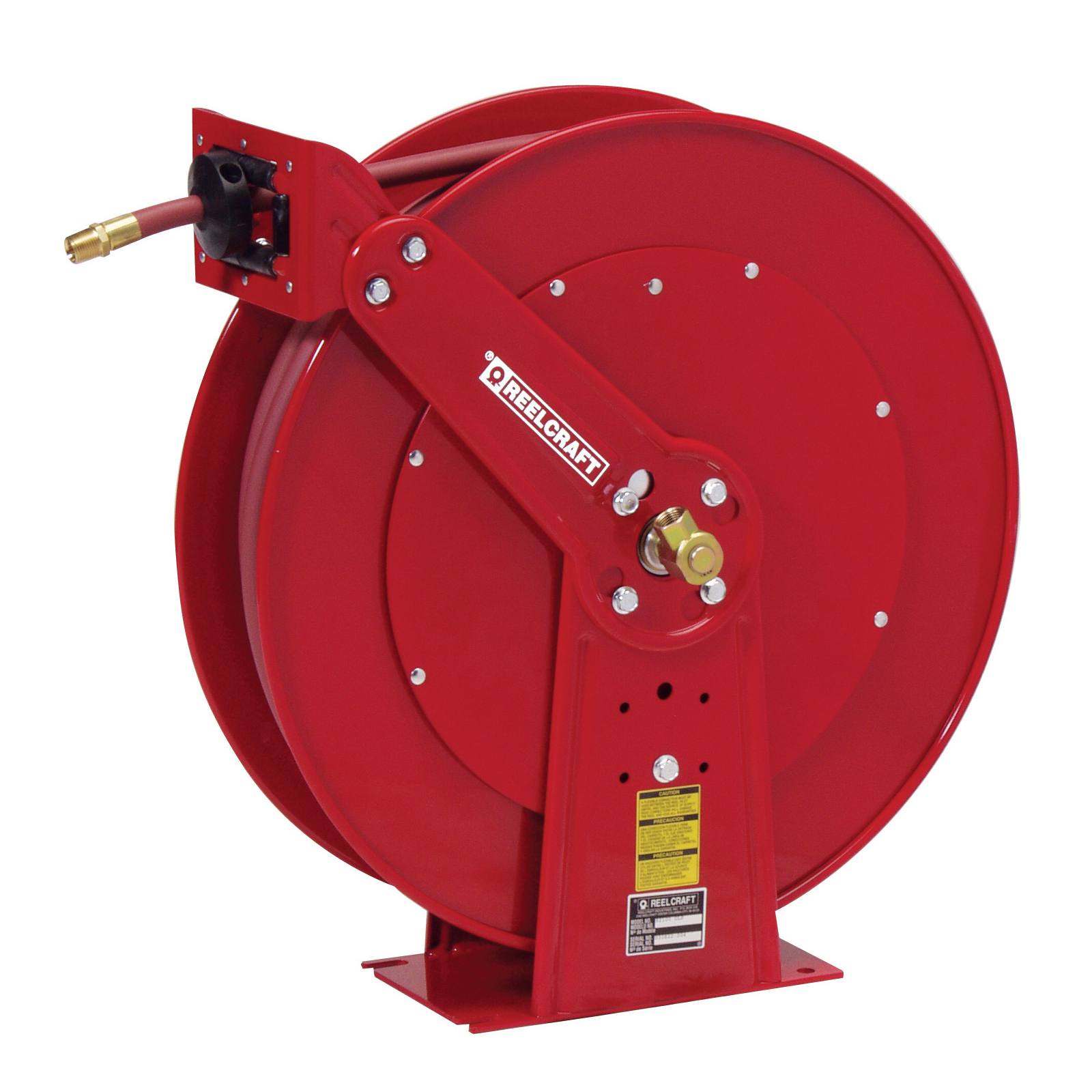

Reelcraft® 82075 OMP 80000 Dual Pedestal Heavy Duty Medium Pressure Hose Reel With Hose, 1/2 in ID x 17/20 in OD x 75 ft L Hose, 2000 psi Pressure, 24 in Dia x 6 in W Reel, Domestic
The series 80000 spring retractable reels incorporate the most current design and manufacturing techniques to guarantee long life and trouble-free performance. All -steel construction and a baked on powder coat finish combine to produce a rugged, corrosion-resistant product suitable for a wide variety of heavy duty applications.
-
BrandReelcraft®
-
UPC699567001706
-
Manufacturer Part Number82075 OMP
-
CountryUSA
-
FinishPowder Coated
-
MaterialReinforced Stainless Steel
-
Pressure Rating2000 psi
-
Reel Diameter24 in
-
Reel Width6 in
-
ColorRed
-
TypeDual Pedestal Heavy Duty Medium Pressure
-
Mounting TypeCeiling/Truck/Wall
-
Seal TypeBuna-N
-
Series80000
-
Hose Capacity1/2 in ID x 17/20 in OD x 75 ft L
-
Dimensions25-3/8 in H x 24 in W x 10-1/2 in D
-
Domestic/ImportDomestic
-
Drive TypeRetractable Spring
-
Swivel MaterialSteel
- Steel guide arm and dual pedestal base are stamped with ribs and gussets and robotically welded to insure maximum strength and lightest possible weight, the unitized cast fluid path and ratchet reduce wearable parts and ease of assembly
- Full flow stress free swivel design - full flow swivel combines the highest grade seal design and materials with bearing areas to insure maximum service life
- Unitized cast aluminum fluid path with built-in declutching arbor virtually eliminates possibility of leakage and spring damage due to reverse winding, only the highest quality spring steel is used and conditioned to insure there are no imperfections offering maximum service life
- Individually powder coated components offer the maximum protection from premature corrosion
- Hose anti latch-out feature ensures hose retracts every time
- Containerized spring assembly provides safer and easier handling during maintenance
- Two sealed ball bearings for smooth rotation of main shaft
- 1/2 in female NPTF inlet, 1/2 in male NPTF outlet
-
UNSPSC40142022
-
Package Description1/PK
-
Standards/ApprovalsPROP65: Cancer and Reproductive Harm www.P65Warnings.ca.gov
-
