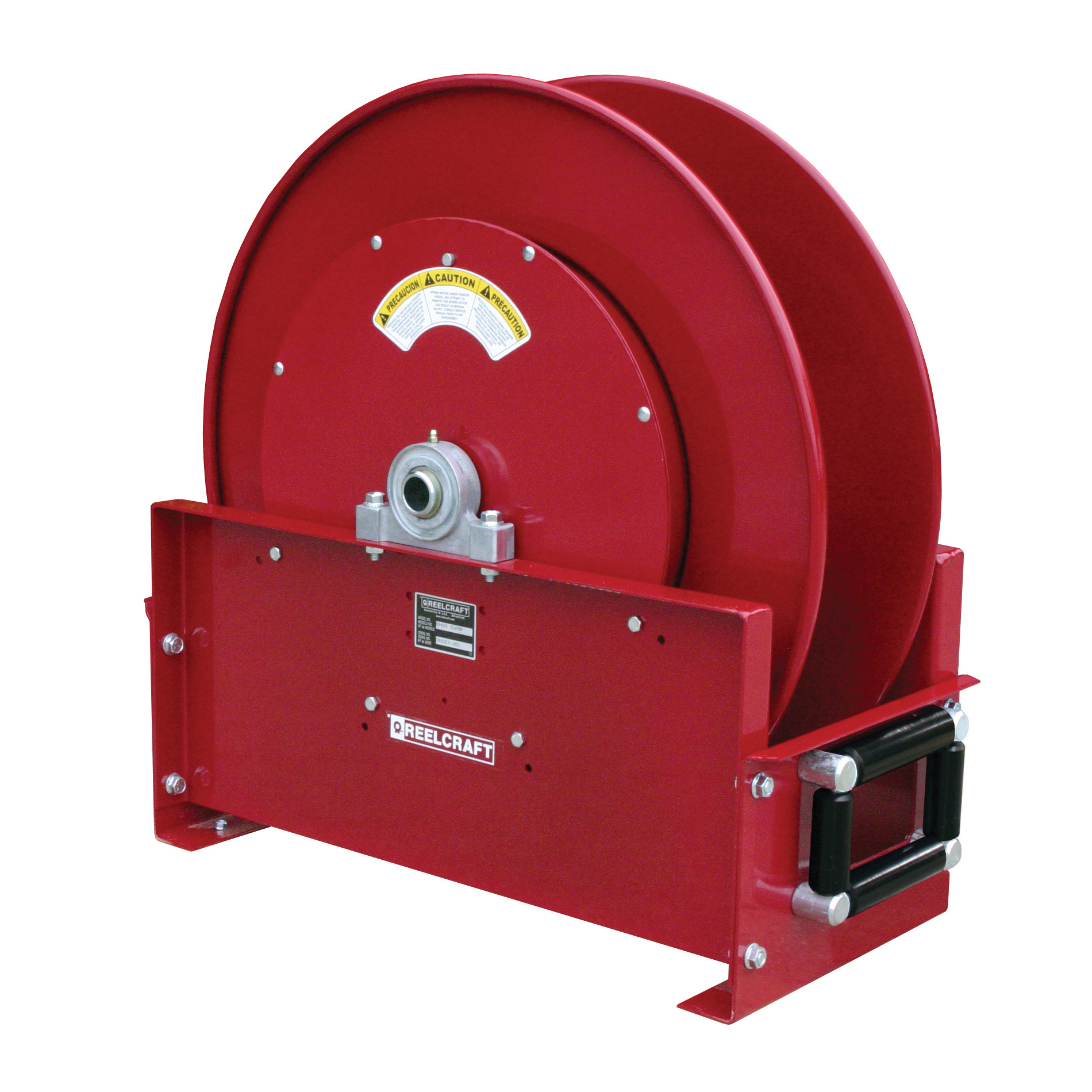

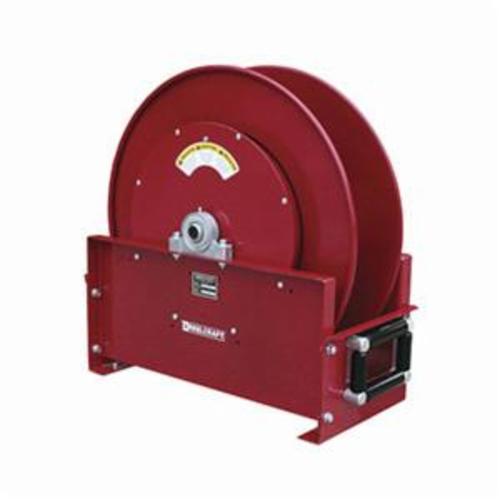

Reelcraft DIESEL FUEL HOSE REEL (W/O HOSE) REC FE-9400-OLPBW
The series 9000 mobile base reels offer the greatest amount of stability for thigh volume fuel and petroleum. Ideal for portable service trucks, permanent service or plant work areas. A durable baked on powder coat finish produces a rugged corrosion-resistant product suitable for a wide variety of heavy duty applications.
-
BrandReelcraftĀ®
-
UPC699567003441
-
Manufacturer Part NumberFE9400 OLPBW
-
CountryUSA
-
FinishPowder Coated
-
MaterialSteel
-
Pressure Rating500 psi
-
TypeFull Flow Swivel
-
Mounting TypeTruck
-
SeriesF9000
-
Hose Capacity1 in ID x 50 ft L
-
Dimensions26.25 in L x 16.75 in W x 26.38 in H
-
Domestic/ImportDomestic
-
Drive TypeSpring
- Substantial base frame - full width frame has the greatest amount of mounting area and overall strength of reels within its class
- Full flow stress free swivel design - the full flow swivel combines the highest grade seal design and materials with bearing areas to insure maximum service life
- The hose is plumbed into the base to eliminate the risk of undue stress on the swivel
- Long life drive spring - declutching arbor virtually eliminates possibility of spring damage due to reverse winding
- Only the highest quality spring steel is used and conditioned to insure there are no imperfections offering maximum service life
- Quality finish and corrosion-resistant - individually powder coated components offer the maximum protection from premature corrosion
- 1 in female NPTF inlet
- 150 deg F maximum temperature rating
- Without hose
-
UNSPSC40142022
-
Package Description1/PK
-
Standards/ApprovalsPROP65: Cancer and Reproductive Harm www.P65Warnings.ca.gov
