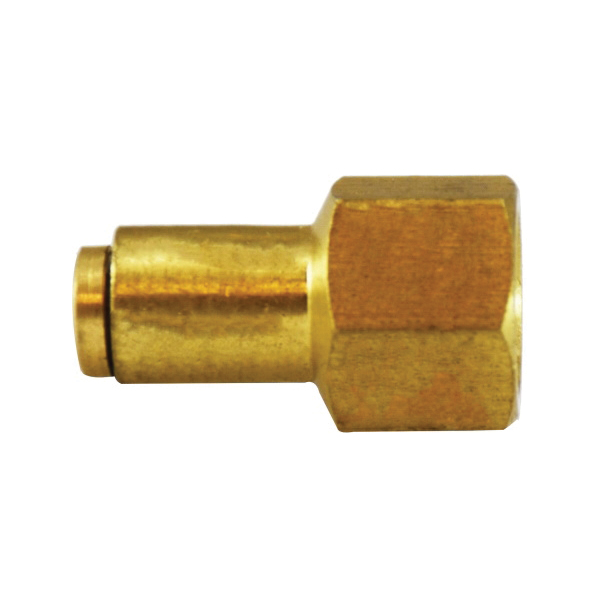

HCI Preferred Supplier 20032 Connector, 1/8 in Nominal, Push-In x FNPTF End Style, Brass
HCI Preferred Supplier 20032 Connector, 1/8 in Nominal, Push-In x FNPTF End Style, Brass
-
BrandGeneric
-
Manufacturer Part Number20032
-
CountryUSA
-
Temperature Rating-10 to 200 deg F
-
MaterialBrass
-
Fitting/Connector TypeAdapter
-
Nominal Size1/8 in
-
Hex Size0.56 in
-
Dimensions0.96 in L
-
Domestic/ImportImport
-
End StylePush-In x FNPTF
- Quick connect simply push tubing in, no tools, saves up to 75% of assembly time of standard compression fittings
- Quick disconnect, hold two fingers on insert and pull tubing out, no tools required
- Reuseable, connect and disconnect numerous times
- Full flow design, provides up to 60% more flow area than conventional fittings with internal tube supports
- Versatile, BunaN O-rings standard
- Secure tube retention, pulling on tubing only serves to tighten the connection
- Self contained assembly, no loose parts, brass body and insert
- PRE-APPLIED TEFLON ® based pipe sealant on all male pipe threads, saving customer additional labor
- /- 0.02 tolerance on all dimension
- Fitting is suitable for use up to the maximum working pressure of the plastic tubing used
- NPTF with Teflon® based sealant pre-applied
-
UNSPSC40183110
-
Package Description1/PK
-
