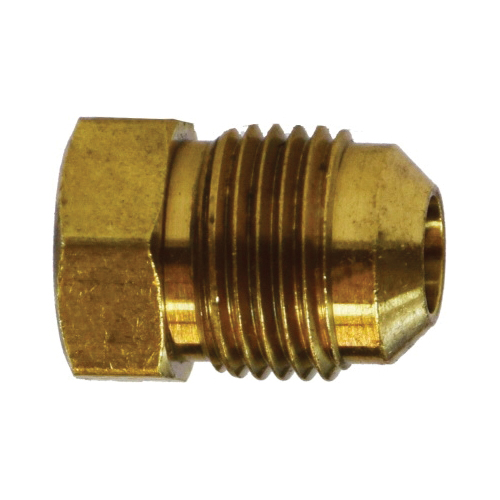

HCI Preferred Supplier 10066 Plug, 3/8 in Nominal, SAE Flare Threaded UNF, Brass
HCI Preferred Supplier 10066 Plug, 3/8 in Nominal, SAE Flare Threaded UNF, Brass
-
BrandGeneric
-
Manufacturer Part Number10066
-
CountryUSA
-
Temperature Rating-65 to 250 deg F
-
Thickness0.032 in Wall
-
MaterialBrass
-
Fitting/Connector TypePlug
-
Pressure Rating1000 psi
-
Nominal Size3/8 in
-
Hex Size0.62 in
-
Dimensions0.88 in L
-
Domestic/ImportDomestic
-
End StyleSAE Flare Threaded UNF
- Good vibration resistance, use long nut when greater vibration resistance is required
- /- 0.03 tolerance on all dimensions
-
UNSPSC40183106
-
Package Description1/PK
-
Standards/ApprovalsASA|ASME|MS and SAE
-
Catalog
-
Full Engineering Drawing
