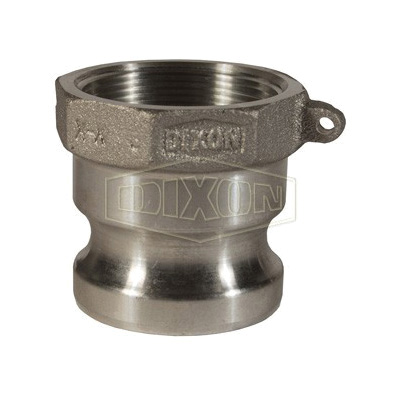

DIXON 125-A-AL Cam and Groove Fitting, 1-1/4 in Nominal, Male Adapter x Female Male Adapter x FNPT End Style, Aluminum
Dixon® 125-A-AL Boss-Lock™ Type A Cam and Groove Adapter, 1-1/4 in, Male Adapter x FNPT, Aluminum
-
BrandGeneric
-
Manufacturer Part Number61913
-
CountryUSA
-
UPC822353032701
-
MaterialAluminum
-
Fitting/Connector TypeAdapter
-
Nominal Size1-1/4 in
-
Domestic/ImportImport
-
End StyleMale Adapter x Female Male Adapter x FNPT
-
Temperature Rating70 deg F
-
Pressure Rating250 psi
-
TypeType A
-
SeriesBoss-Lock™
-
Dimensions2 in W
-
Length2-7/32 in
- Precision machined to rigid tolerances
- Under no circumstances should cam and groove couplings be used for compressed air or steam service!
- Pressure rating is based on the seal of the mating part
- Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70 deg F with a standard seal installed
- 250 psi at ambient temperature 70 deg F pressure
- Warning: this product contains a chemical known to the state of California to cause birth defects or other reproductive harm
- Do not use in connection with drinking water
- Wash hands after handling
- 356T6 Aluminum
| Competitor Name | Competitor Part Number |
|---|---|
| Ferguson | D125AAL |
-
UNSPSC40141734
-
Package Description1/PK
-
Standards/ApprovalsMil-Spec A-A-59326|ASTM spec|PROP65:This product can expose you to chemicals, including lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm
-
Catalog
-
Specification Sheet
-
Technical Bulletin
