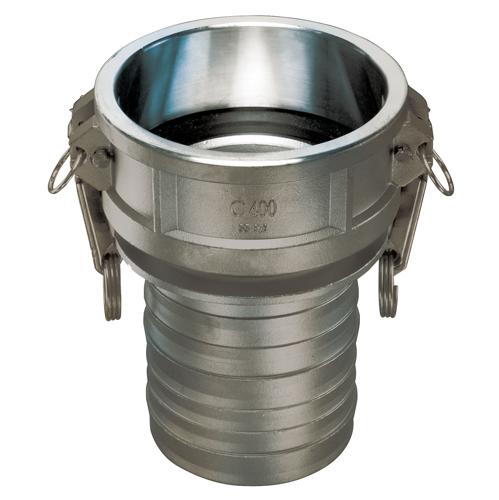

DIXON 150-CSS Coupling, 1-1/2 in Nominal, Female Coupler x Hose Shank End Style, Stainless Steel, Import
Dixon® 150-C-SS Type-C Cam and Groove Coupler, 1-1/2 in Nominal, Female Coupler x Hose Shank End Style, 316 Stainless Steel, Domestic
-
BrandKuriyama
-
UPC822353033876
-
Manufacturer Part NumberSS-C150
-
CountryUSA
-
MaterialStainless Steel
-
Fitting/Connector TypeAdapter
-
Pressure Rating250 psi
-
TypePart C
-
Nominal Size1-1/2 in
-
Domestic/ImportImport
-
End StyleFemale Coupler x Hose Shank
-
Length4-13/16 in
- High quality design made to withstand rigorous applications found in industrial markets

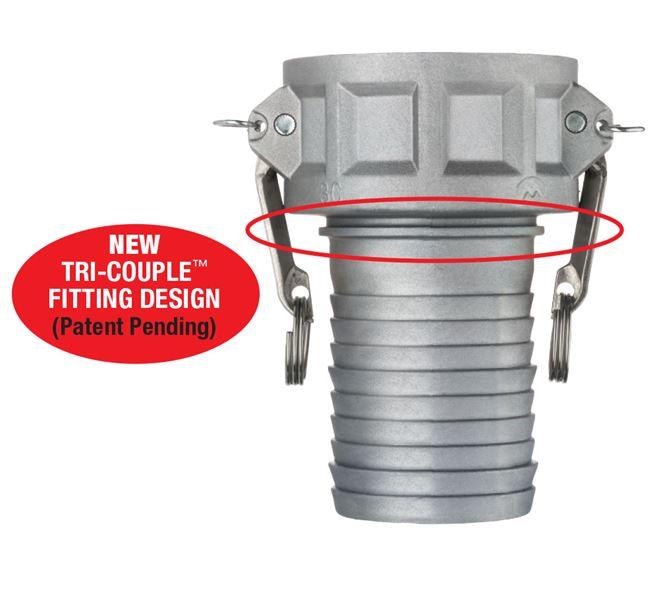

- Tri-CoupleT
- Stainless steel alloy is analyzed on every melt, and specially designed for high tensile strength, rigidity, and impact resistance
- Recess holds gasket firmly in place - ensures proper placement
- Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70 deg F with a standard seal installed
- Only use the crimp style shanks with the crimp style sleeves and ferrules, due to differences in dimensions and tolerances for safety reasons, do not interchange other manufacturer's products with Dixon products
- Warning: this product contains a chemical known to the state of California to cause birth defects or other reproductive harm
- Do not use in connection with drinking water
- Wash hands after handling
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 58DF97 |
-
Package DescriptionEACH
-
Standards/ApprovalsMil-Spec A-A-59326|ASTM spec|PROP65:This product can expose you to chemicals, including lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm
-
UNSPSC40141734
-
WarrantyLimited
-
Catalog
-
Specification Sheet
-
Technical Bulletin
