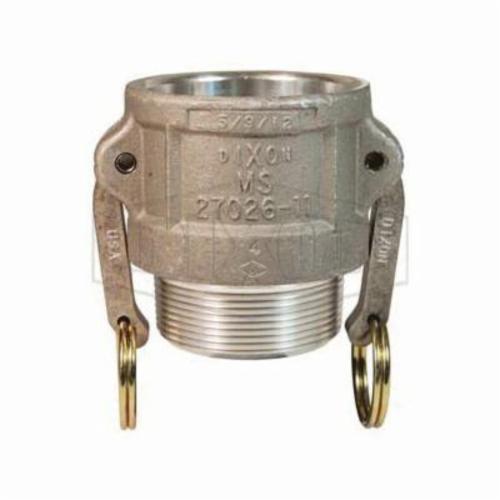

Dixon® 250-B-AL Type B Cam and Groove Coupler, 2-1/2 in Nominal, Female Coupler x MNPT End Style, Aluminum, Domestic
Dixon® 250-B-AL Type B Cam and Groove Coupler, 2-1/2 in Nominal, Female Coupler x MNPT End Style, Aluminum, Domestic
-
BrandDixon®
-
UPC089109750313
-
Manufacturer Part Number250-B-AL
-
CountryUSA
-
MaterialAluminum
-
Fitting/Connector TypeCoupling
-
Pressure Rating150 psi
-
TypeType B
-
Nominal Size2-1/2 in
-
Domestic/ImportDomestic
-
End StyleFemale Coupler x MNPT
- Precision machined to rigid tolerances
- Stainless pins will not rust or bind, providing great strength and safety
- Recess holds gasket firmly in place - ensures proper placement
- Buna-N gasket
- Durable stainless steel cam arm pins
- Produced to interchange with all product produced to commercial item description A-A-59326D
- Parts are manufactured in Canada, replacement handle: part no CARP12BZ
- Under no circumstances should cam and groove couplings be used for compressed air or steam service!
- Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70 deg F with a standard seal installed
- Warning: this product contains a chemical known to the state of California to cause birth defects or other reproductive harm
- Do not use in connection with drinking water
- Wash hands after handling
-
UNSPSC40141734
-
Package Description10/BX
-
WarrantyLimited
-
