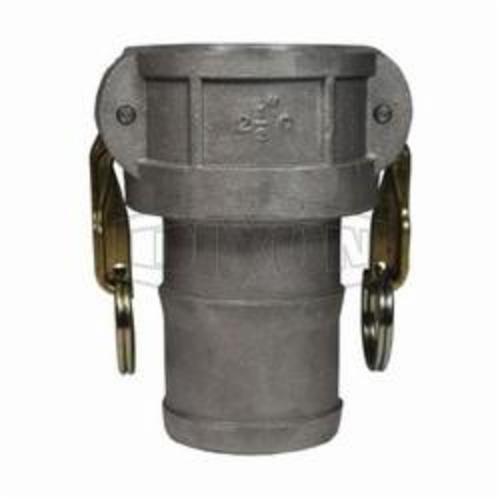

DIXON 250-CA1 6193X Cam and Groove Coupler, 2-1/2 in Nominal, Hose Shank x Female Coupler End Style, Aluminum
HCI Preferred Supplier CGC-250-A1 6193X Cam and Groove Coupler, 2-1/2 in Nominal, Hose Shank x Female Coupler End Style, Aluminum
-
BrandGeneric
-
Manufacturer Part NumberCGC-250-A1
-
CountryUSA
-
UPC628020003230
-
MaterialAluminum
-
Fitting/Connector TypeCoupling
-
Pressure Rating150 psi
-
TypePart C
-
Nominal Size2-1/2 in
-
Domestic/ImportImport
-
End StyleHose Shank x Female Coupler
-
Temperature Rating-40 to 212 deg F
-
Series6193X
- Used or worn couplings or extreme temperature conditions will result in reduced operating pressures
- Working temperature ratings are based on new cam and groove couplings at ambient temperatures
- Recess holds gasket firmly in place - ensures proper placement
- Long shank design allows proper banding, thus eliminating the major cause of hose damage
- Buna-N gasket
- Durable stainless steel cam arm pins
- Supplied with safety clips
- Parts are manufactured in Canada, replacement handle: part no CARP12BZ
- Produced to interchange with all product produced to commercial item description A-A-59326D
- Under no circumstances should cam and groove couplings be used for compressed air or steam service!
- Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70 deg F with a standard seal installed
- Warning: this product contains a chemical known to the state of California to cause birth defects or other reproductive harm
- Do not use in connection with drinking water
- Wash hands after handling
-
UNSPSC40141734
-
Package Description10/BX
-
Warranty1 Year
-
Standards/ApprovalsMIL Specification A-A-59326|ASTM Specified|ASTM Specified|MIL A-A-59326
-
