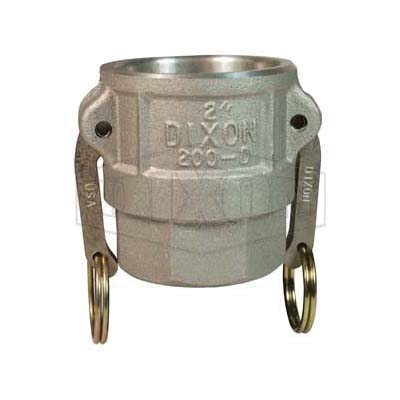

Dixon 1/2" ALUM CAM AND GROOVE COUPLERS DXN 50-D-AL

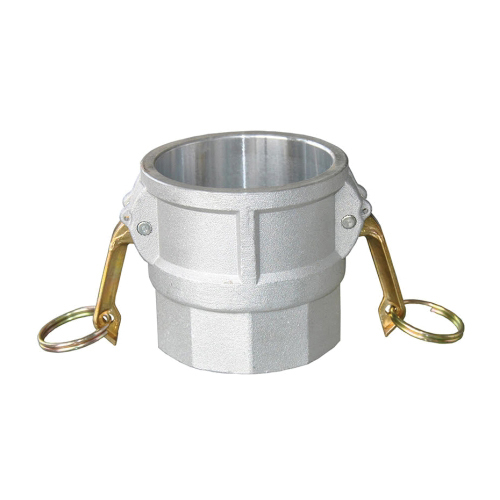

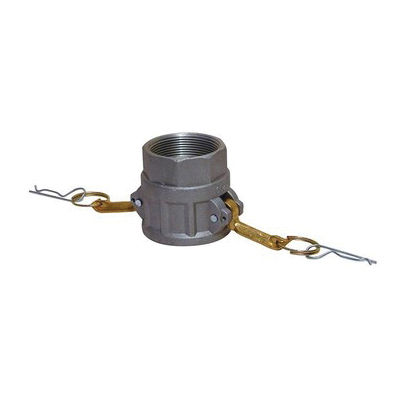

HCI Preferred Supplier CGD-050-A1 6194X Part D Cam and Groove Coupler, 1/2 in Nominal, FNPT x Female Coupler End Style, Aluminum
-
BrandGeneric
-
UPC628020003346
-
Manufacturer Part NumberCGD-050-A1
-
CountryUSA|Canada
-
Temperature Rating-40 to 212 deg F
-
MaterialAluminum
-
Fitting/Connector TypeCoupling
-
Pressure Rating250 psi
-
TypePart D
-
Nominal Size1/2 in
-
Series6194X
-
Domestic/ImportImport
-
End StyleFNPT x Female Coupler
-
Length2-1/32 in
- Used or worn couplings or extreme temperature conditions will result in reduced operating pressures
- Working temperature ratings are based on new cam and groove couplings at ambient temperatures

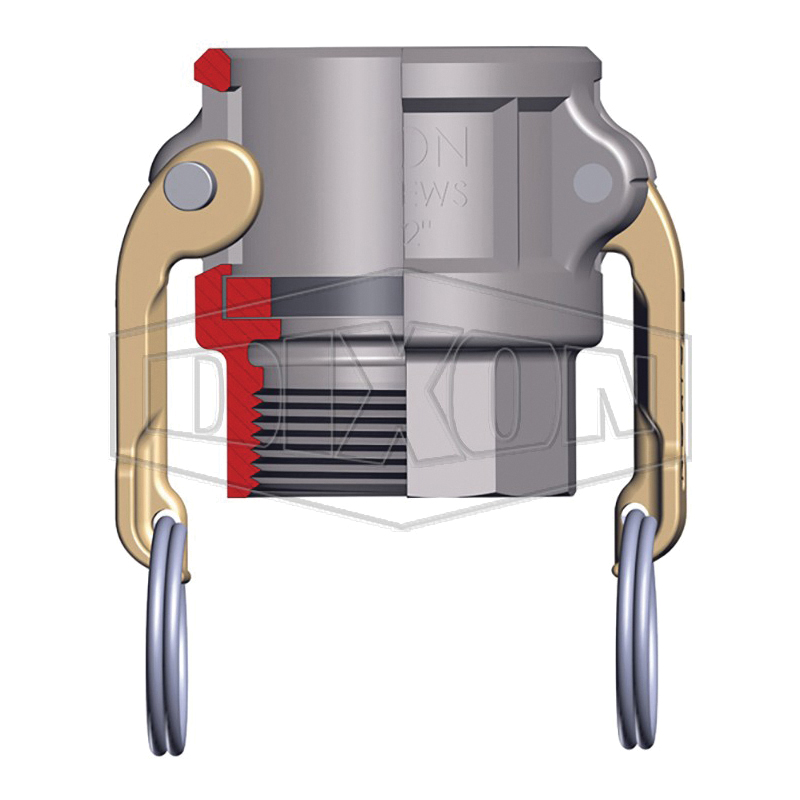

- Recess holds gasket firmly in place - ensures proper placement
- Long shank design allows proper banding, thus eliminating the major cause of hose damage
- Finger rings are not supplied
- Under no circumstances should cam and groove couplings be used for compressed air or steam service!
- Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70 deg F with a standard seal installed
- 150 psi at ambient temperature 70 deg F pressure
- Dixon and boss-lock cam and groove couplings do not interchange in the 1/2 in size
- Warning: this product contains a chemical known to the state of California to cause birth defects or other reproductive harm
- Do not use in connection with drinking water
- Wash hands after handling
- 356T6 Aluminum
-
Package Description10/BX
-
Standards/ApprovalsASTM Certified|ASTM Specified|MIL A-A-59326
-
UNSPSC40141734
-
Warranty1 Year
-
