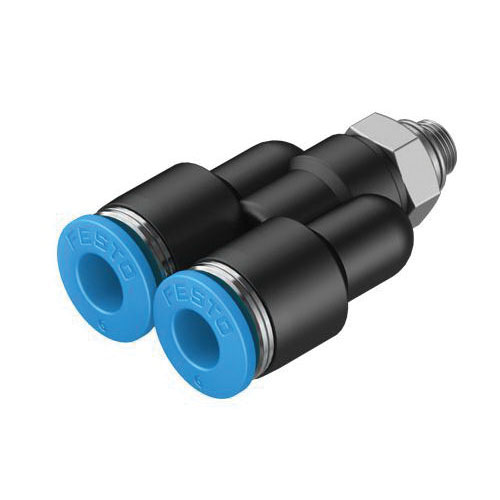

Festo QSYM-56 Standard Wye Fitting With External Hexagon Socket, 2.4 mm Nominal, M5 MNPT x 6 mm Push-In Tube, -0.95 to 14 bar Pressure, Polybutylene Terephthalate
Festo 190674 QSY Standard Wye Fitting With External Hexagon Socket, 2.4 mm Nominal, M5 MNPT x 6 mm Push-In Tube, -0.95 to 14 bar Pressure, Polybutylene Terephthalate
-
BrandFesto
-
Manufacturer Part Number190674
-
CountryUSA
-
Temperature Rating-10 to 80 deg C
-
MaterialPolybutylene Terephthalate
-
Pressure Rating-0.95 to 14 bar
-
Nominal Size2.4 mm
-
Hex Size10 mm
-
SeriesQSY Standard
-
Length38.3 mm
-
End StyleM5 MNPT x 6 mm Push-In Tube
- The stainless steel retaining claw within the fitting holds the tubing securely without damaging its surface
- Vibration and pressure surges are safely absorbed
- A nitrile rubber sealing ring guarantees a perfect seal between standard OD tubing and the body of the fitting
- Standard tubing is suitable for use with compressed air and vacuum
- The fitting can be aligned after assembly
- Cylindrical metric thread is comparable with G thread
- Sealing on front face
- 360 deg orientable
- Pneumatic connection
-
Alternative Part NumberQSY-M5-6
-
UNSPSC24110000
-
Package Description10/PK
-
Standards/ApprovalsFN 940070 CRC-1 Standard|RoHS Compliant
-
Warranty1 Year
-
Specification Sheet
-
Technical Bulletin
-
Instruction/Installation Manual
-
Catalog
