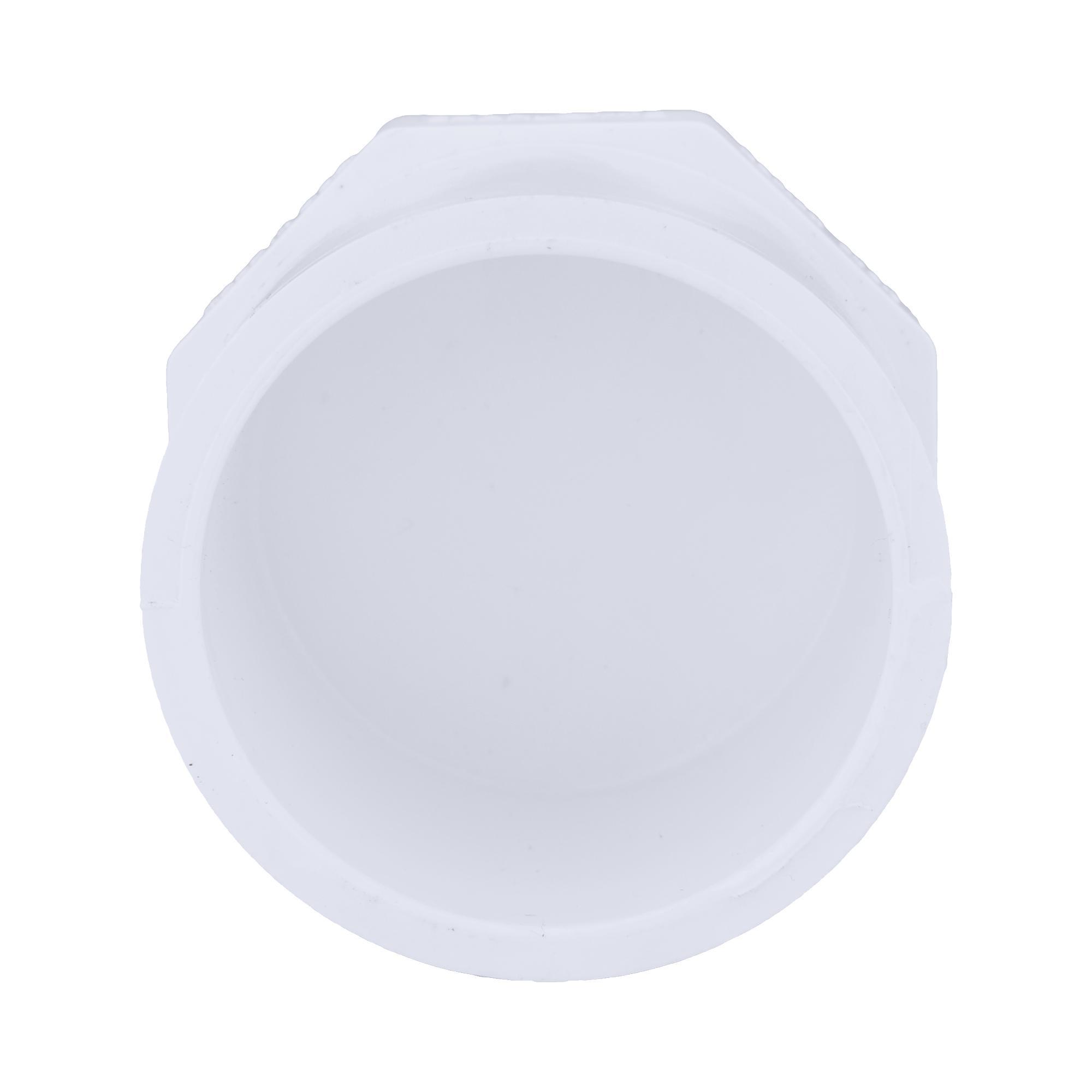

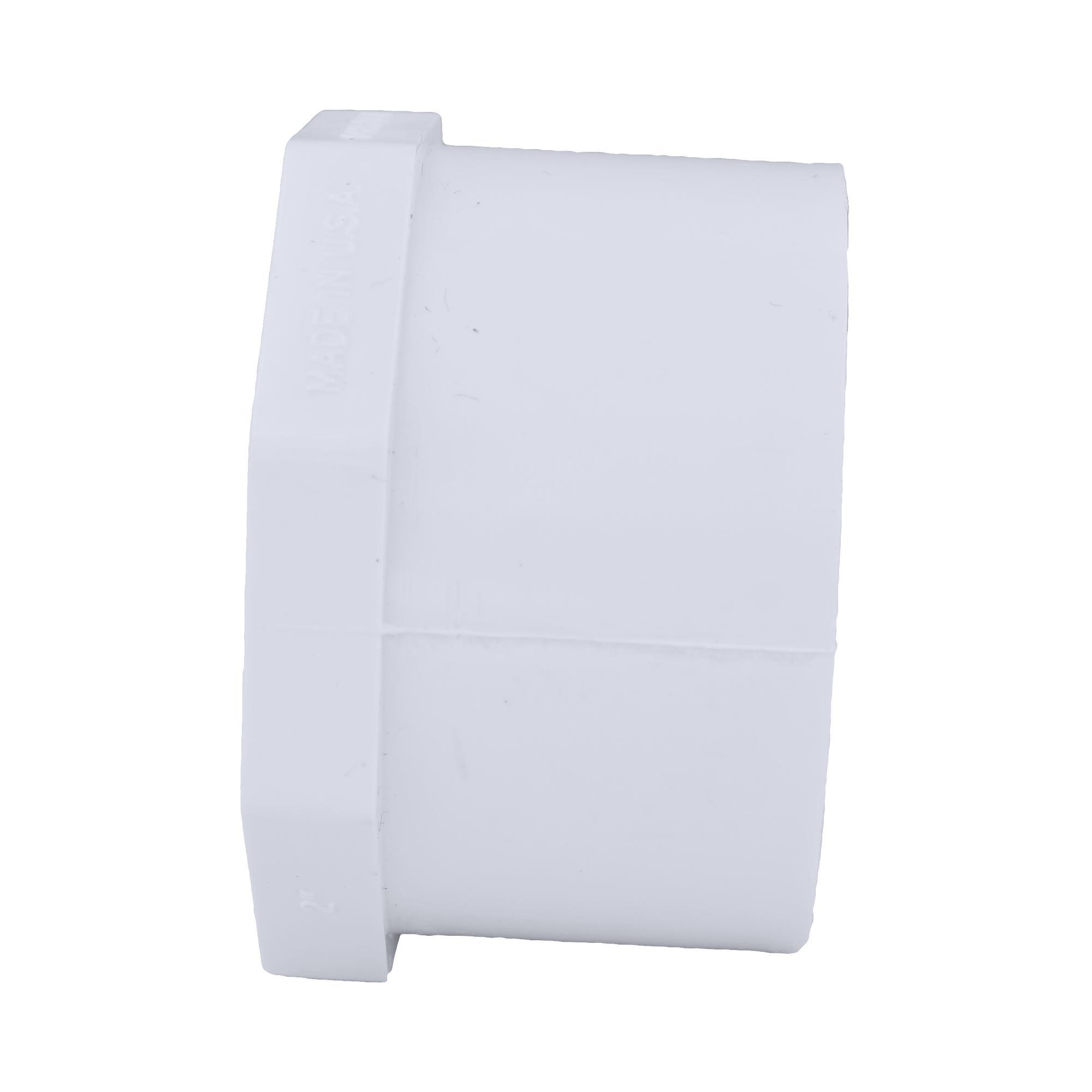

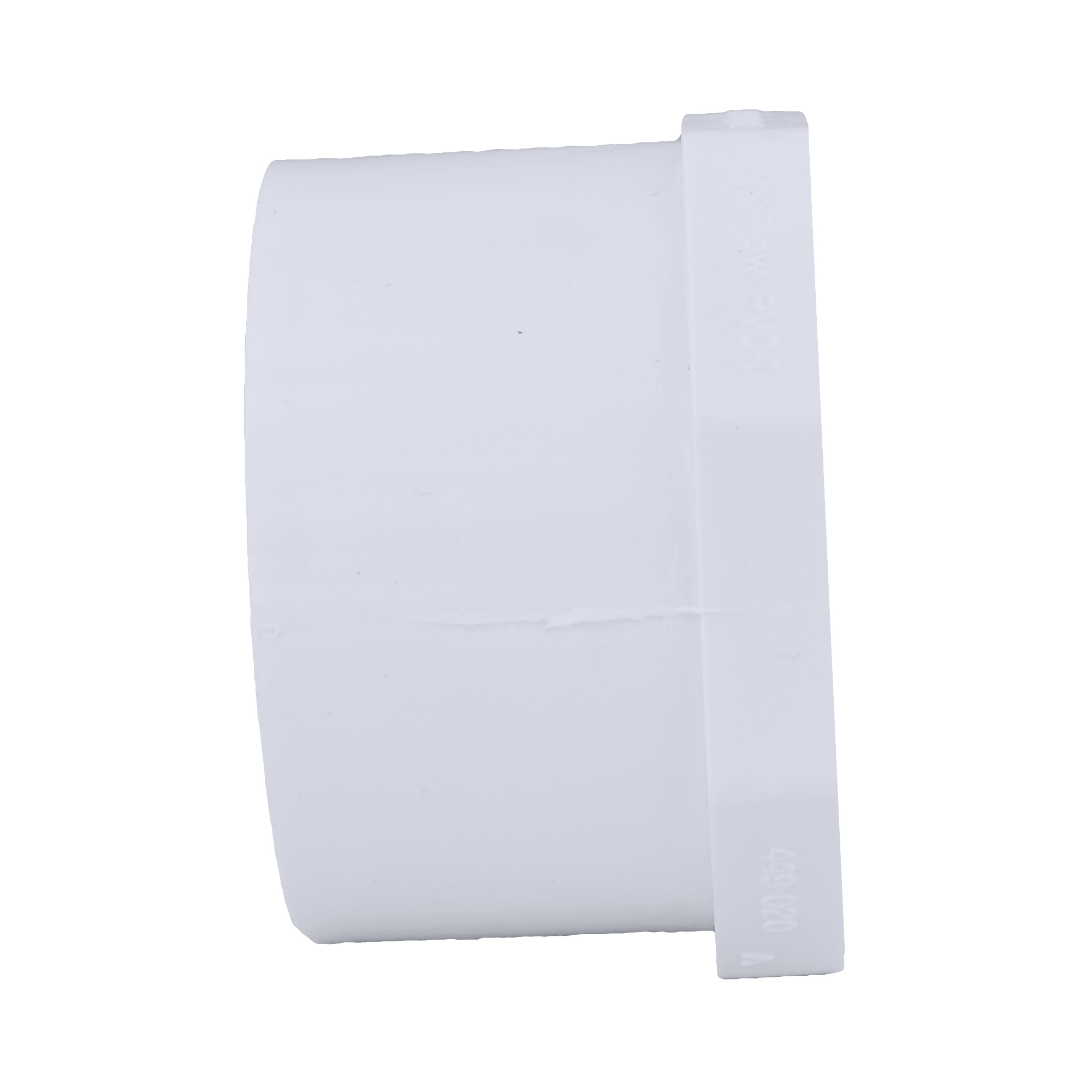

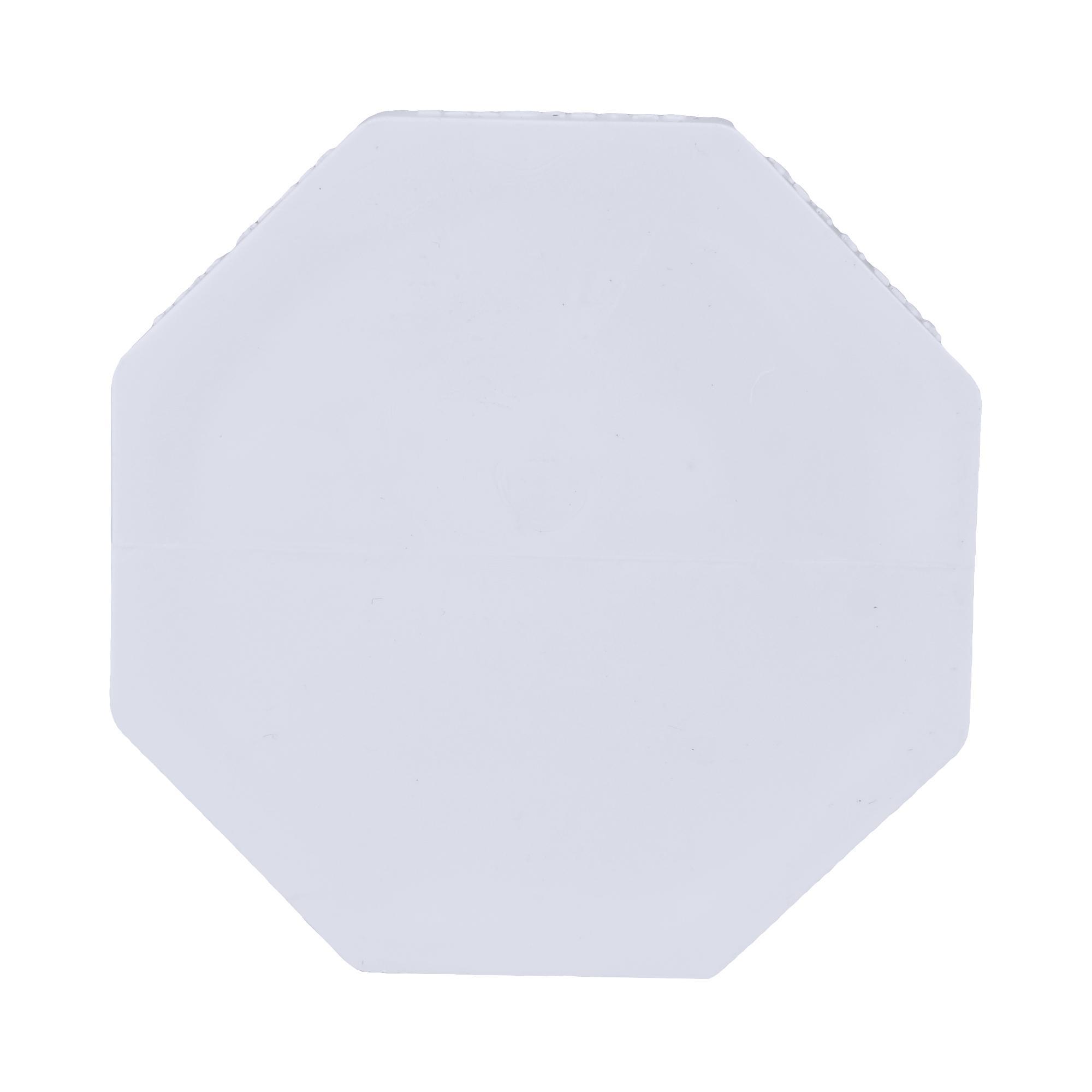

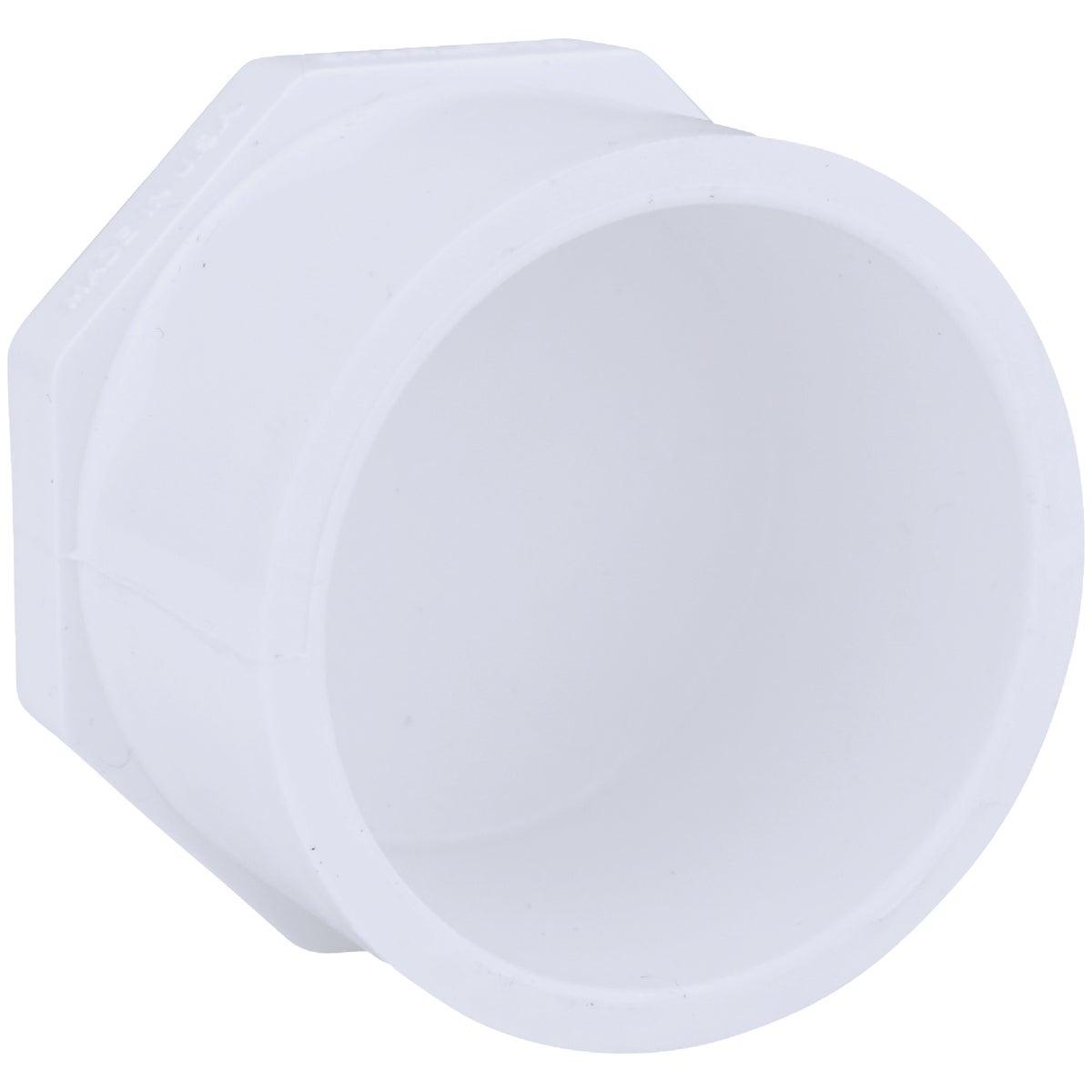

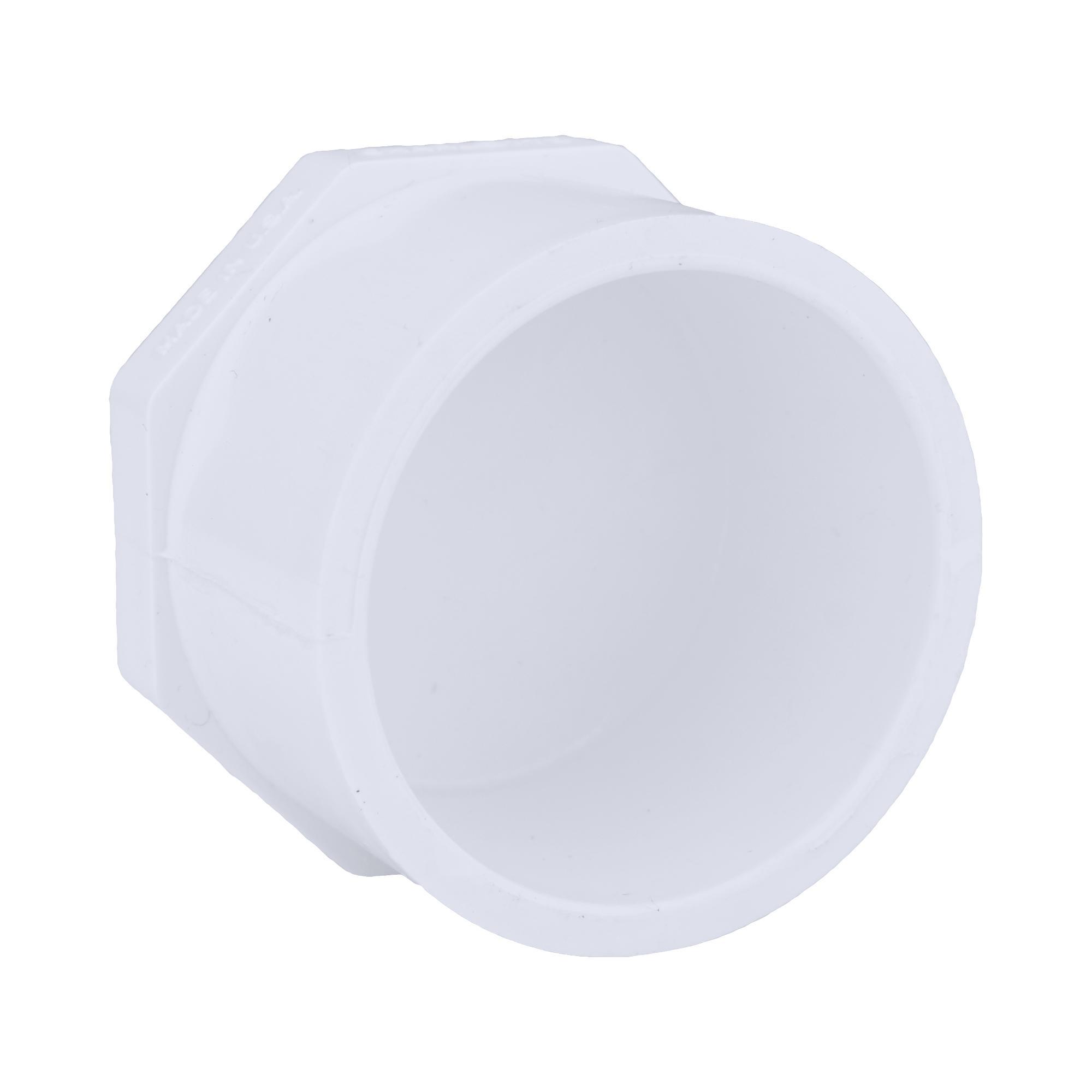

Charlotte PVC 02118 1800, 2 in nominal, Spigot end style, SCH 40, PVC, Domestic
PVC Schedule 40 fitting that is for pressure systems where temperatures will not exceed 140° F. They are highly resilient, with high-tensile and high-impact strength. PVC Schedule 40 has better sound deadening qualities than
-
BrandCharlotte
-
UPC611942082643
-
Manufacturer Part NumberPVC 02118 1800
-
CountryUSA
-
Temperature Rating32 to 140 deg F
-
MaterialPVC
-
Fitting/Connector TypePlug
-
ColorWhite
-
Schedule RatingSCH 40/STD
-
Nominal Size2 in
-
Domestic/ImportDomestic
-
Length1-5/8 in
-
End StyleSpigot
- PVC Schedule 40 fittings are for pressure applications have high impact strength and are intended for systems that will not exceed 140 F
- It is non-toxic, lightweight and easy to install
| Cross-Reference Number |
|---|
| 414417 |
-
Alternative Part Number449-020
-
UNSPSC40173508
-
Package DescriptionEACH
-
Standards/ApprovalsASTM D1784|ASTM D2466|NSF 14|NSF 61|PROP65: This product can expose you to chemicals including titanium dioxide which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov.
-
Warranty5 years Limited
-
SDS
-
Warranty Information
-
Catalog
-
Specification Sheet
-
Instruction/Installation Manual
