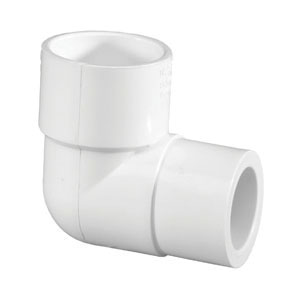

NIBCO 1-1/4" X 1" SCH-40 PVC 90-DEG ELBOW 406-168
Lasco® 406-168 Reducing Elbow, 1-1/4 x 1 in Nominal, Slip End Style, SCH 40/STD, PVC, Nitrile Rubber Seal, Domestic
-
BrandLasco®
-
UPC025528713218
-
Manufacturer Part Number406-168
-
CountryUSA
-
Temperature Rating140 deg F
-
MaterialPVC
-
Fitting/Connector Type90 deg Elbow
-
Method of ManufactureInjection-Molded
-
ColorWhite
-
Schedule RatingSCH 40/STD
-
Nominal Size1-1/4 x 1 in
-
Seal MaterialNitrile Rubber
-
Domestic/ImportDomestic
-
End StyleSlip
- ASTM D1784 - Rigid poly vinyl chloride (PVC) compounds and chlorinated poly vinyl chloride (CPVC) compounds, class 23447
- ASTM F1970 - Standard specification for special engineered fittings, appurtenances or valves for use in poly vinyl chloride (PVC) or chlorinated poly vinyl chloride (CPVC) systems
- Material - Lasco® SCH 40/STD fittings are produced from PVC type 1, cell classification 12454-B O-rings are produced from a Buna- N (nitrile) material
- NSF/ANSI standard 61, Annex G - Drinking water system components weighted average lead content of less than or equal to 0.25% and is in compliance with California's health and safety code section 116875 (commonly known as AB1953) NSF/ANSI standard 14 - plastics piping system components and related materials
- Not to be used in the hot or cold water distribution system in a dwelling maximum service temperature 140 deg F
- Do not use Lasco® fittings for compressed air or gases
- Do not test PVC piping systems with compressed air or gases
- Do not use fittings with liquids not recommended by Lasco®
- Fitting modification voids the warranty
-
UNSPSC40174908
-
Package Description25/CTN
-
Standards/ApprovalsANSI Annex-G|ASTM D1784/F1970|NSF/ANSI 14/61
-
WarrantyLimited
-
Specification Sheet
