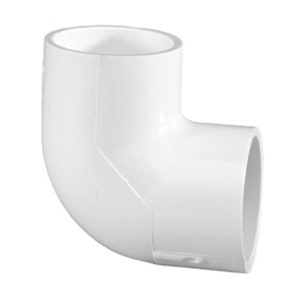

Lasco® 406-025 Elbow, 2-1/2 in Nominal, Slip End Style, SCH 40/STD, PVC, Nitrile Rubber Seal, Domestic
Lasco® Fittings, Inc's comprehensive line of PVC fittings offers a variety of injection molded configurations in SCH 40/STD sizes 3/8 in through 12 in conforming to ASTM D 2466.
-
BrandLasco®
-
UPC025528723743
-
Manufacturer Part Number406-025
-
CountryUSA
-
Temperature Rating140 deg F
-
MaterialPVC
-
Fitting/Connector Type90 deg Elbow
-
Pressure Class125 lb
-
Method of ManufactureInjection-Molded
-
ColorWhite
-
Schedule RatingSCH 40/STD
-
Nominal Size2-1/2 in
-
Seal MaterialNitrile Rubber
-
Domestic/ImportDomestic
-
End StyleSlip
- ASTM D-1784: Rigid poly vinyl chloride (PVC) compounds and chlorinated poly vinyl chloride (CPVC) compounds
- ASTM F-1970: Standard specification for special engineered fittings, appurtenances or valves for use in poly vinyl chloride (PVC) or chlorinated poly vinyl chloride (CPVC) systems
- NSF/ANSI standard 61, Annex G: Drinking water system components weighted average lead content of less than or equal to 0.25% and is in compliance with California's health and safety code section 116875 (commonly known as AB1953) NSF/ANSI Standard 14: Plastics piping system components and related materials, includes ANSI standard 61, Annex G
- Material: Lasco® SCH 40/STD fittings are produced from PVC type 1, cell classification 12454-B
- Not to be used in the hot or cold water distribution system in a dwelling maximum service temperature 140 deg F
- Do not use Lasco® fittings for compressed air or gases
- Do not test PVC piping systems with compressed air or gases
- Do not use fittings with liquids not recommended by Lasco®
- Fitting modification voids the warranty
-
UNSPSC40172808
-
Package Description10/CTN
-
Standards/ApprovalsASTM D1784|ASTM D2466|ASTM F1970|NSF/ANSI 14|NSF/ANSI 61|Annex-G
-
Specification Sheet
