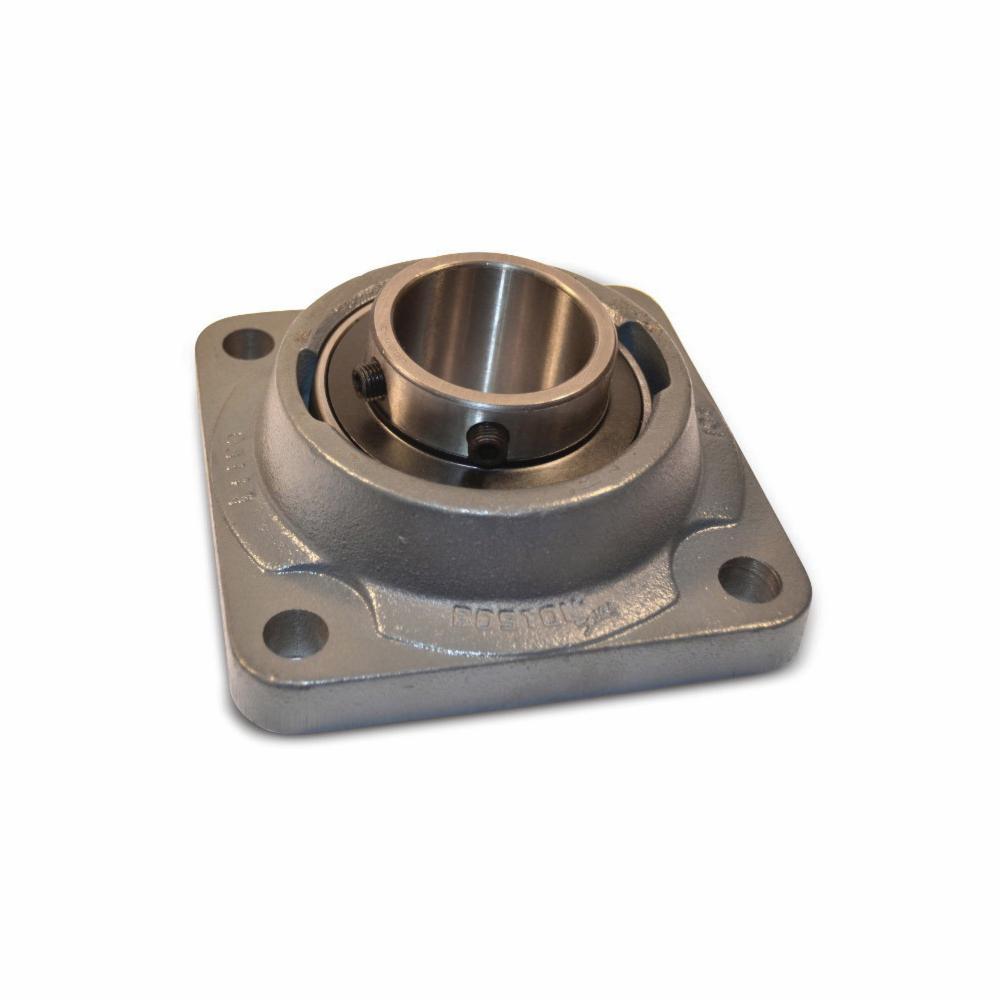

Boston Gear® SF 5/8 SF Series Standard-Duty Flange Mount Ball Bearing Unit, 5/8 in Dia Bore, 2-1/8 in L Bolt Center-to-Center, 4-Bolt Flange Mount, 2-7/8 in OAL/Dia
Boston Gear® comprehensive selection of flanged bearings includes spherical bearings with extended inner races featuring setscrews or eccentric locking collars in stamped steel, ductile iron, cast iron or stainless housings. Positive locking by setscrews or an eccentric locking collar ensures smooth operation and a synthetic lip-type seal with steel flingers offer enhanced seal effectiveness.
-
BrandBoston Gear®
-
UPC781711647370
-
Manufacturer Part NumberSF 5/8
-
CountryUSA
-
Load Capacity340 lb
-
Locking DeviceSet Screw
-
Temperature Rating225 deg F
-
FinishUncoated
-
Flange Mounting Type4-Bolt
-
Maximum Speed5000 rpm
-
TypeStandard-Duty
-
Seal MaterialSynthetic
-
SeriesSF Series
-
Bearing MaterialCast Iron
-
Bolt Center-to-Center Length2-1/8 in
-
Bore Diameter5/8 in
-
Overall Depth1-17/64 in
-
Overall Height2-7/8 in
-
Overall Length/Diameter2-7/8 in
- One piece high grade cast iron housing
- Deep groove ball bearings for high radial and thrust loads
- Precision machined housing bore and spherical outer race for full self-alignment
- Synthetic lip type seal with steel flinger
- Positive locking by setscrews through extended inner race
- 1/4-28 threaded grease fitting and channel through outer race allow relubrication
-
Alternative Part Number30241001
-
UNSPSC31171500
-
Standards/ApprovalsPROP65: This product contains lead, known to the State of California to cause cancer and birth defects or other reproductive harm.
-
Warranty2 Years
-
