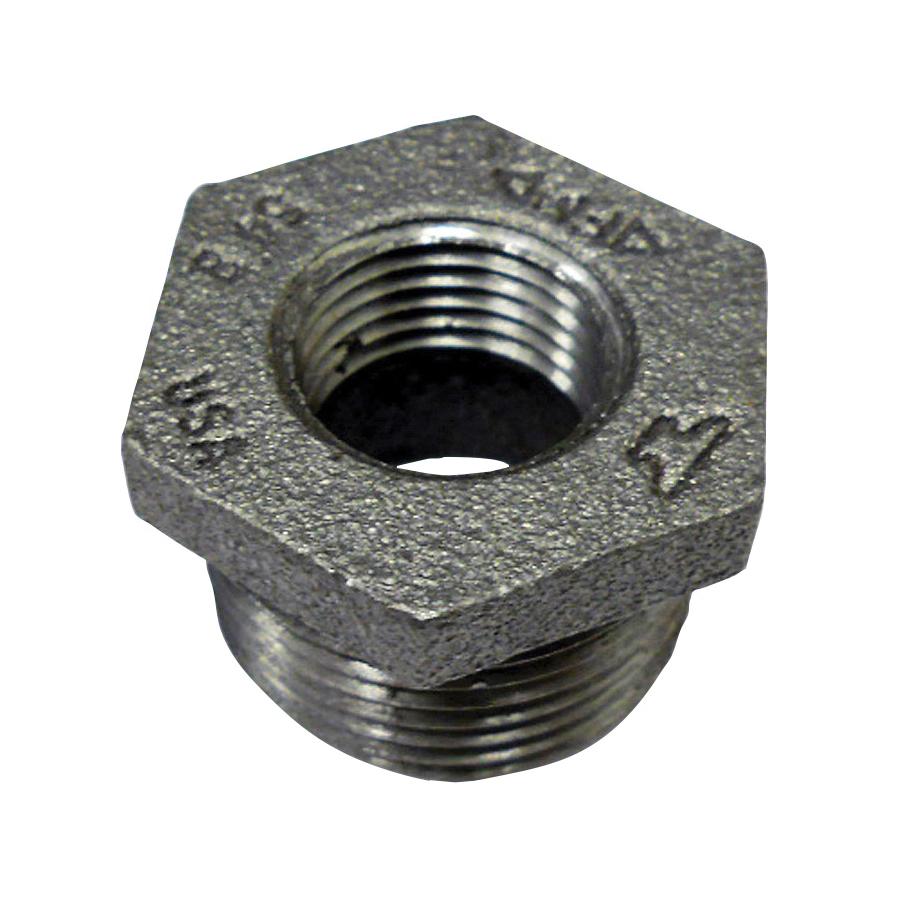

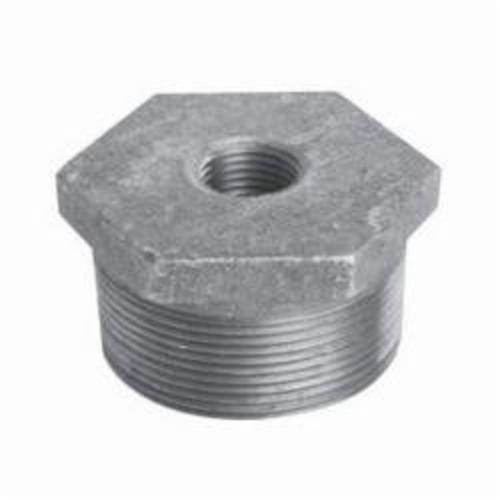

Anvil® 0318907961 FIG 383 Hex Head Pipe Bushing, 2-1/2 x 2 in Nominal, MNPT x FNPT End Style, 150 lb, Malleable Iron, Black Oxide, Domestic
Anvil International offers the broadest line of malleable iron fitting sizes in both black and galvanized finishes. Every fitting is manufactured and tested to meet Anvil's strict quality standards. All Anvil Class 150/300 Malleable Iron Fittings conform to ASME B16.3 and unions conform to ASME B16.39. All elbows and tees 3/8 in (10 DN) and larger are 100% gas tested at a minimum of 100 PSI (6.9 bar).
-
BrandAnvil®
-
UPC690291360503
-
Manufacturer Part Number0318907961
-
CountryUSA
-
Temperature Rating-20 to 150 deg F
-
FinishBlack Oxide
-
MaterialMalleable Iron
-
Fitting/Connector TypeBushing
-
Pressure Class150 lb
-
Pressure Rating300 psi
-
TypeHex Head
-
Nominal Size2-1/2 x 2 in
-
SeriesFIG 383
-
Domestic/ImportDomestic
-
End StyleMNPT x FNPT
-
Thickness0.37 in
-
Schedule RatingSCH 40/STD
-
Hex Size2.98 in
- Malleable iron pipe fittings hold two different pipe parts together and direct gas and liquid movement.
- Wide range of products for sprinkler systems, drainage systems other installations, including fittings connectors, unions, plugs and bushings, clamps and more
- Accurate form, length and straightness on threads for easy engagement
- Chamfered openings for fast, easy engagement and assembly
- Precision machining
- Rust-Resistant coating
- 2.98 in head width
- 0.37 in head height
- 3/4 in internal x 1.07 in external thread length
- Outside head
| Competitor Name | Cross-Reference Number |
|---|---|
| Fastenal | 66339 |
-
Alternative Part NumberICB1634|2DX2.BB
-
UNSPSC40172303
-
Standards/ApprovalsASME B16.3|cULus Listed|FM Approved|NSF/ANSI 61|ANSI/ASME B16.14/B1.20.1|ASTM A153/197|FM Approved|NSF 61-G|UL/ULC Listed|WW P471
-
Package Description20/BX
-
Specification Sheet
