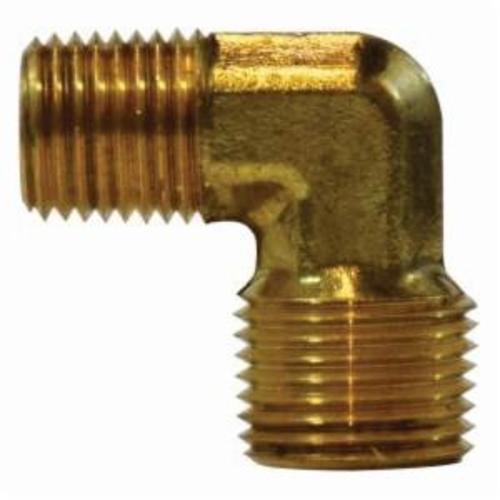

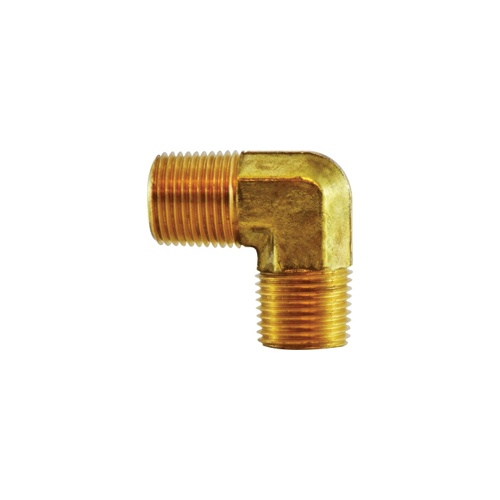

HCI Preferred Supplier 28269 90 deg Pipe Elbow, 1/2 in Nominal, MNPT End Style, Brass
HCI Preferred Supplier 28269 90 deg Pipe Elbow, 1/2 in Nominal, MNPT End Style, Brass
-
BrandGeneric
-
Manufacturer Part Number28269
-
CountryUSA
-
Temperature Rating-65 to 250 deg F
-
MaterialBrass
-
Fitting/Connector Type90 deg Elbow
-
Pressure Rating1200 psi
-
Method of ManufactureForged
-
Nominal Size1/2 in
-
Dimensions0.78 in W, 1.38 in
-
Domestic/ImportImport
-
End StyleMNPT
- Fair resistance vibration
- Used with brass, bronze, copper, steel, aluminum and iron pipe
- /- 0.02 tolerance on all dimensions
- 1/2-14 thread size
-
UNSPSC40172805
-
Package Description1/PK
-
Standards/ApprovalsASA Certified|ASME Specified|SAE Approved
-
