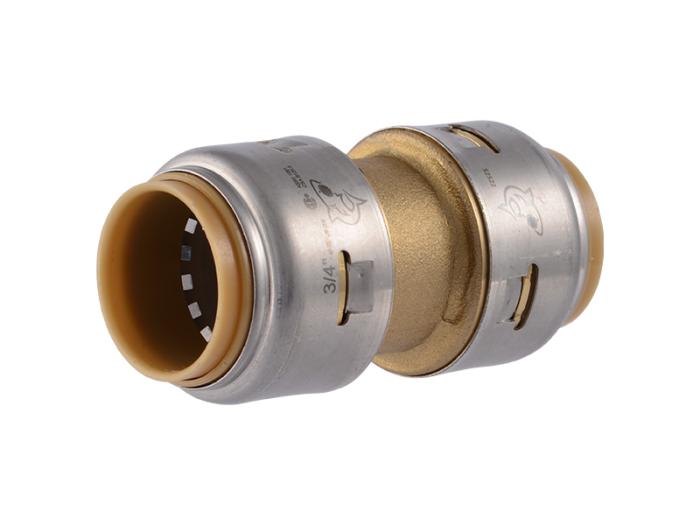

Sharkbite® UR016 Max™ Coupling, 3/4 x 3/4 in Nominal, Push-to-Connect End Style, DZR Brass
Sharkbite® UR016 Max™ Coupling, 3/4 x 3/4 in Nominal, Push-to-Connect End Style, DZR Brass
-
BrandSharkbite®
-
UPC697285036260
-
Manufacturer Part NumberUR016
-
CountryUSA
-
Temperature Rating200 deg F
-
MaterialDZR Brass
-
Fitting/Connector TypeCoupling
-
Pressure Rating250 psi
-
Nominal Size3/4 x 3/4 in
-
SeriesMax™
-
Dimensions1.3 in H x 1.3 in D
-
Length2.6 in
-
End StylePush-to-Connect
- Fastest way to connect PEX, copper, CPVC, PE-RT or HDPE SDR-9 pipe
- Half the insertion effort, double the burst pressure
- Can be installed on wet lines and pressure tested immediately
- Stainless steel retainer adds strength and durability
- No special tools, crimping, soldering or glue required
- Can be rotated after installation
- No tube liner required for PEX
-
Package Description12/PK
-
Standards/ApprovalsASSE 1061|CSA B125.3|NSF/ANSI 14|NSF/ANSI/CAN 61|NSF/ANSI/CAN 372|ASTM E84|CAN/ULC S102.2|UL 263|ASTM E119|CAN/ULC S101
-
WarrantyLimited
-
Specification Sheet
-
Instruction/Installation Manual
