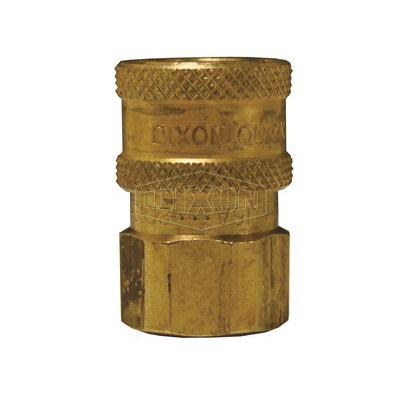

Dixon® 10EF10-B Straight Through Interchange Quick Connect Coupling, 1-1/4-11-1/2 Nominal, FNPT, Brass, Domestic
Dixon® 10EF10-B Straight Through Interchange Quick Connect Coupling, 1-1/4-11-1/2 Nominal, FNPT, Brass, Domestic
-
BrandDixon®
-
UPC089109875344
-
Manufacturer Part Number10EF10-B
-
CountryUSA
-
MaterialBrass
-
Pressure Rating2500 psi
-
TypeStraight Through Interchange
-
Nominal Size1-1/4-11-1/2
-
Domestic/ImportDomestic
-
End StyleFNPT
- These couplers have no internal valves, providing maximum flow with minimum pressure drop
- Interchanges with Parker-Hannifin SST/BST, Foster FST and Hansen ST couplings
- 1-1/4 in body
- 2500 psi at 70 deg F pressure
- Buna-N gasket seal
- Do not disconnect with pressure in line
- Dixon® cannot assume liability for misapplication of production resulting in equipment down-time, lost production, and/or personal injury including death
- Warning: this product contains a chemical known to the State of California to cause birth defects or other reproductive harm
- Do not use in connection with drinking water
- Wash hands after handling
| Competitor Name | Competitor Part Number |
|---|---|
| Fastenal | 0482841 |
-
Alternative Part NumberSTFC10
-
UNSPSC40172601
-
Package Description10/BX
-
WarrantyLimited
-
