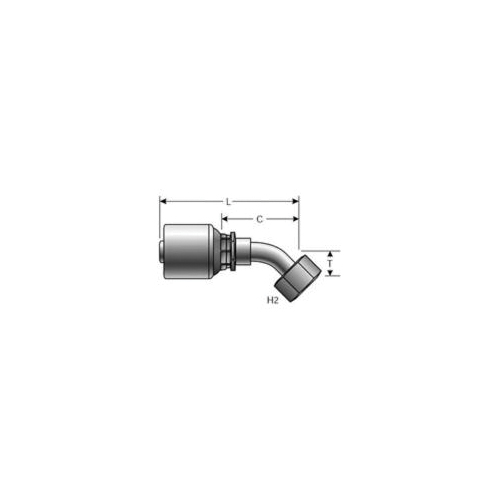

Gates® Power Transmission MegaCrimp™ 6G-6FJX45S G25 Bent Tube Hydraulic Coupling, 3/8 in x 9/16-18 Nominal, Hose x 37 deg Female JIC Flare Swivel, Carbon Steel

0 Ratings
$29.40
Out of Stock
SKU: GAT6G6FJX45S
noimage_new

It’s what’s inside the MegaCrimp coupling that makes it perform so well, the “C” insert. This “C” insert allows usage with different hose constructions and wall thicknesses. In addition, the C-insert ensures an even distribution of crimping forces to form a concentric seal. That simplifies your inventory requirements since one size can accommodate many different hose ODs, on both one- and two-wire braid hoses and select Xpiral hoses. An additional bonus: MegaCrimp couplings are fully qualified for SAE, EN, and ISO performance.

In Stock
HCI of Jackson: 0
HCI of Dyersburg: 0
HCI of Humboldt: 0
HCI of Union City: 0
HCI of Gallatin: 0
My Wishlist
Compare
Main specs
  • Brand
    Gates® Power Transmission
  • UPC
    72053323184
  • Manufacturer Part Number
    6G-6FJX45S
  • Country
    USA|Canada
Specification
  • Material
    Carbon Steel
  • Type
    Bent Tube
  • Nominal Size
    3/8 in x 9/16-18
  • Angle
    45 deg
  • Hex Size
    19 mm Nut
  • Series
    G25
  • Domestic/Import
    Domestic
  • Length
    3.05 in
  • End Style
    Hose x 37 deg Female JIC Flare Swivel
Features
  • Robust "Bite-the-wire" crimp
  • Low profile
  • Full stem insertion
  • Full length crimp
  • Tested to industry leading 600000 impulse cycles
  • Simplifies inventory management
  • Environmentally-friendly TuffCoat™ plating for 3X better corrosion resistance than SAE standard
  • 0.43 in drop length
  • 1.95 in cut-off length
Additional Information
  • Alternative Part Number
    G25175-0606|710346235
  • UNSPSC
    40172601
  • Package Description
    1/PK
  • Warranty
    Limited
Attachments
Reviews

There are yet no reviews for this product.
