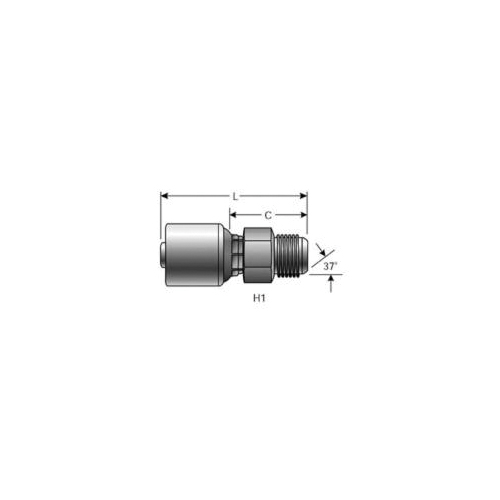

Gates® Power Transmission MegaCrimp™ 6G-8MJ G25 Straight Hydraulic Coupling, 3/8 in x 3/4-16 Nominal, Hose x Male JIC 37 deg Flare End Style, Steel
It’s what’s inside the MegaCrimp coupling that makes it perform so well, the “C” insert. This “C” insert allows usage with different hose constructions and wall thicknesses. In addition, the C-insert ensures an even distribution of crimping forces to form a concentric seal. That simplifies your inventory requirements since one size can accommodate many different hose ODs, on both one- and two-wire braid hoses and select Xpiral hoses. An additional bonus: MegaCrimp couplings are fully qualified for SAE, EN, and ISO performance.
-
BrandGates® Power Transmission
-
UPC72053322958
-
Manufacturer Part Number6G-8MJ
-
CountryUSA|Canada
-
MaterialSteel
-
TypeStraight
-
Nominal Size3/8 in x 3/4-16
-
Hex Size19 mm Stem
-
SeriesG25
-
Domestic/ImportDomestic
-
Length2.48 in
-
End StyleHose x Male JIC 37 deg Flare
- Robust "Bite-the-wire" crimp
- Low profile
- Full stem insertion
- Full length crimp
- Tested to industry leading 600000 impulse cycles
- Simplifies inventory management
- Environmentally-friendly TuffCoat™ plating for 3X better corrosion resistance than SAE standard
- 1.38 in cut-off length
-
Alternative Part NumberG25165-0608|710336165
-
UNSPSC40172601
-
Package Description1/PK
-
Standards/ApprovalsASTM B-117
-
WarrantyLimited
-
