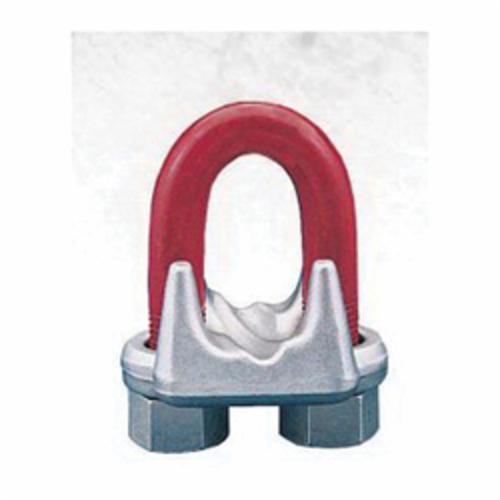

Crosby® 1010239 Red-U-Bolt® G-450-1 Wire Rope Clip, 1 in, Steel, 5 Clips, 26 in Rope Turn Back
Crosby® 1010239 Red-U-Bolt® G-450 Wire Rope Clip, 1 in, Steel, 5 Clips, 26 in Rope Turn Back
-
BrandCrosby®
-
Manufacturer Part Number1010239
-
CountryUSA
-
Cable Size1 in
-
FinishGalvanized
-
MaterialSteel
-
Minimum Number of Clips5
-
Minimum Torque225 pies-lb
-
Rope Turn Back26 in
-
SeriesRed-U-Bolt® G-450
- Each base has a product identification code (PIC) for material traceability, the name Crosby® or CG and a size forged into it
- Based on the catalog breaking strength of wire rope, Crosby® wire rope clips have an efficiency rating of 80% for 1/8 - 7/8 in sizes and 90% for sizes 1 in through 3-1/2 in
- entire clip is galvanized to resist corrosive and rusting action
- All clips are individually bagged or tagged with proper application instructions and warning information
- Clip sizes up through 1-1/2 in have rolled threads
- Look for the Red-U-Bolt®, your assurance of genuine Crosby® clips
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 29WP27 |
-
UNSPSC31162813
-
Package Description10/PK
-
Standards/ApprovalsASME B30.26|FF-C-450 Type 1 Class 1
-
