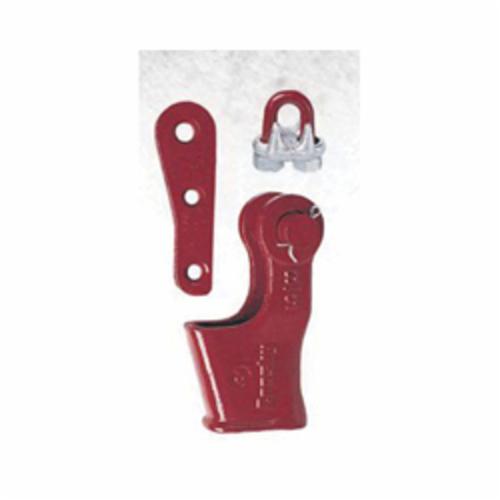

CROSBY 10-35045 Terminator™ Wedge Socket With Wedge Nad Pin, 1 in, Steel, Painted, For Use With All Wire Rope
Wire Rope Size: 1 inch (25.4 mm). Model Series: S-421T Terminator™ .Pin Diameter: 2.00 inches. Component Weight: Approximately 30.75 to 35.5 lbs. Material & Finish: Cast steel construction, typically painted or galvanized.
-
BrandMcKissick®
-
Manufacturer Part Number1035045
-
CountryUSA
-
FinishPainted
-
MaterialSteel
-
SeriesTerminator™
-
Wire Rope Diameter1 in
-
Suitable For Use WithAll Wire Rope
- Basket is cast steel and individually magnetic particle inspected
- Pin diameter and jaw opening allows wedge and socket to be used in conjunction with closed swage and spelter sockets
- Secures the tail or dead end of the wire rope to the wedge, thus eliminates loss or punch out of the wedge
- eliminates the need for an extra piece of rope and is easily installed
- TERMINATOR™ wedge eliminates the potential breaking off of the tail due to fatigue
- The tail, which is secured by the base of the clip and the wedge, is left undeformed and available for reuse
- Incorporates Crosbys patented QUIC-CHECK® go and No-Go feature cast into the wedge. the proper size rope is determined when the following criteria are met
- Utilizes standard Crosby® Red-U-Bolt® wire rope clip
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 29WR35 |
-
Alternative Part NumberS-421 T
-
UNSPSC31162805
-
Standards/ApprovalsASME B30.26|ABS 2007 Steel Vessel Rules 1-1-17.7|EN 13411-6|2008|RR-S-550E
-
