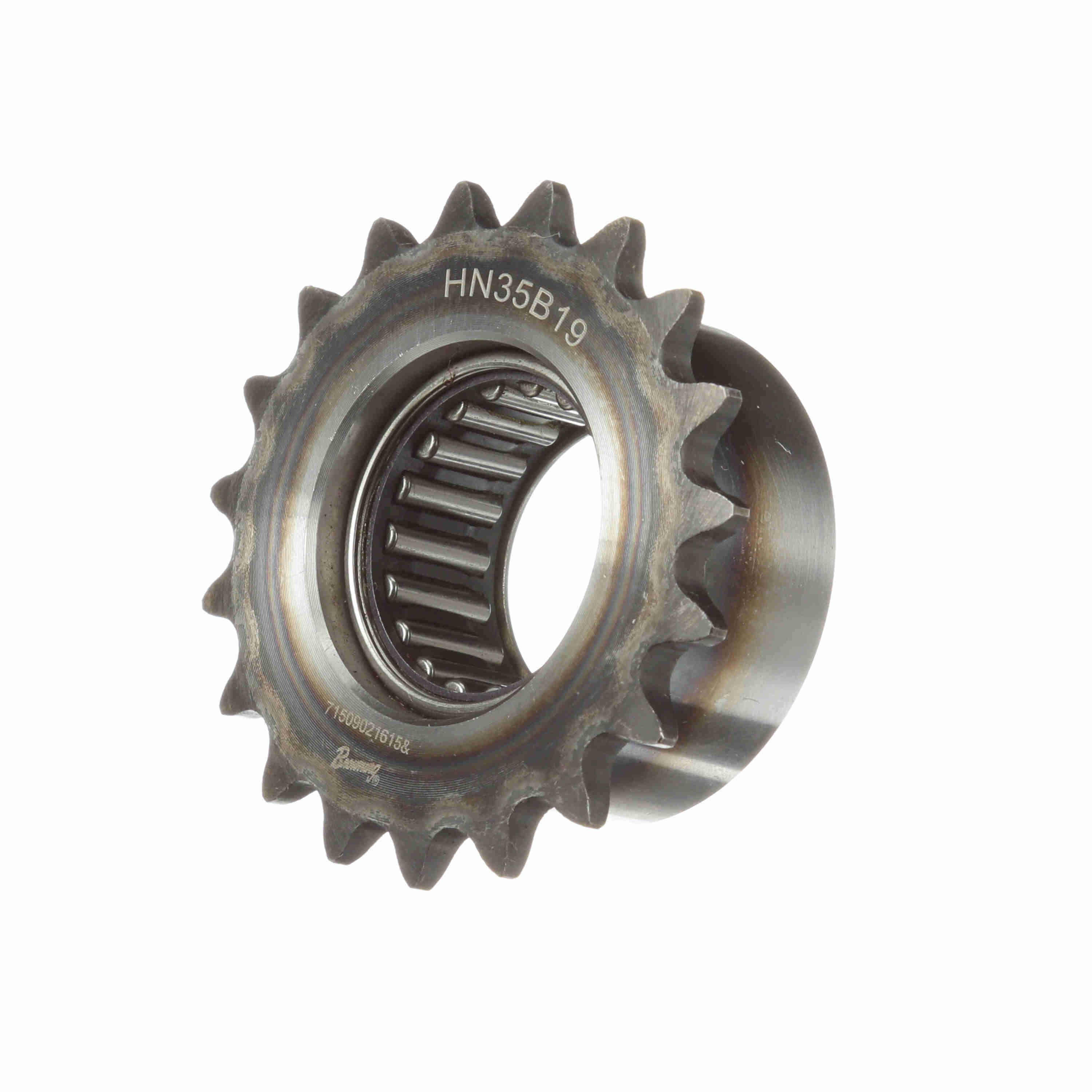

Browning® 1297241 Single Strand Idler Sprocket With Hardened Teeth, 1 in Dia Bore, 2.47 in OD, 35 Chain, 19 Teeth, 3/8 in Pitch, Steel
Browning® 1297241 Single Strand Idler Sprocket With Hardened Teeth, 1 in Dia Bore, 2.47 in OD, 35 Chain, 19 Teeth, 3/8 in Pitch, Steel
-
BrandBrowning®
-
UPC662289294404
-
Manufacturer Part Number1297241
-
CountryUSA
-
Pitch3/8 in
-
MaterialSteel
-
Chain Size35
-
TypeSingle Strand
-
Hub Diameter1-13/16 in
-
Number of Teeth19
-
Keyway Size1/4 x 1/8 in
-
Outside Diameter2.47 in
-
Length Through Bore1 in
-
Bore Diameter1 in
- For use with drive tighteners
- Cast iron
- All Browning stock idlers furnished with needle bearings have retainers that insure minimum internal friction and wear by separating the needle rollers
- Morse and Browning offer a complete line of Torque Overload Devices to protect machinery from overloads or jams
- Browning offers a complete set of replacement shear pins
- Shear pins are available in a wide range of minimum shear strength
- Cast iron
- All Browning stock idlers furnished with needle bearings have retainers that insure minimum internal friction and wear by separating the needle rollers
-
Alternative Part NumberHN35B19 IDLER
-
UNSPSC31171901
-
Package DescriptionEACH
-
Warranty1 Year
-
Specification Sheet
