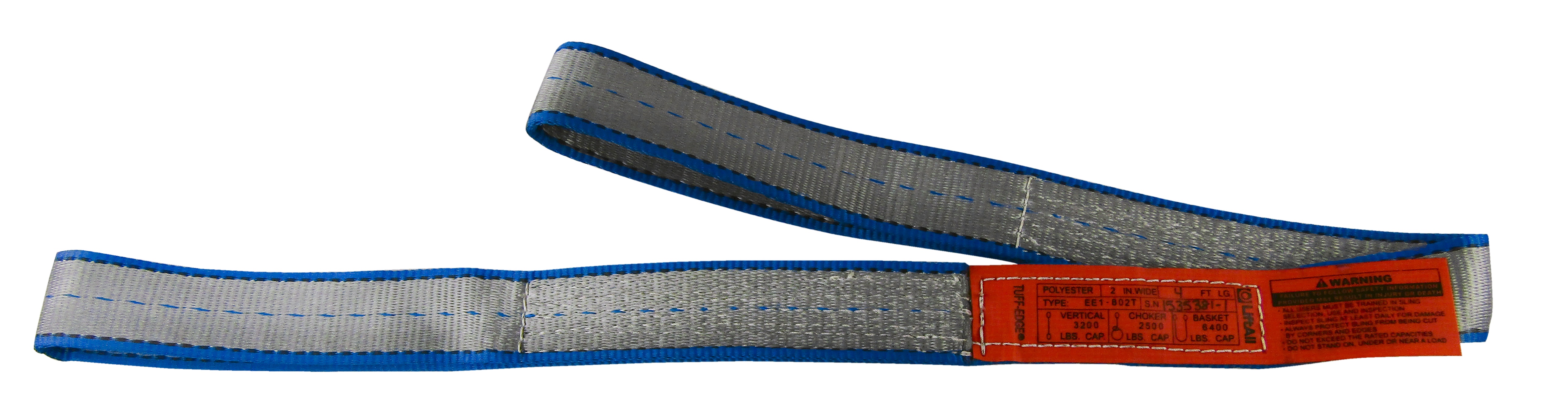

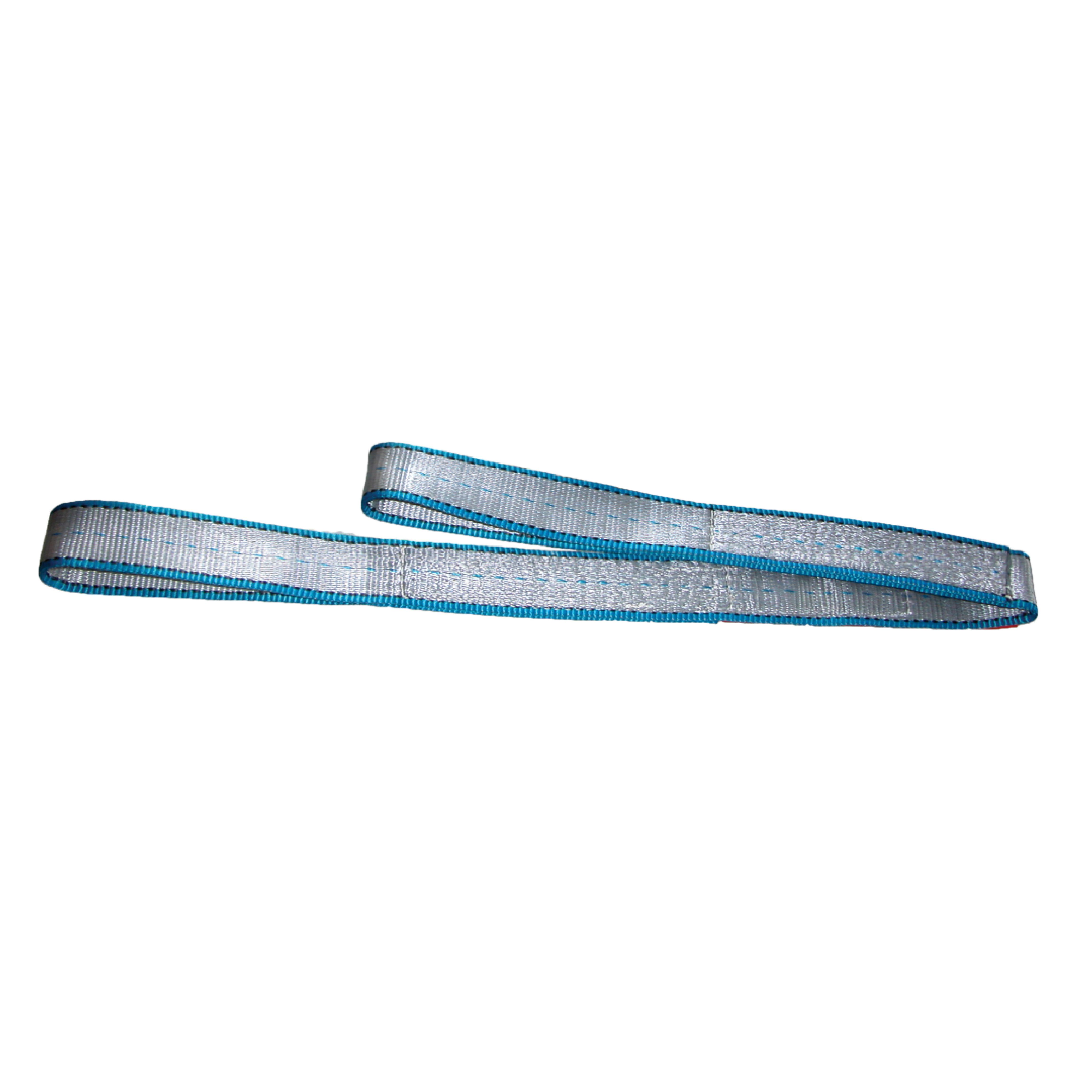

Lift-All® Tuff-Edge® II Webmaster® 1600 EE2802TFX8 Flat Eye and Type 3 Eye Web Sling, 8 ft L x 2 in W, 6400 lb, Polyester
Lift-All® Tuff-Edge® III introduces a patented design with edge-cut resistance and increased abrasion. Easily inspect webbing with Edge Damage Limit (EDL) marker.
-
BrandLift-All®
-
UPC697886100179
-
Manufacturer Part NumberEE2802TFX8
-
CountryUSA
-
Temperature Range-60 to 200 deg F
-
MaterialPolyester
-
Choker Hitch Capacity5000 lb
-
CoatingLatex
-
ColorSilver
-
TypeFlat Eye and Type 3 Eye
-
Vertical Hitch Capacity6400 lb
-
Web GradeHeavy Duty
-
Width2 in
-
Number of Plys2
-
Basket Hitch Capacity3200 lb
-
Length8 ft
-
Eye Length10 in
- Edge damage limit (EDL) out-of-service marker
- The EDL marker tool both simplifies the inspection process and also extends the life of the web slings, saving you money
- TUFF-TAG™ provides serial numbered identification for traceability
- Web slings are light weight, flexible and have wide bearing surfaces to help protect the load
- Their stretch characteristics help to avoid shock loading problems
- Lighter weight and easier to use than chain or wire rope
- Daily use under good to rugged lifting conditions
- 2X better edge cut resistance
- Red core yarn warning system aids in the inspection process
- Silver colored web treatment fights abrasion for additional sling life
- Special polymer coated edge yarns improve edge cutting and abrasion to extend sling life
- Silver body, blue edges and blue center stripe
- Tuff-Edge® II web material is standard - Helps prevent sling damage
- Better load control and balance by using fixed fitting points and multiple legs
- Standard oblong links and hooks are forged from alloy steel for strength and reliability
- Endless type allows shifting of wear points
- Always protect synthetic slings from being cut by corners and edges
- Tubular edge design with damage-resistant core helps protect the body fibers from cutting, keeping the integrity of the sling intact without compromising its strength
- Easy to identify by the blue tubular edges and EDL marker
- See Sling Protection section in the Lift-All catalog
| Competitor Name | Competitor Part Number |
|---|---|
| Berkshire eSupply | SE82EE2802T8 |
| Grainger | 6A241 |
| Fastenal | 45656 |
-
UNSPSC24101611
-
Package DescriptionEACH
-
Standards/ApprovalsASME B30.9|OSHA 29 CFR 1910.184|WSTDA WS-1
-
WarrantyLimited Liability Warranty
-
Technical Bulletin
-
Catalog
-
Instruction/Installation Manual
