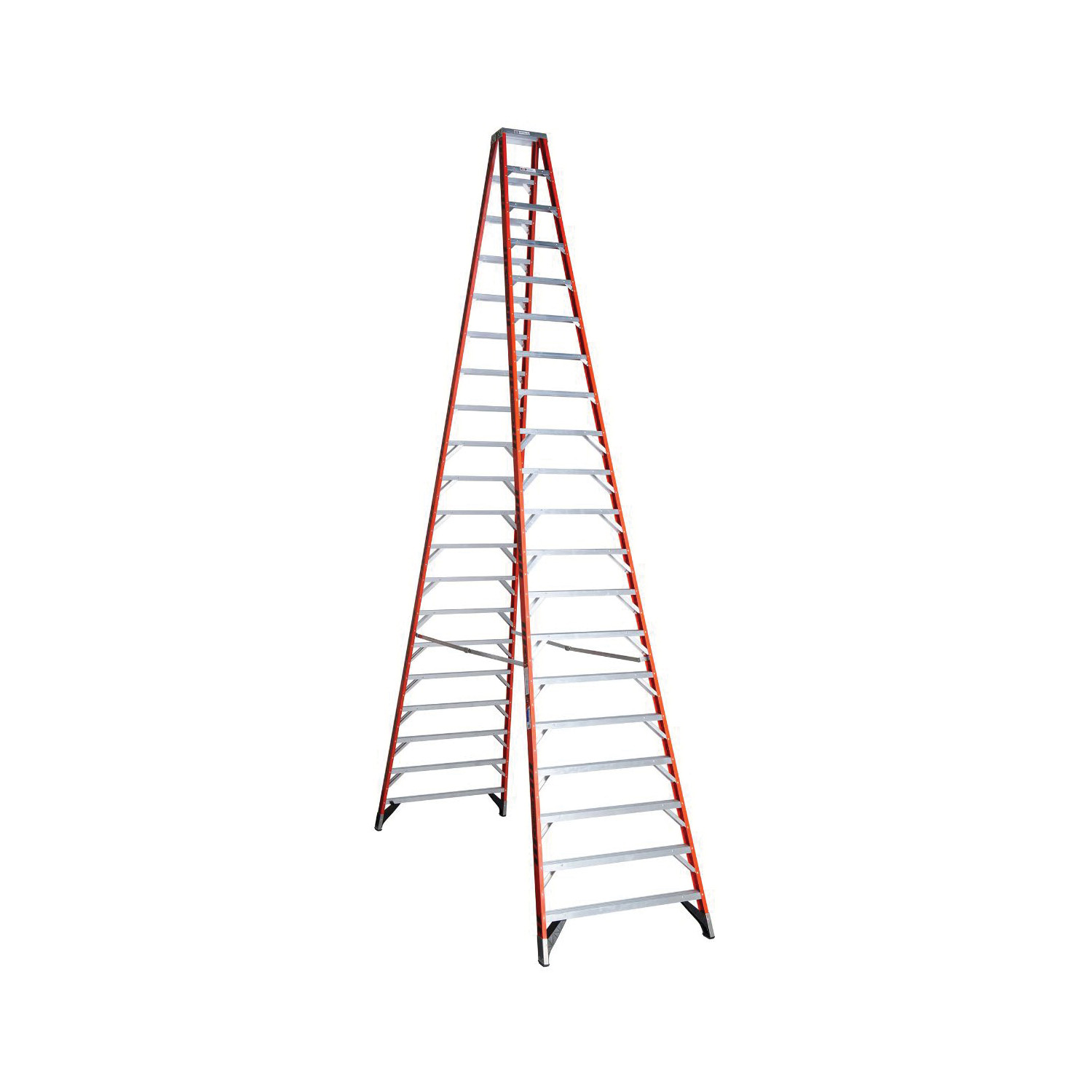

WERNER 20' 300# 1-A F/GLS TWIN STEPLADDER WER T-7420
The T7420 fiberglass 20 ft twin step ladder features a duty rating of 300.pounds per side of the ladder. Designed for one or two person jobs, the T7400 ladders have heavy gauge aluminum tops and feature heavy duty internal spreaders to resist damage around the worksite or in transit. The Glas*Mark® Violater stripes on the rails make the ladder more visible and the EDGE® bracing system and external rail shields add to the long lasting durability of these ladders. Fiberglass rails are non-conductive for working near electricity.
-
BrandWERNER®
-
UPC051751033205
-
Manufacturer Part NumberT7420
-
CountryUSA
-
Load Capacity300 lb
-
MaterialFiberglass
-
TreadRibbed
-
TypeType IAA
-
SeriesT7400
-
Base Spread150-1/8 in
-
Number of Steps19
-
Ladder Height20 ft
-
Bottom Width49-1/2 in
- Heavy gauge aluminum extruded top with thick side plates
- Back up aluminum plates reinforce all top connectors
- Shoulder bolt and lock nut on top hinge
- 4 solid aluminum rivets attach top to each rail
- Slip resistant TRACTION-TRED® steps are double riveted and knee braced
- Extra heavy duty internal aluminum spreaders
- Rubber step bumpers to resist damage
- EDGE® bracing system helps to decrease damage to rail
- Glas*Mark® violator stripes on rails allow ladder to be more visible
- Aluminum external rail shield helps protect against abrasion damage
- Shoe pads riveted to the EDGE® structure
- Every rivet backed up by metal, metal plates or washer to protect rails
- Design for one or two person jobs
- Maximum load per side, including person and materials, shall not exceed duty rating of ladder
- 17 ft 3 in H maximum standing
- Heavy edge bracing
- 8-1/4 x 14-1/2 in top
- 1-3/16 in front and rear flange
- 3 in steps
- Aluminum spreader
| Competitor Name | Competitor Part Number |
|---|---|
| Fastenal | 99298986 |
-
UNSPSC30191501
-
Standards/ApprovalsANSI A14.5 (2007)|OSHA Compliant
