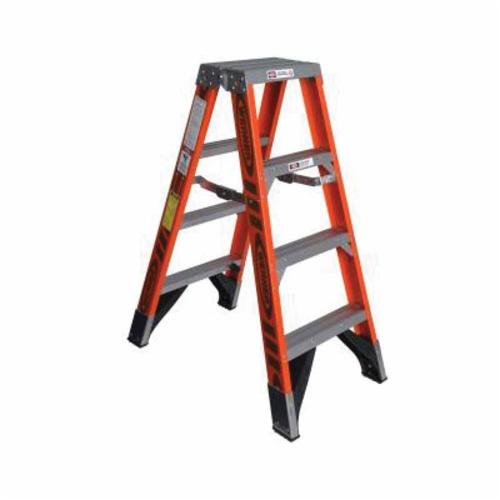

WERNER 4' 375# 1-AA F/GLS TWIN STEPLADDER WER T-7404
The T7404 Fiberglass 4 ft Twin Step Ladder features a duty rating of 375 pounds per side of the ladder. Designed for one or two-person jobs, the T7400 ladders have heavy gauge aluminum tops and feature heavy duty internal spreaders to resist damage around the worksite or in transit. The GLAS*MARK® Violater stripes on the rails make the ladder more visible and the Edge® bracing system and external rail shields add to the long lasting durability of these ladders. Fiberglass rails are non-conductive for working near electricity.
-
BrandWERNER®
-
UPC051751011531
-
Manufacturer Part NumberT7404
-
CountryUSA
-
Load Capacity375 lb
-
MaterialFiberglass
-
Tread3 in W
-
TypeType IAA
-
ANSI CodeA14.5
-
SeriesT7400
-
Base Spread36-1/8 in
-
Number of Steps3
-
Ladder Height4 ft
-
Bottom Width21-1/2 in
- Heavy gauge aluminum extruded top
- Back-up aluminum plates reinforce all top connectors
- Thick side plates
- Shoulder bolt and lock nut on top hinge, 4 solid aluminum rivets attach top to each rail
- Slip-resistant TRACTION-TRED® steps are double riveted and knee braced
- Extra heavy duty internal spreaders
- Glas mark violator stripes on rails allow ladder to be more visible
- Rubber step bumpers to resist damage
- The edge bracing system helps to decrease damage to rail
- Aluminum external rail shield helps protect against abrasion damage
- Shoe pads riveted to the edge structure
- Every rivet backed up by metal part or washer to protect rails
- 14 ft, 16 ft, 18 ft and 20 ft are 300 lbs, load capacity, type is duty rating (per side)
- Energy diffusing geometry
- 3-1/8 in wide rail
- 1-3/16 in wide flange
| Competitor Name | Cross-Reference Number |
|---|---|
| Fastenal | 99298979 |
-
UNSPSC30191501
-
Standards/ApprovalsANSI A14.5 (2007)|OSHA Standard
-
Owners/User Manual
