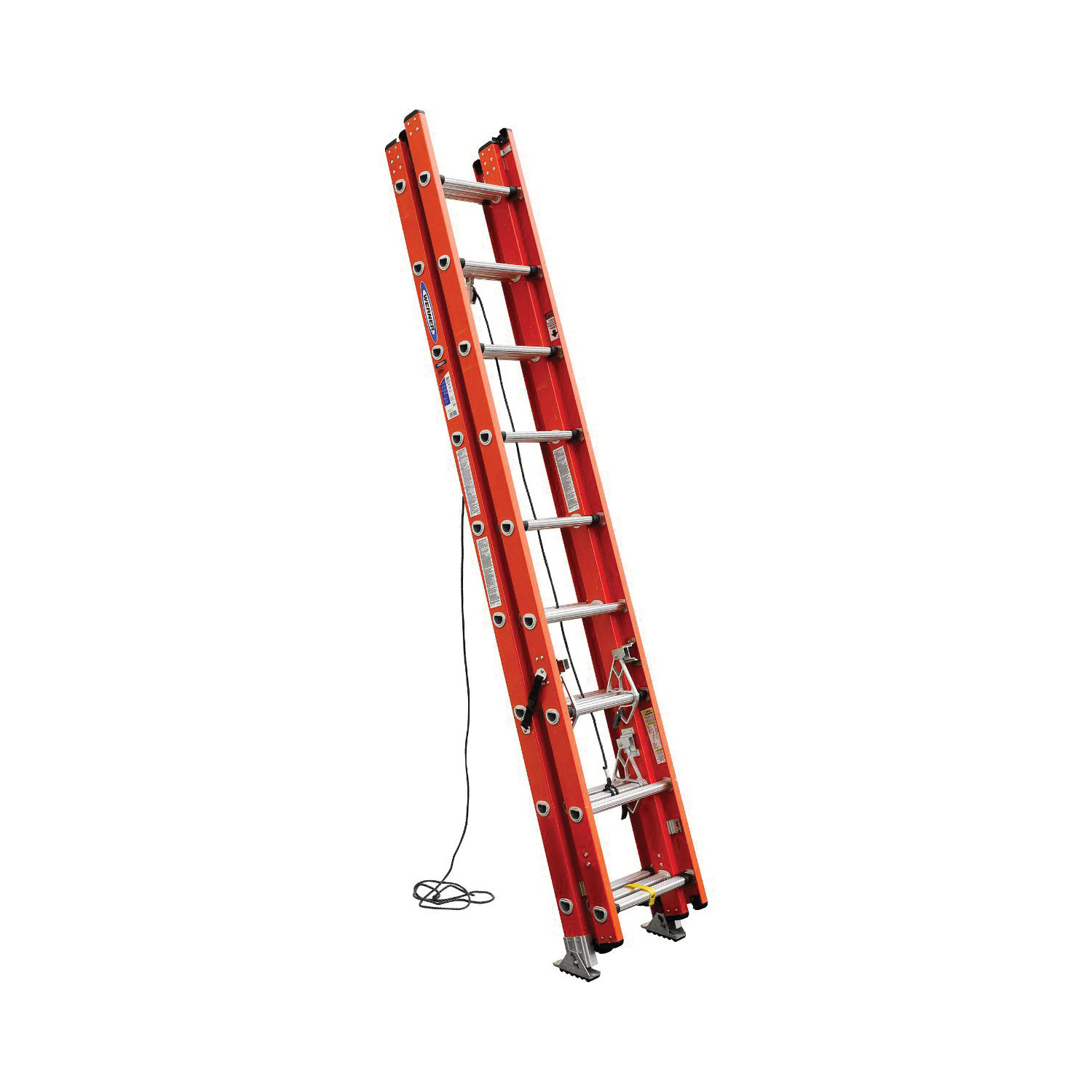

WERNER 24' 300# 1-A F/GLS EXT/LADDERS WER D-6224-3
The D6224-3 fiberglass extension ladder has non-conductive rails making this ladder ideal for working near electricity. With a duty rating of 300 pounds, the D6224-3 is durable and long lasting. The exclusive ALFLO® rung joint means TWIST-PROOF® performance on the job. The TRACTION-TRED® D-rungs are slip resistant and the side rails are interlocking. The dual action feet are for use on hard or penetrable surfaces and swivel easily. The base and fly sections separate easily to use the base section as a single ladder. The durable rail shield bracket and shoe help protect the bottom of the rail. The fly section rails are pre-pierced at the top for easy field installation of accessories.
-
BrandWERNER®
-
UPC051751110531
-
Manufacturer Part NumberD6224-3
-
CountryUSA
-
Load Capacity300 lb
-
MaterialFiberglass
-
Rail TypeNon-Conductive/Interlocking
-
Maximum Working Length21 ft
-
TypeD-Rung Multi-Section
-
ANSI CodeType IA
-
Adjustable Increments12 in
-
Section Length8 ft
-
SeriesD6200-3
-
Outside Shoe Base Width18-3/4 in
-
Overall Length24 ft
- Compact 3 section design is 9 ft 4 in when closed
- Conventional 24 ft extension ladder is 12 ft 3 in When closed
- Exclusive ALFLO® rung joint means TWIST-PROOF® performance
- 1-5/8 slip resistant TRACTION-TRED® D-rungs
- Interlocking side rails with internal rail guides on bottom of fly section securely connect rails
- External guides at top of base section securely interlock rails
- Heavy duty extruded rung locks are spring loaded to operate smoothly
- Combination rail shield bracket and shoe with SHU-LOK® and slip resistant pad
- Molded rung braces on bottom step for increases durability
- Mar resistant molded end caps
- Ladder is considered 27 ft by ANSI standards
- 23 ft H reach
- 21 ft L maximum open extended
- Slip resistant pad foot material
- 3 sections
- 9 ft L approximate closed
- 3-5/16 in rails
- 1-3/16 in flange
- 1-5/8 in rung
- 17-3/4 in W fly
| Competitor Name | Competitor Part Number |
|---|---|
| Fastenal | 2113607 |
-
UNSPSC30191501
-
Standards/ApprovalsANSI A14.5 (2007)|OSHA Compliant
