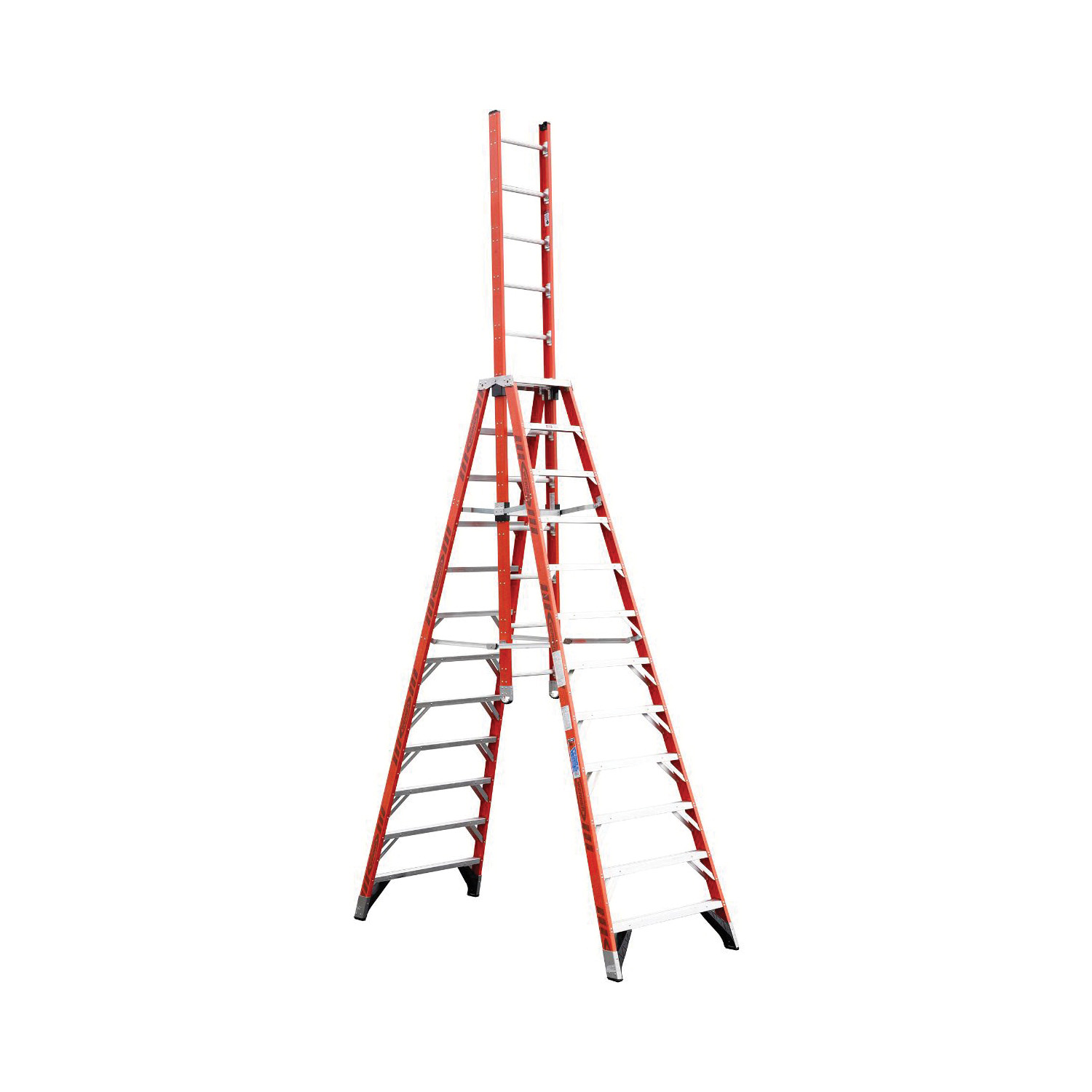

WERNER® E7412 E7400 Extension Trestle Ladder, 12 ft OAL, 300 lb Load, Fiberglass, Type IA
The E7412 extension trestle 12 ft ladders has a 300 pound duty rating per side and is designed for one or two person jobs. The slip resistant TRACTION-TRED® extra wide steps are knee braced and double riveted. A spring loaded locking mechanism makes maneuvering the extension trestle easy. The nylon coated guide sleeves assure minimum friction and wear and also increase the ease of operation. External rail shields and the EDGE® bracing system help protect the rails. Fiberglass rails are non-conductive for working near electricity.
-
BrandWERNER®
-
UPC051751011715
-
Manufacturer Part NumberE7412
-
CountryUSA
-
Load Capacity300 lb
-
MaterialFiberglass
-
Rail TypeNon-Conductive
-
Maximum Working Length9 ft 7 in
-
ANSI CodeType IA
-
SeriesE7400
-
Outside Shoe Base Width40 in
-
Overall Length12 ft
- Center section extends for access above drop ceilings or to support stages
- Slip resistant TRACTION-TRED® round rungs
- Extra heavy duty internal spreaders
- Nylon coated guide sleeves assure minimum friction and wear, and increase ease of operation
- Spring loaded locking mechanism holds center section securely in place
- Slip resistant TRACTION-TRED® extra wide steps are knee braced and double riveted
- Shoe pads riveted to the EDGE® structure
- Shoe with rubber tread and protective rail shields
- Aluminum external rail shield helps protect against abrasion damage
- EDGE® bracing system helps to decrease damage to rail
- Design for one or two person jobs
- Maximum load per side, including person and materials, shall not exceed duty rating of ladder
- 16 ft H reach
- 95-7/8 in approximate spread
- Heavy edge bracing
- Steel spreader material
- 228 in H approximate overall ladder
- 3-3/16 in rear rails
- 1-3/16 in rear flange
| Competitor Name | Competitor Part Number |
|---|---|
| Fastenal | 2113629 |
-
UNSPSC30191501
-
Standards/ApprovalsANSI A14.5 (2007)|OSHA Compliant
