WERNER 16' 225# TY-2 ALUMINUM EXT/LADDERS WER D-1216-3
The D1216-3 aluminum extension ladder is a compact, 3 section ladder that has a duty rating of 225 pounds and interlocking side rails. The TRACTION-TRED® D-rungs are slip resistant and the spring loaded locks operate smoothly for easy operation. Shoes rest flat or are held in spur position with the SHU-LOK® feature. Mar resistant end caps also help protect the surface the ladder is leaning against. Exclusive ALFLO® rung joint means TWIST-PROOF® performance every time.
-
BrandWERNER®
-
UPC051751108019
-
Manufacturer Part NumberD1216-3
-
CountryUSA
-
Load Capacity225 lb
-
MaterialAluminum
-
Rail TypeInterlocking/I-Beam
-
Maximum Working Length13 ft
-
TypeCompact Multi-Section
-
ANSI CodeType II
-
Adjustable Increments12 in
-
Section Length6 ft
-
SeriesD1200-3
-
Shoe TypeSwivel
-
Outside Shoe Base Width17-3/8 in
-
Overall Length16 ft

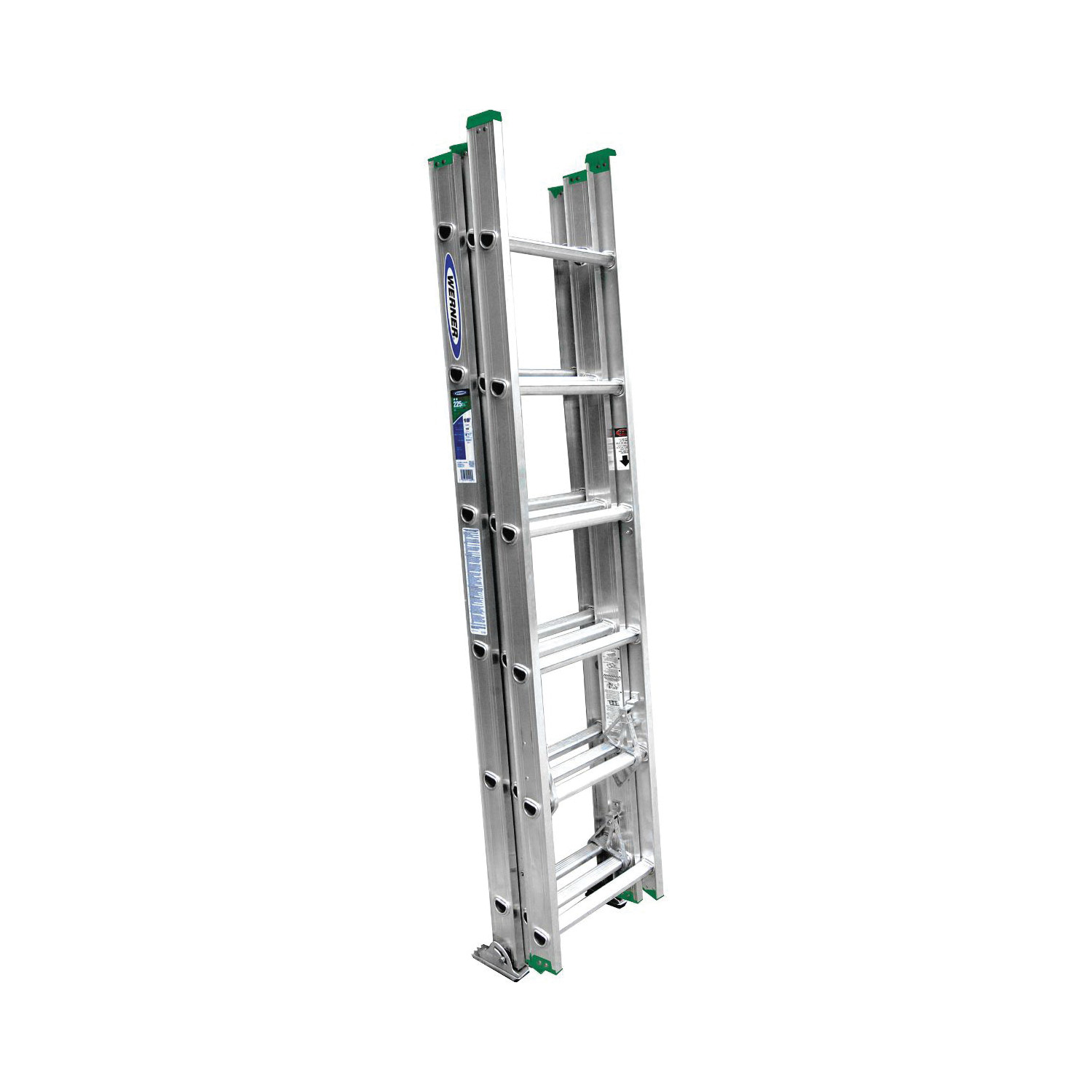

- Compact design retracts to 6 ft 3 in, 2 ft shorter than a conventional, 2 section 16 ft extension ladder
- Same usable length as a conventional 2 section 16 ft ladder
- Easy to maneuver around corners and through doors
- Versatile use indoors or outdoors
- More overlapping rung locations for improved foot comfort

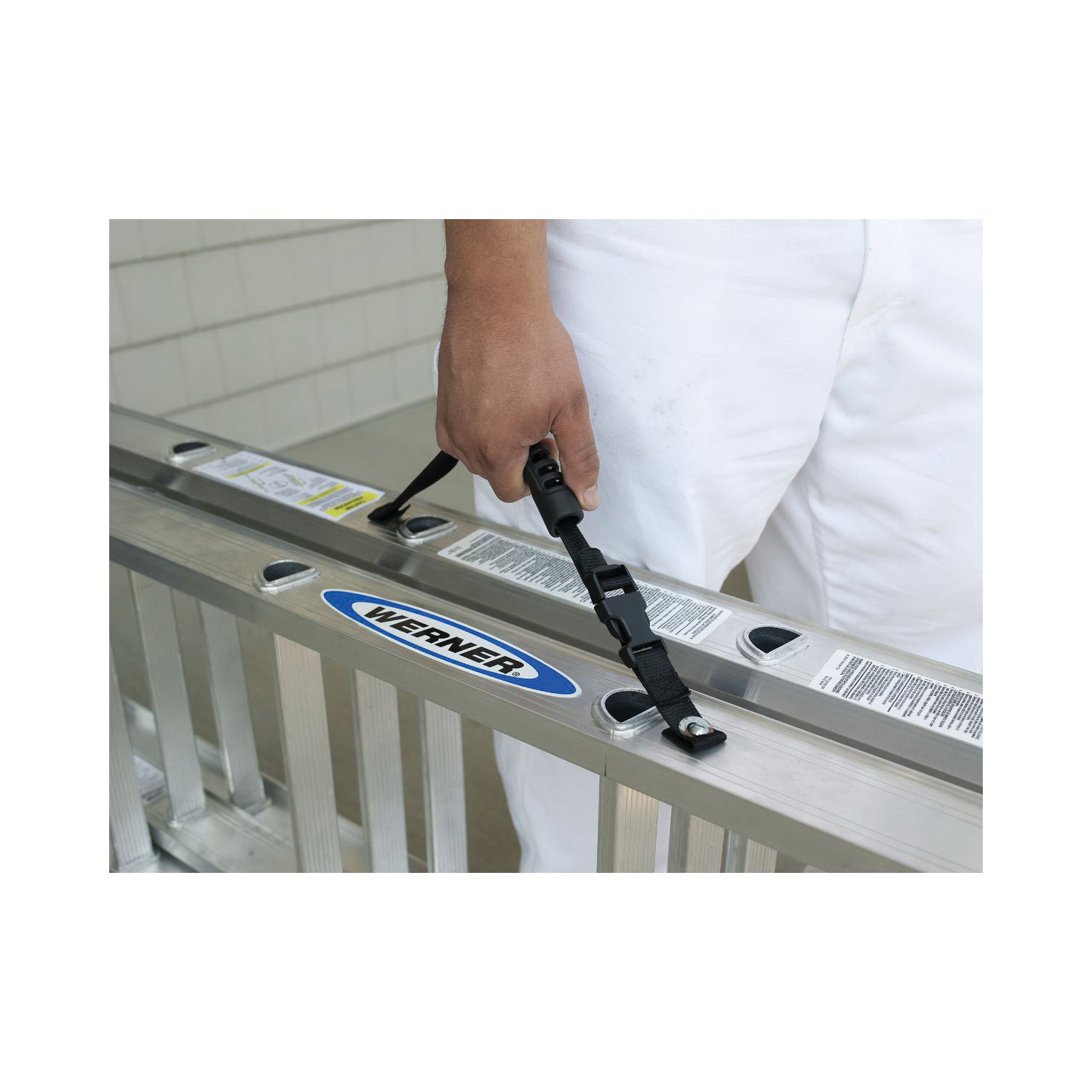

- Convenient carry handle
- Exclusive ALFLO® rung joint means TWIST-PROOF® performance
- 1-1/2 in slip resistant TRACTION-TRED® D-rungs
- Durable extruded rung locks are spring loaded to operate smoothly
- Mar resistant end caps
- Heavy duty modified I-Beam side rails
- Durable shoe rests flat on slip resistant pad or is held in spur position with SHU-LOK® feature
- 15 ft H reach

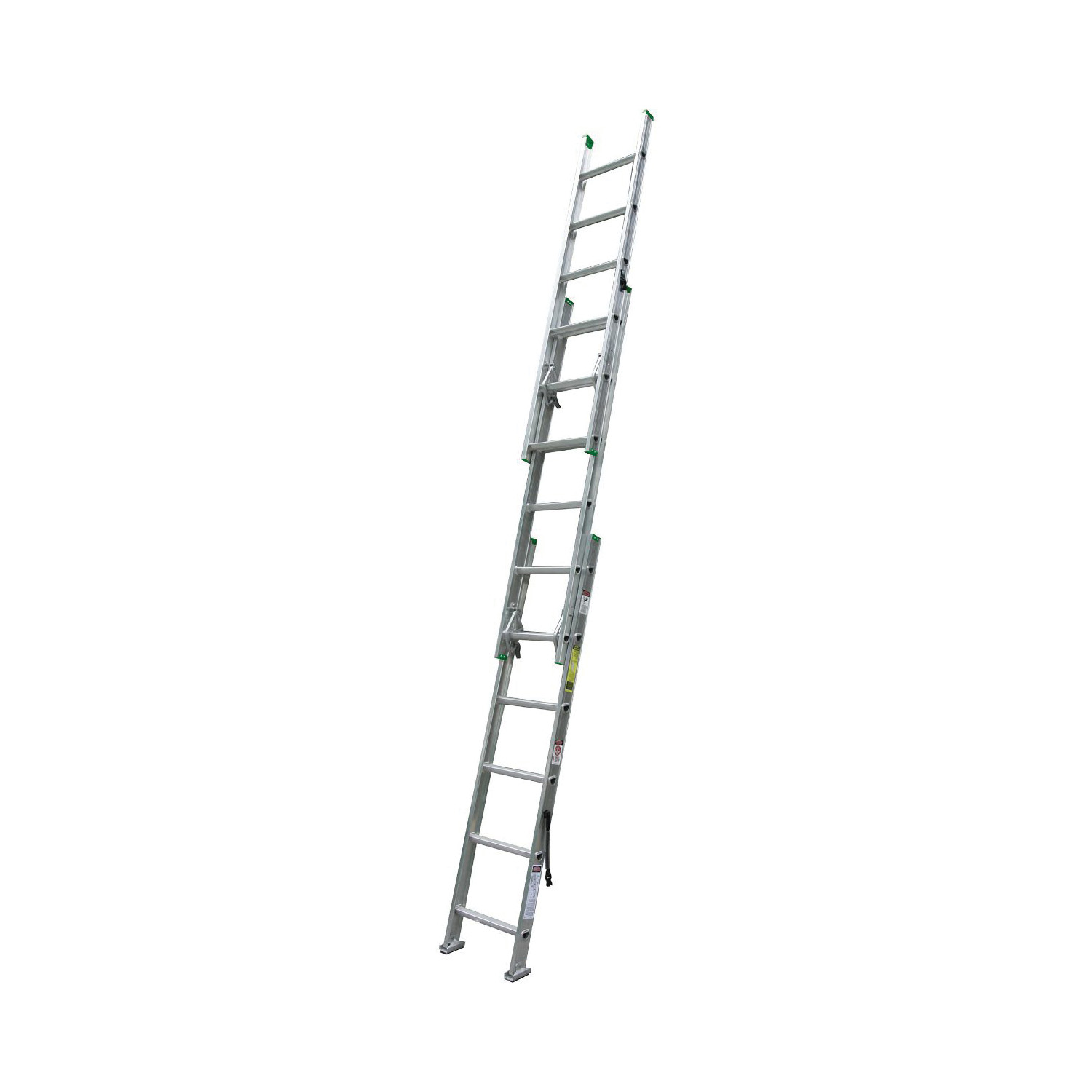

- 13 ft L maximum open extended
- Slip resistant pad foot material
- 3 sections
- 6 ft L approximate closed
- 3 in rails
- 1 in flange
- 1-3/4 in rung
| Competitor Name | Competitor Part Number |
|---|---|
| Fastenal | 2113572 |
-
UNSPSC30191501
-
Standards/ApprovalsANSI A14.2 (2007)|OSHA Compliant
