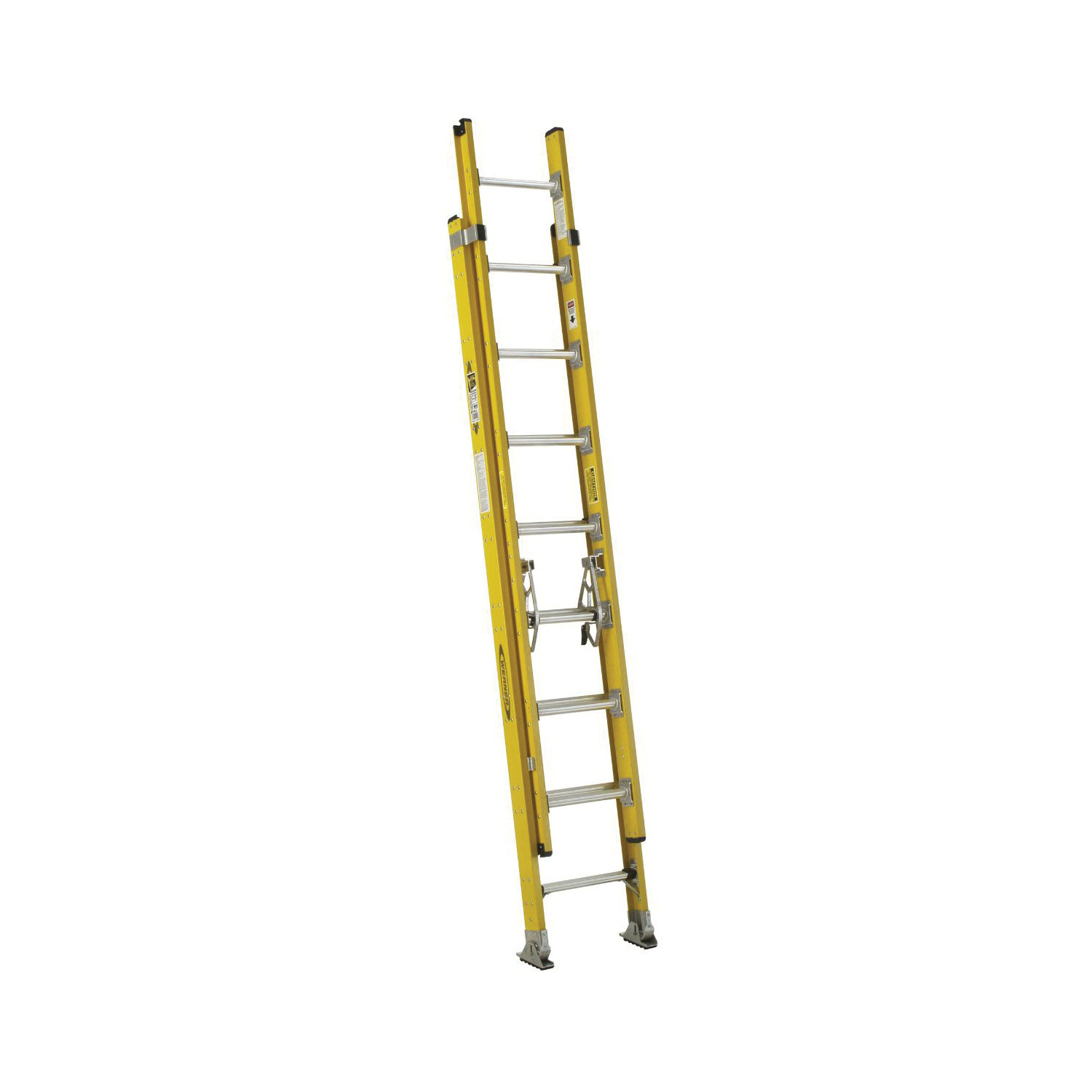

WERNER® D7116-2 D7100-2 D-Rung Multi-Section Extension Ladder, 16 ft OAL, 375 lb Load, 12 in Adjustable Increments, Fiberglass, Type IAA
The D7116-2 extension ladder boasts a duty rating of 375 pounds and features the exclusive ALFLO® rung joint that guarantees TWIST-PROOF® performance. External guides at top of base section help secure the interlocking side rails. Pre-pierced holes at the top of the fly section allow for easy field installation of accessories. The plate and rung assembly are riveted at four points to each side rail. The TRACTION-TRED® D-rungs are slip resistant and the durable rail shield and shoe bracket protects the rail from damage.
-
BrandWERNER®
-
UPC051751012828
-
Manufacturer Part NumberD7116-2
-
CountryUSA
-
Load Capacity375 lb
-
MaterialFiberglass
-
Rail TypeNon-Conductive/Interlocking
-
Maximum Working Length13 ft
-
TypeD-Rung Multi-Section
-
ANSI CodeType IAA
-
Adjustable Increments12 in
-
Section Length8 ft
-
SeriesD7100-2
-
Shoe TypeDual Action Shu-Lok®
-
Outside Shoe Base Width19 in
-
Overall Length16 ft
- Exclusive ALFLO® rung joint means TWIST-PROOF® performance
- 1-1/4 in slip resistant TRACTION-TRED® D-rungs
- Plate and rung assembly are riveted at four points to each side rail to allow for rung replacement
- Slip resistant TRACTION-TRED® D-rungs
- Pre-pierced holes for easy field installation of accessories
- Durable rail shield and shoe bracket protects rail from damage
- Dual action feet with slip resistant pad and spur plate for use on hard or penetrable surfaces
- Mar resistant molded end caps
- Ideal for utility and telecommunication industries
- 16 ft H reach
- 13 ft L maximum open extended
- Slip resistant pad foot material
- 2 sections
- 8 ft L approximate closed
- 3-5/16 in rails
- 1-3/16 in flange
- 1-5/8 in rung
- 16-1/8 in W fly
| Competitor Name | Competitor Part Number |
|---|---|
| Fastenal | 99298906 |
-
UNSPSC30191501
-
Standards/ApprovalsANSI A14.5 (2007)|OSHA Compliant
