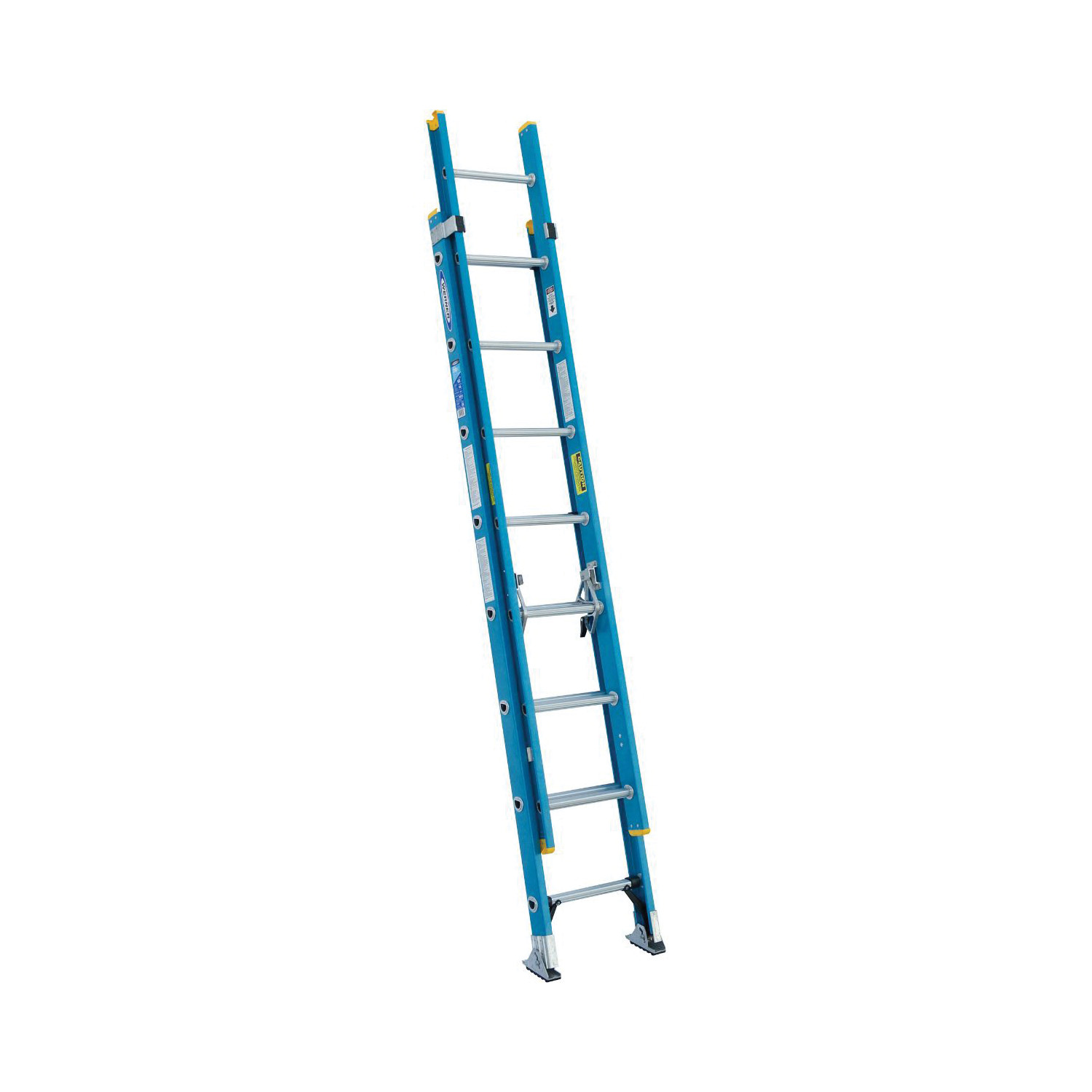

WERNER 16' 250# TYPE-1 F/GLS EXT/LADDERS WER D-6016-2
The D6016-2 16 ft fiberglass extension ladders have non-conductive side rails and a duty rating of 250 pounds. The TRACTION-TRED® D-rungs are slip resistant and the side rails are interlocking. The rail shields protect the bottom of the rail and the SHU-LOK® shoe pivots easily for use on hard or penetrable surfaces. The exclusive ALFLO® rung joint guarantees TWIST-PROOF® performance.
-
BrandWERNER®
-
UPC051751028553
-
Manufacturer Part NumberD6016-2
-
CountryUSA
-
Load Capacity250 lb
-
MaterialFiberglass
-
Rail TypeNon-Conductive/Interlocking
-
Maximum Working Length13 ft
-
TypeD-Rung Multi-Section
-
ANSI CodeType I
-
Adjustable Increments12 in
-
Section Length8 ft
-
SeriesD6000-2
-
Shoe TypeSwivel
-
Outside Shoe Base Width18-1/8 in
-
Overall Length16 ft

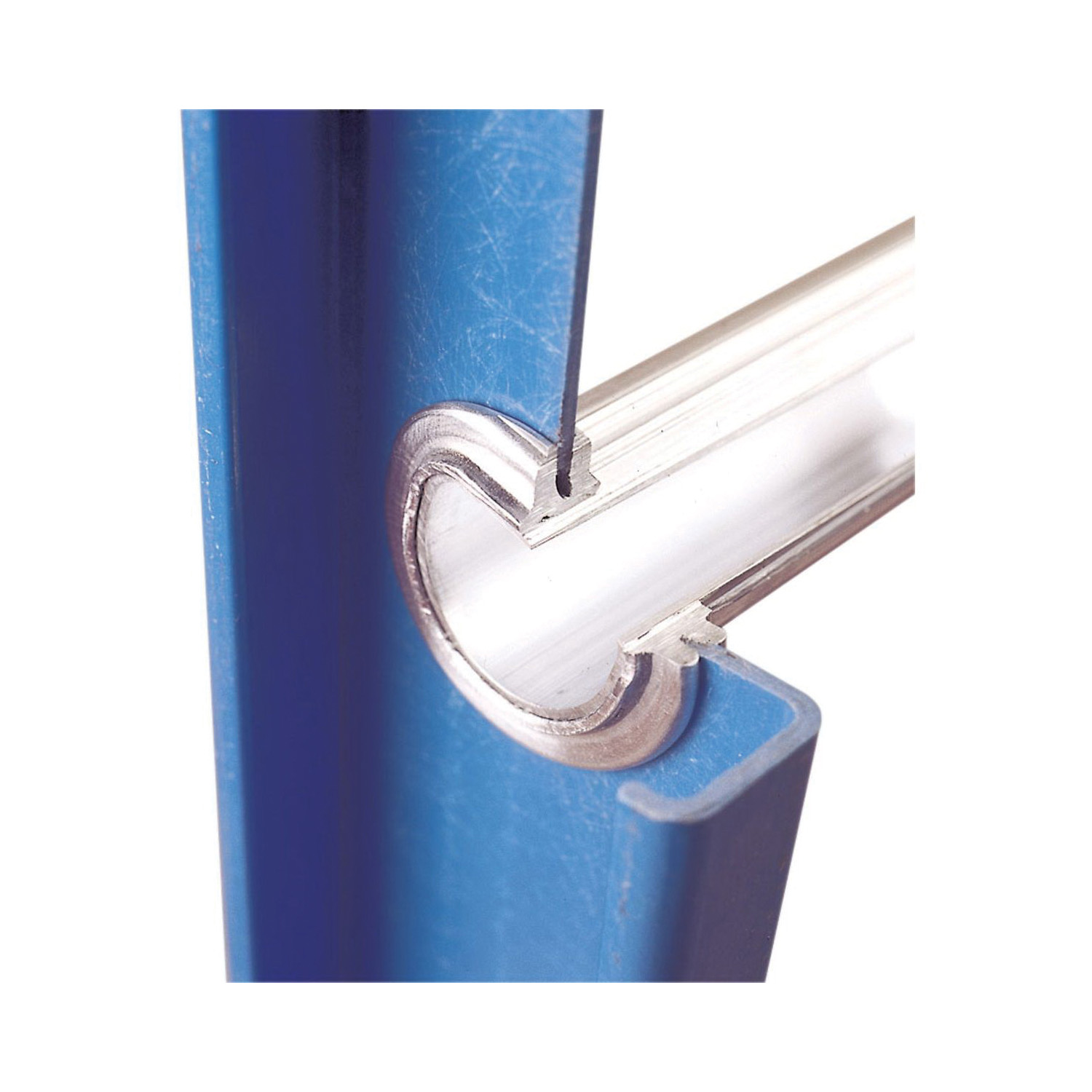

- Exclusive ALFLO® rung joint means TWIST-PROOF® performance
- 1-1/2 in slip resistant TRACTION-TRED® D-rungs
- Interlocking side rails with internal rail guides on bottom of fly section securely connect rails

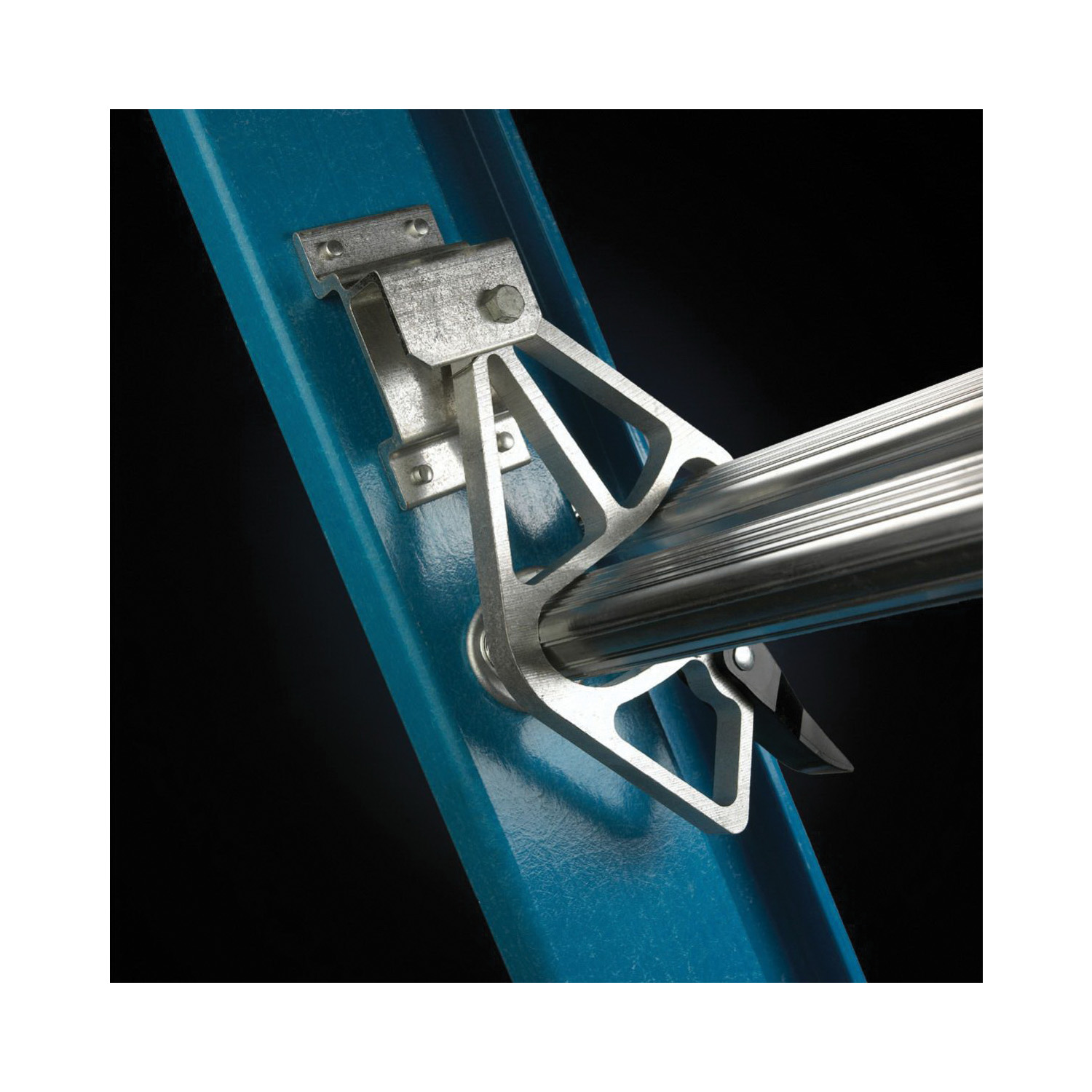

- Durable extruded rung locks are spring loaded to operate smoothly
- External guides at top of base section securely interlock rails

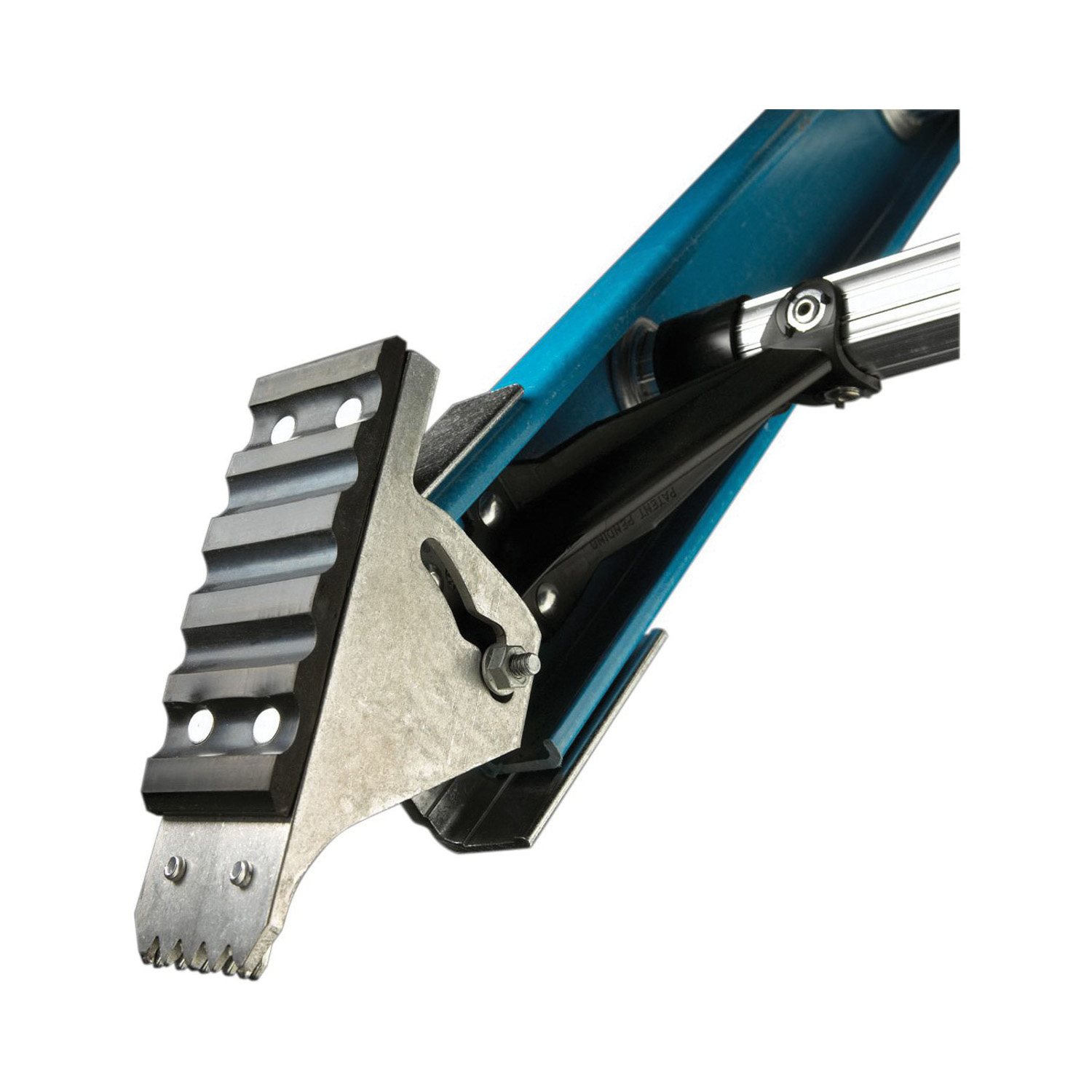

- Combination rail shield bracket and shoe with SHU-LOK® and slip resistant pad
- Internal guides on bottom of fly section securely interlock rails
- Molded rung braces on bottom step for increases durability
- Mar resistant molded end caps
- 16 ft H reach
- 13 ft L maximum open extended
- Slip resistant pad foot material
- 2 sections
- 8 ft L approximate closed
- 3-3/8 in rails
- 1-3/16 in flange
- 1-1/2 in rung
- 15-3/4 in W fly
| Competitor Name | Competitor Part Number |
|---|---|
| Fastenal | 2113600 |
-
UNSPSC30191501
-
Standards/ApprovalsANSI A14.5 (2007)|OSHA Compliant
